Product
Echo 4
Finish
Silver anodized
Stainless steel
Power/Control
DMX-512A and RDM compatible
Light color/CCT
RGBW (W 5700 K)

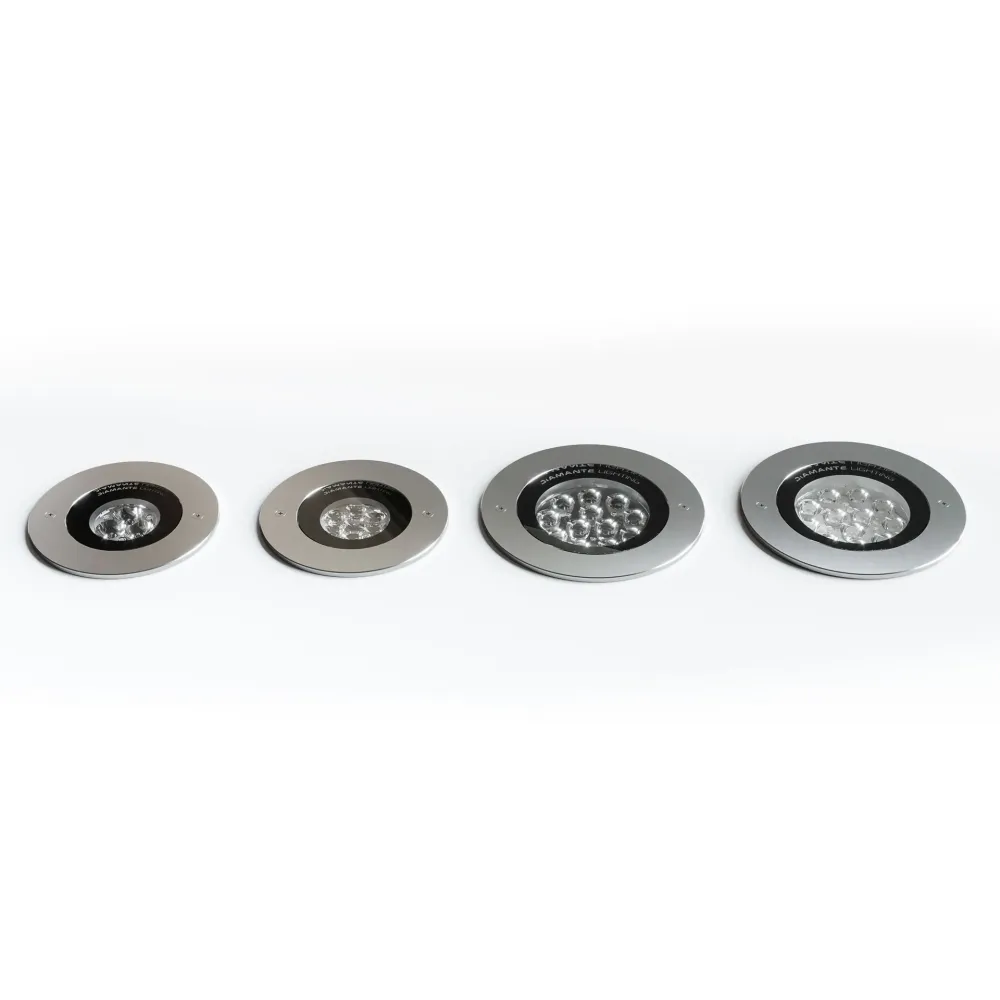

Optics
10°
30°
40° x 15°
15° x 40°
About the product

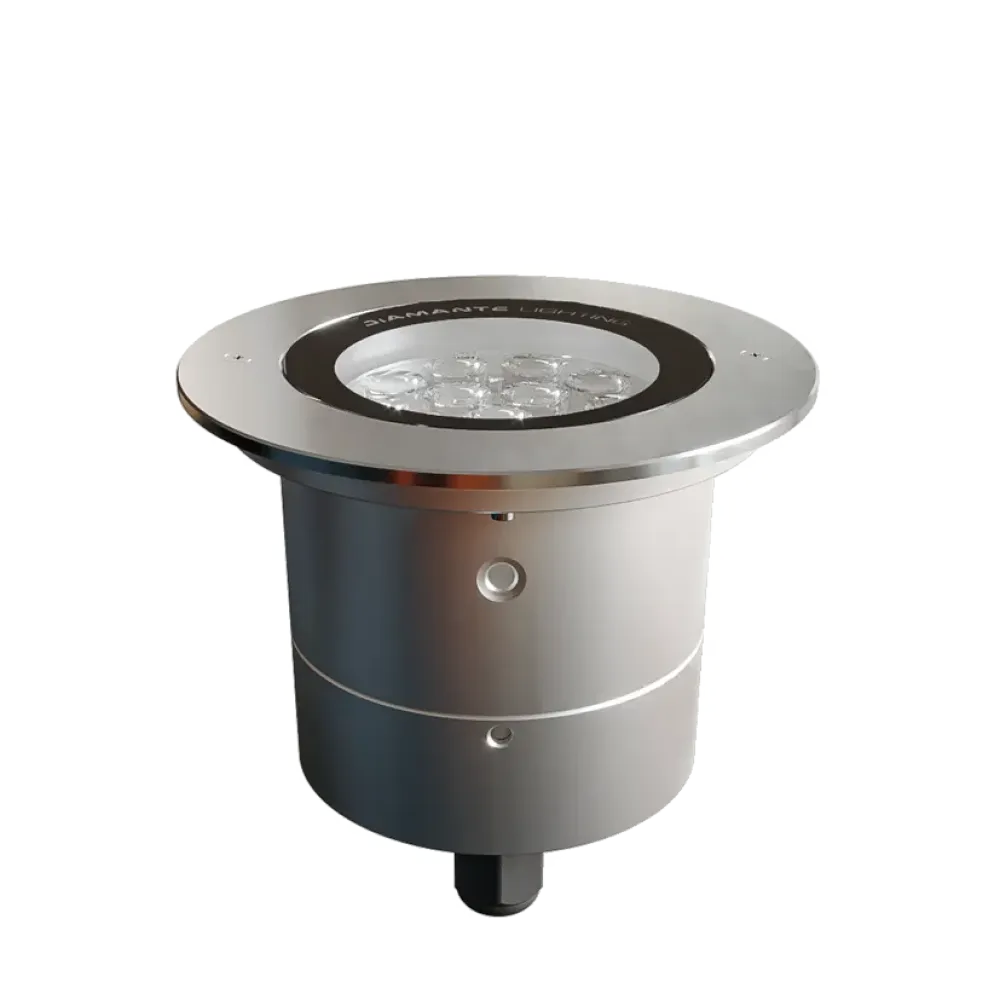

In-ground-recessed luminaires for up light illumination, featuring high power LEDs.Quattro angoli di emissione ad alta precisione.Installation-friendly.Controller or DMX card on board. Separate power supply.
Product specifications
| IP rating | IP66/67 |
| Management interface | DMX-512A and RDM-compatible |
| Colour temperature/CCT | RGBW (W=5700K) |
| Beam angle | 10°, 30°, 40°x15°, 15°x40° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | ground-recessed |
| Finishing | stainless steel |
| Construction | machine-crafted aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, nickel-plated brass gland connector, waterstop system |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 48 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 2225 lm |
| Light efficiency | 91.4 lm/W |
| Delivered flux | 1710 lm |
| Delivered efficiency | 64.5 lm/W |
| Input power | 27 W |
| Net weight | 0.95 kg |
