Product
Day 10
Finish
Silver anodized
Power/Control
On/Off optional dimming via accessories
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics
Specific emission
About the product

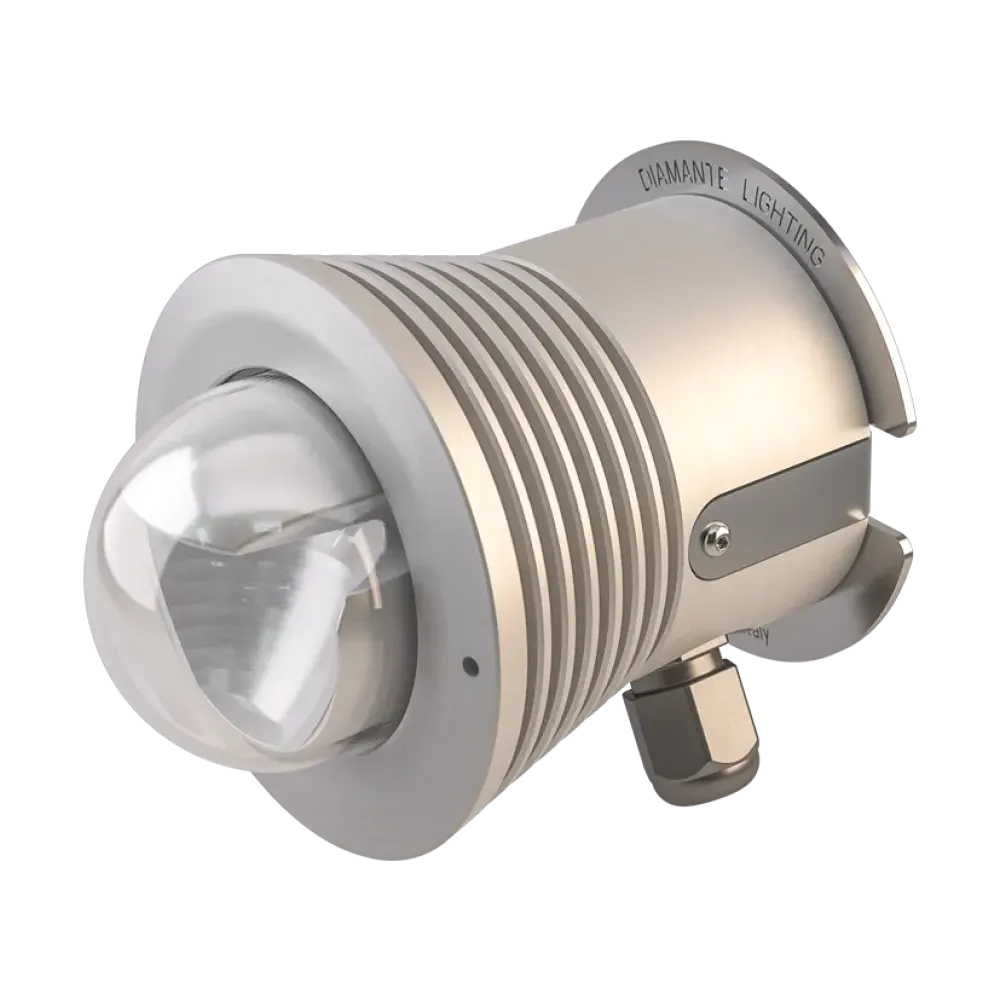

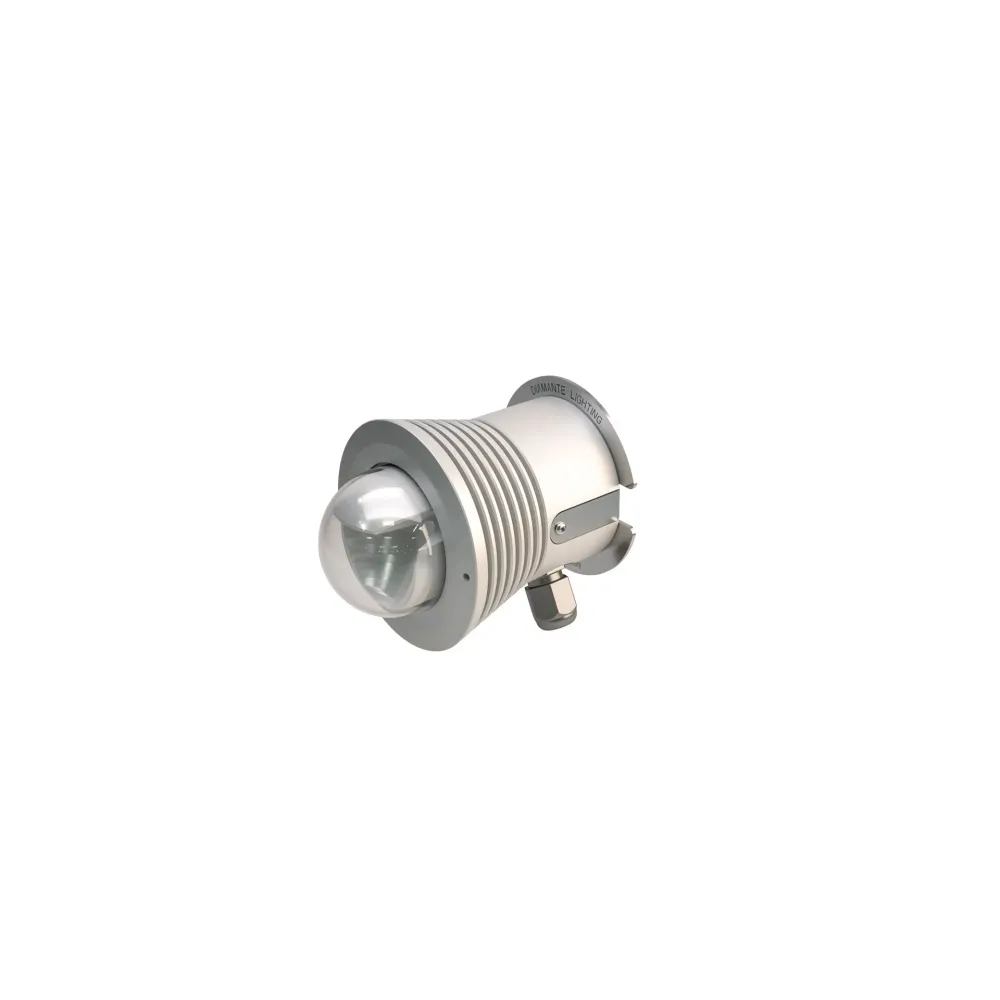

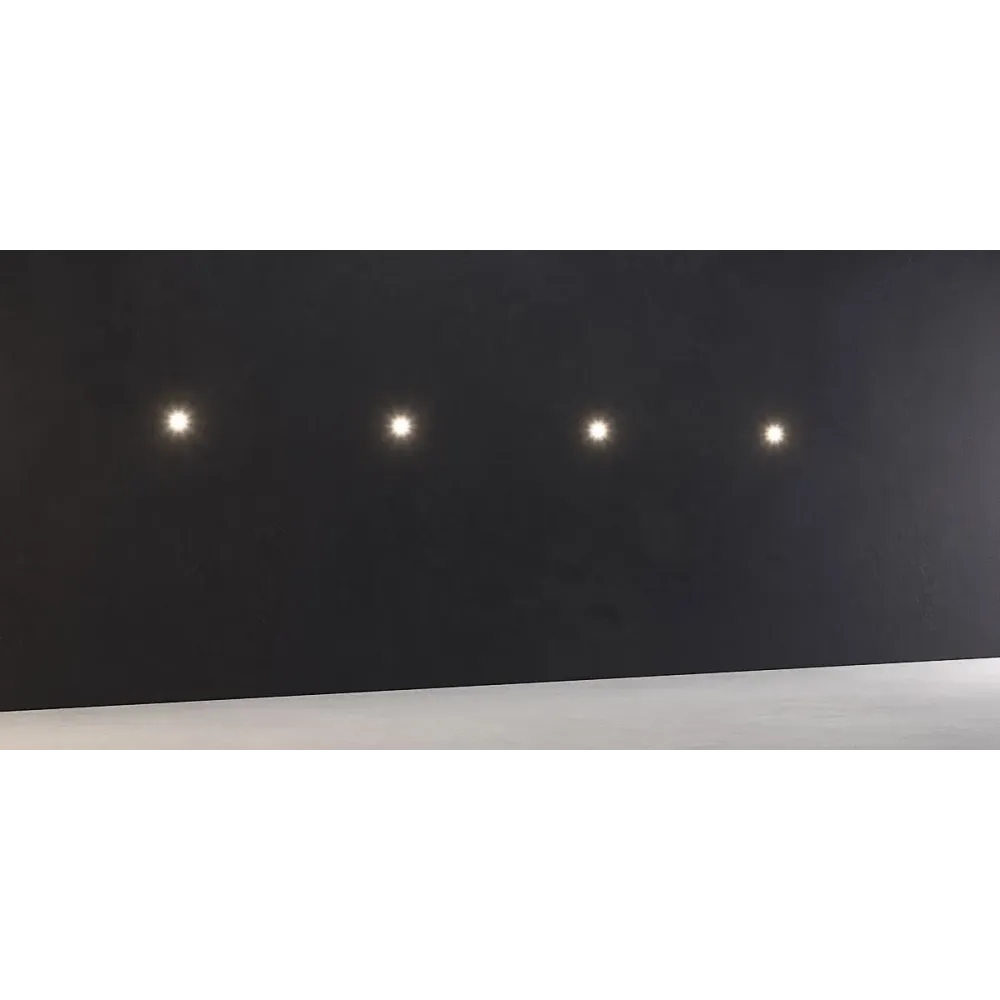

Surface-mounted, lightpoint for accent and signal lighting, featuring high power LEDs and reflector for asymmetric light distribution.Installation-friendly.Remote power supply unit.Regulator on board
Product specifications
| IP rating | IP66/67 |
| Management interface | On/Off, dimmable (accessories) |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | specific emissions |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | wall |
| Finishing | Silver anodized |
| Construction | machine-crafted aluminium alloy, UV-protected polycarbonate cover, nickel-plated brass |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 24-48 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >100 000 h L70 B10 at 25 °C |
| Source flux | 890 lm |
| Light efficiency | 155.9 lm/W |
| Delivered flux | 740 lm |
| Delivered efficiency | 119.2 lm/W |
| Input power | 6.5 W |
| Net weight | 0.9 kg |
