About the product

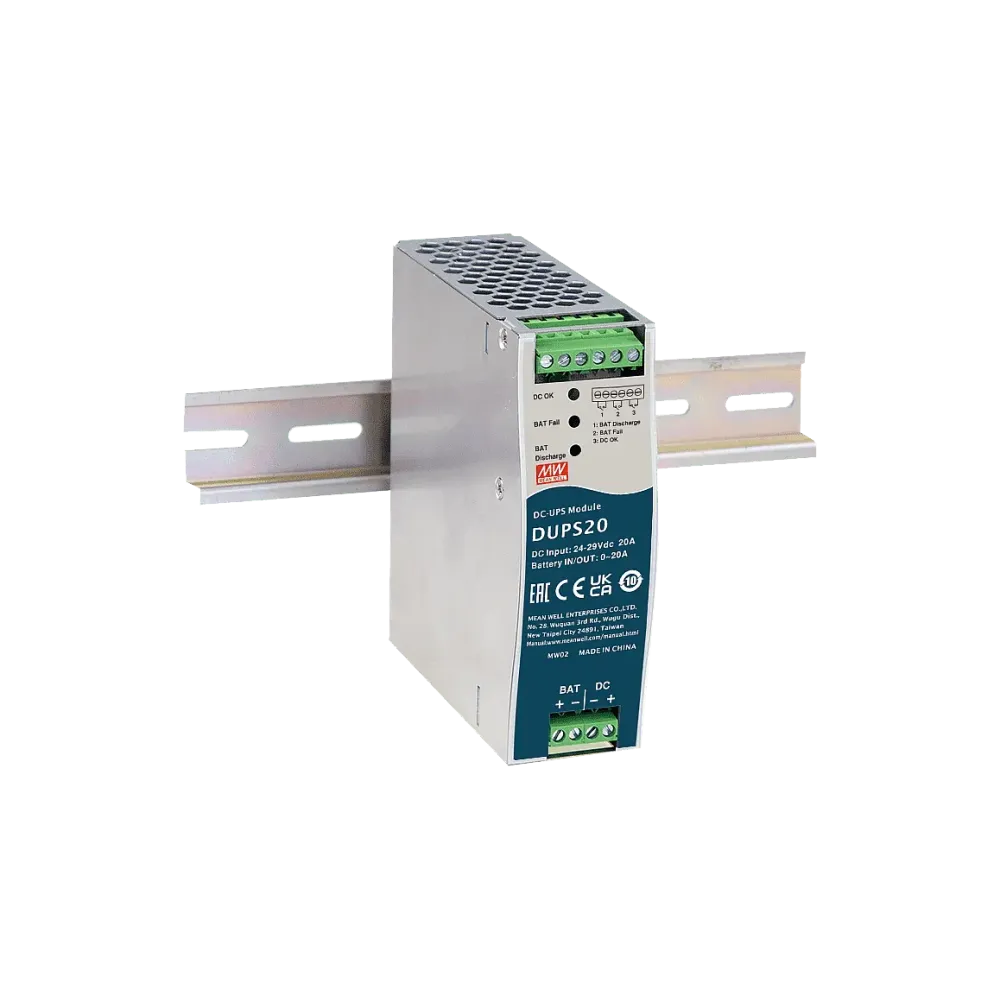

DUPS20 is a 20A UPS controller for DIN rail mounting. Connected in parallel to the DC voltage and a lead-acid battery, mains failures can be effectively bridged. As soon as a drop in the 24V voltage is detected, DUPS20 immediately switches to the connected battery pack and prevents an interruption in the supply voltage.
Technical data
- DC UPS controller
- Suitable for 24V systems up to 20A
- 2A charging current
- Recommended battery capacity of lead batteries 4AH to 135AH
- Diagnostic function and monitoring for DC OK, battery discharged, battery fault
Product specifications
| Width | 40 mm |
| Manufacturer | MEAN WELL |
| Height | 125.2 mm |
| Depth | 113.5 mm |
| Certificates | EAC TP TC 004, UL62368-1 |
| Product series | DUPS |
