Product
Aqa 06
Finish
Stainless steel
Power/Control
On/Off optional dimming via accessories
By remote device
Light color/CCT
2200 K
3000 K
4000 K
5700 K
RGB
Optics
10°
30°
50°
12° x 35°
35° x 12°
80°
About the product

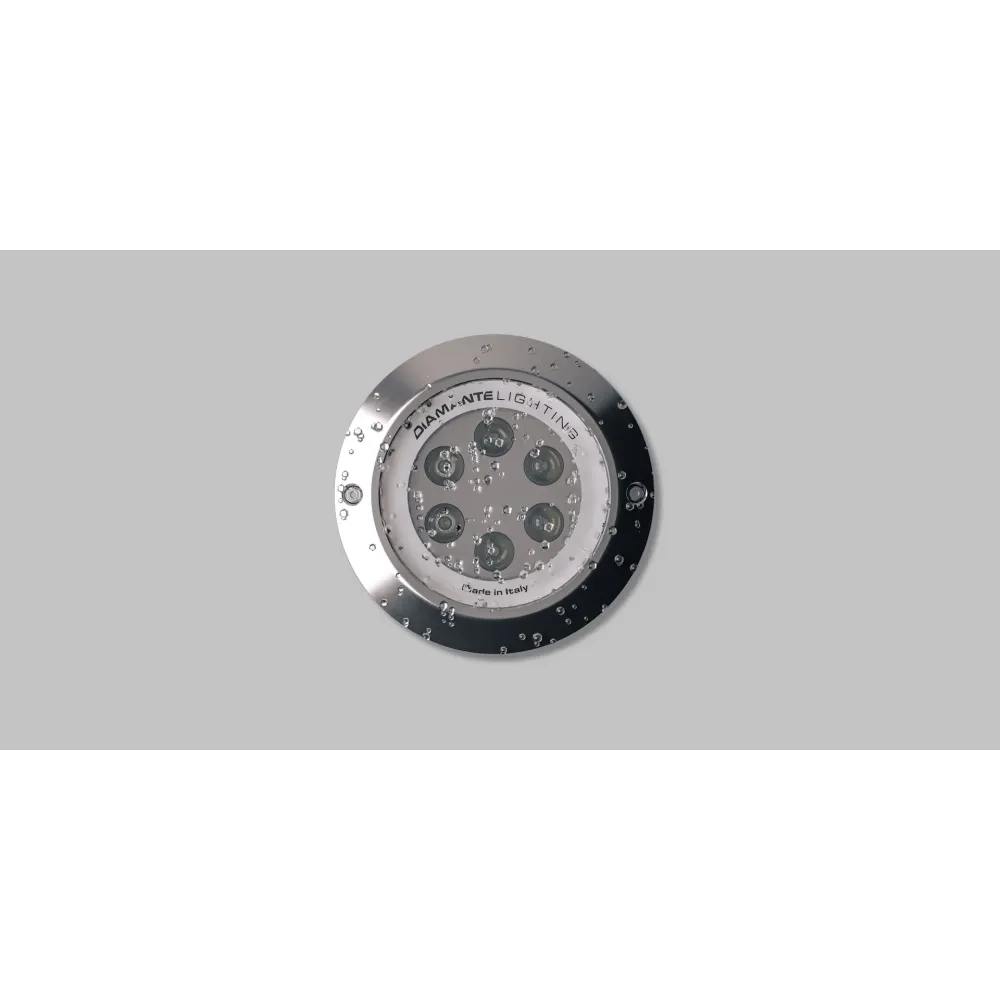

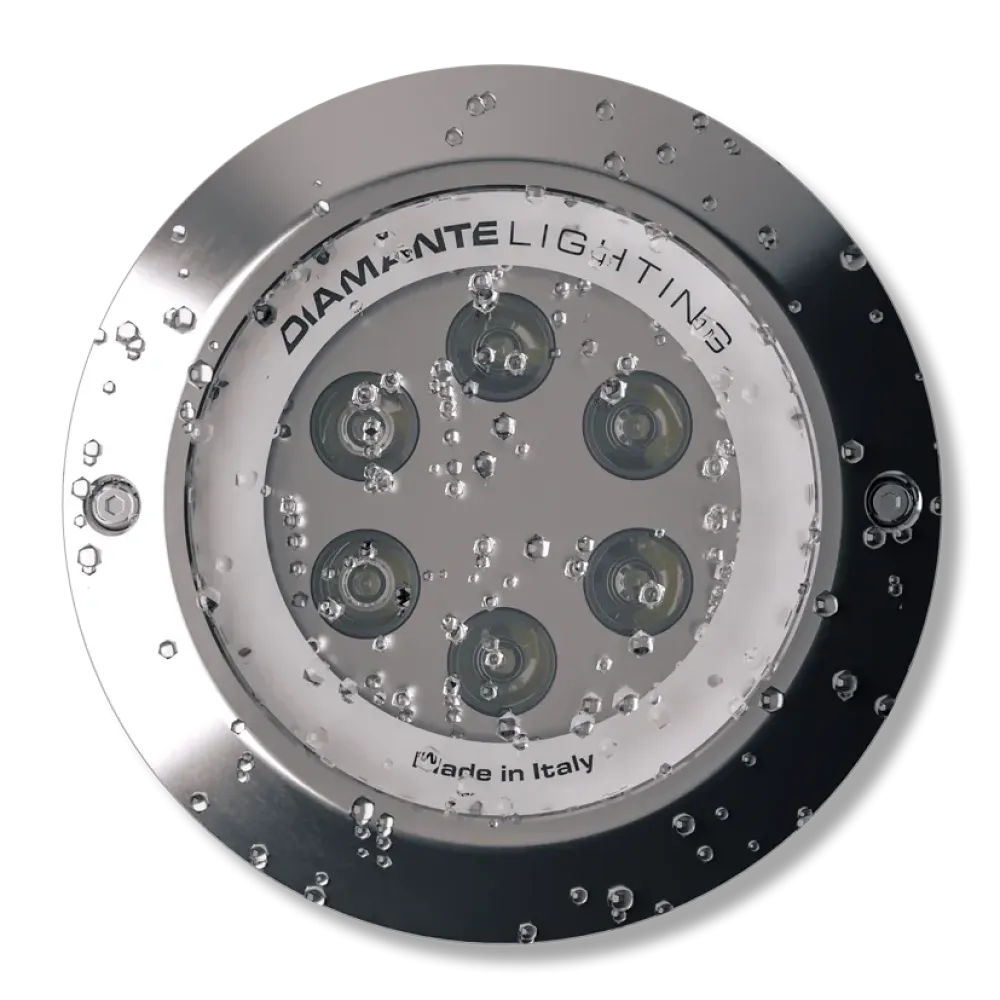

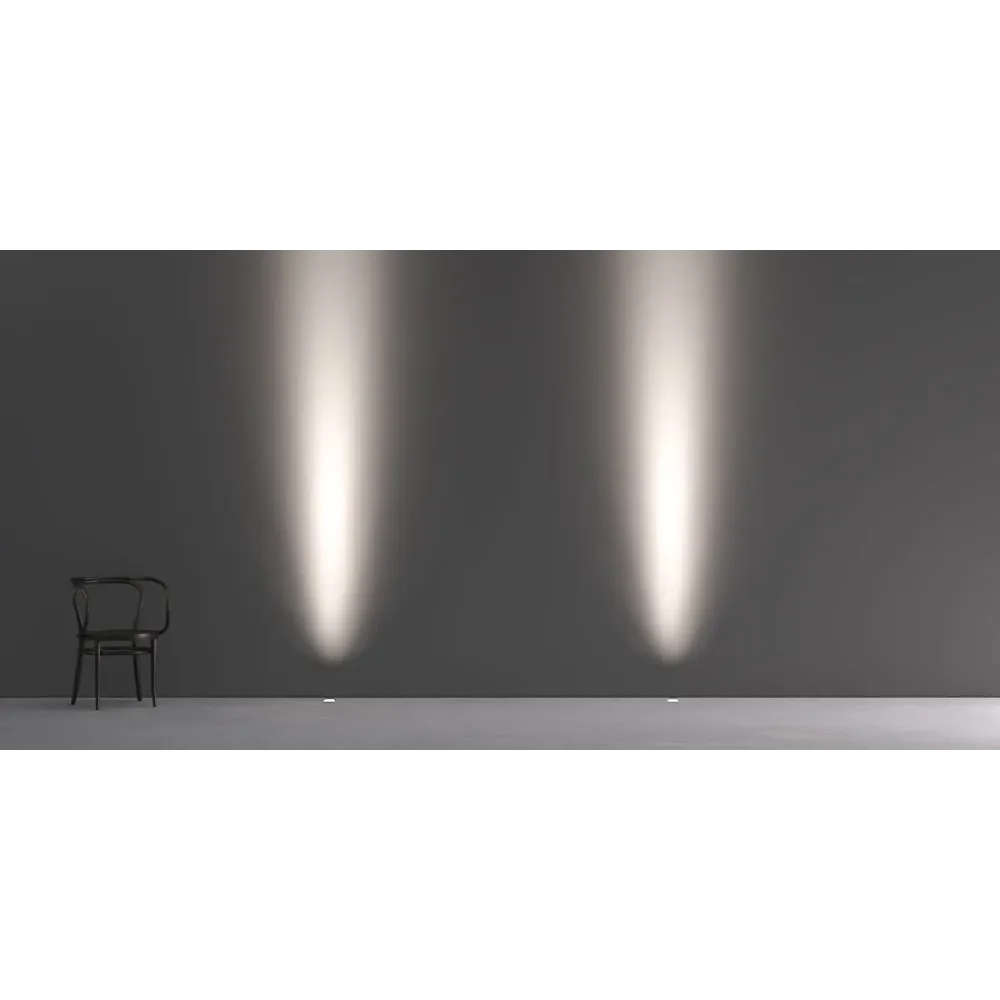

Recessed permanent immersion spotlight for precise accent and general lighting, featuring high power LEDs.Four high-precision beam angles.Installation-friendly.Remote power supply unit.Regulator on boardControll by regulator (RGB version).
Product specifications
| IP rating | IP68 5m |
| Management interface | On/Off, dimmable (accessories) |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 10°, 30°, 50°, 12°x35°, 35°x12°, 80° |
| Operating temperature | 0°C to +50°C (permanent immersion) |
| Storage temperature | -50°C to 80°C |
| Mounting | wall-recessed, permanent immersion |
| Finishing | stainless steel |
| Construction | AISI 316 stainless steel, silicone gasket, tempered extra-clear glass, stainless steel IP68, waterstop system |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 24 V |
| IK rating | 10 |
| Source type | High power LED |
| Source lifespan | >50 000 h L80 B10 at 25 °C |
| Source flux | 1800 lm |
| Light efficiency | 146.3 lm/W |
| Delivered flux | 1365 lm |
| Delivered efficiency | 105.4 lm/W |
| Input power | 14 W |
| Net weight | 1.6 kg |
