About the product

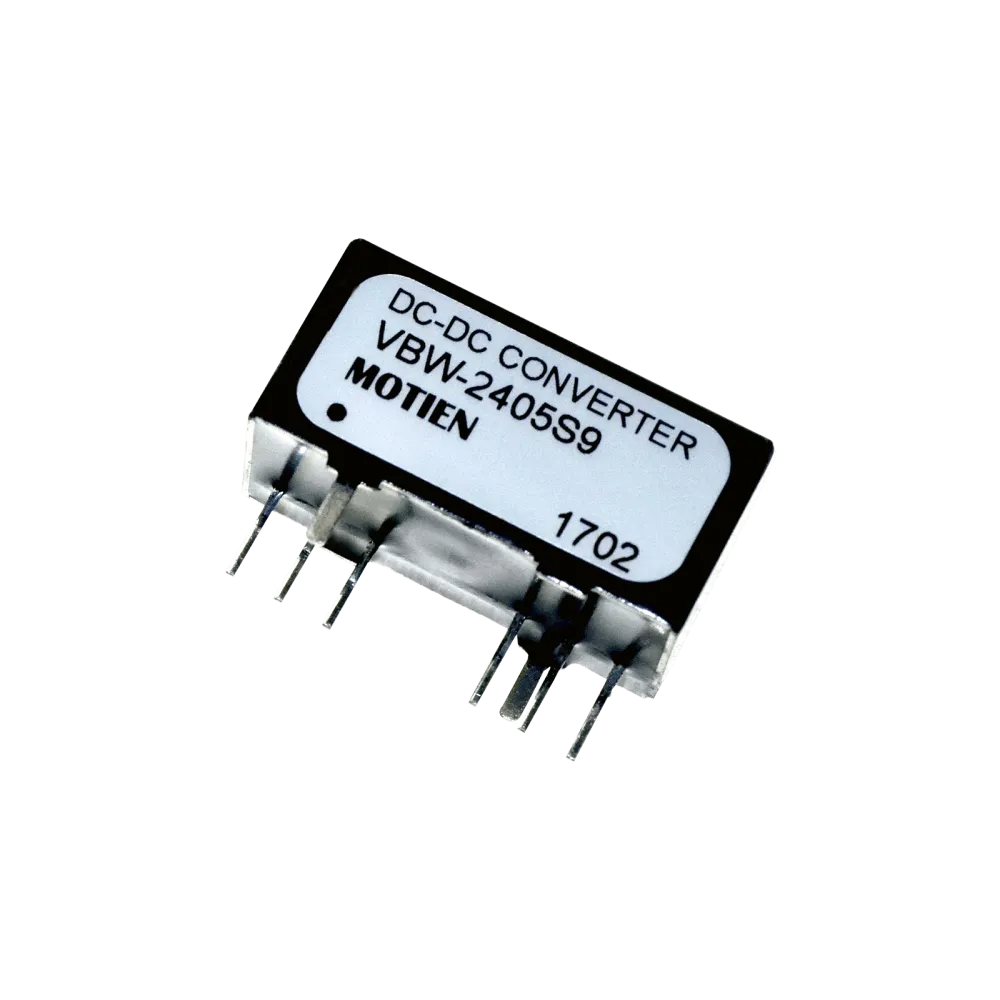

9W DC/DC-Converter, Input 9…36V, Output +/-12V / +/-0.375A
Technical data
- Highest Power Density in 8 Pin SIP Package
- 4:1 wide input voltage range
- Smallest footprint 9Watt Converter
- -40°C until +85°C wide working temperature
- Efficiency to 89%
- Continuous short circuit protection
- 1600Vdc I/O Isolation
- Remote On/Off Control
- 3 Years Warranty
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | Motien |
| Application | ITE/AV |
| Height | 11.2 mm |
| Width | 9.6 mm |
| Length | 21.8 mm |
| Package / case | SIP8 |
| Additional functions | Remote ON/OFF |
| Regulation | Regulated |
| I/O isolation | 1600 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 18-75 V |
| Nominal input voltage (VDC) | 24-72 V |
| Output current | 375 mA |
| Power | 9 W |
| Manufacturer warranty | 3 years |
