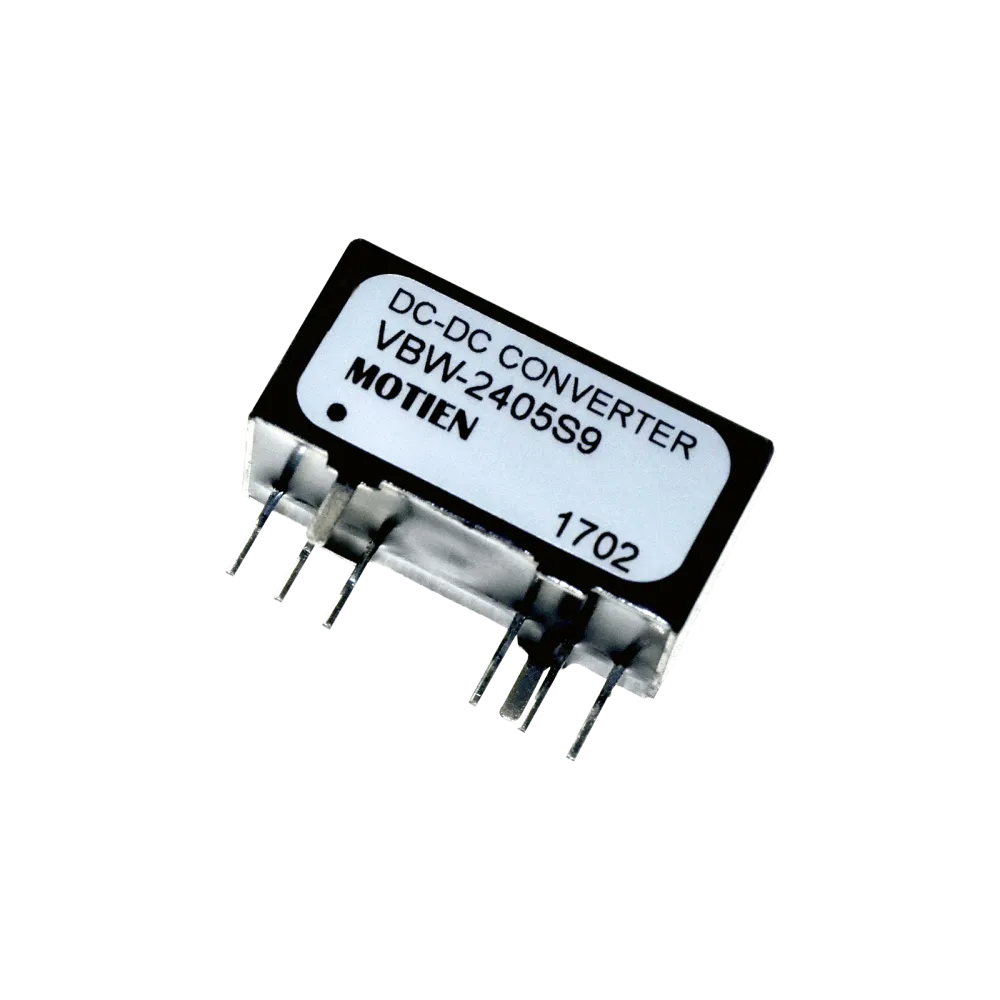

9W DC/DC-Converter, Input 18…75V, Output 9V/1A
Technical data
- Highest Power Density in 8 Pin SIP Package
- Wide 4:1 Input Range
- Smallest Footprint 6W Converter
- No minimum load required
- 1500Vdc Isolation
- Continuous Short Circuit Protection
- Efficiency up to 88%
- Operation Temperature Range -40°C to +71°C
- Remote ON/OFF Control
- Dimension 21.85 x 9.2 x 11.1mm (L x W x H)
- 3 years warranty
- Manufacturer Motien
Option: Suffix "H" = 3000Vdc Isolation
Product specifications
| Output voltage (VDC) | 9 V |
| Manufacturer | Motien |
| Application | ITE/AV |
| Height | 11.2 mm |
| Width | 9.6 mm |
| Length | 21.8 mm |
| Package / case | SIP8 |
| Additional functions | Remote ON/OFF |
| Regulation | Regulated |
| I/O isolation | 1600 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 18-75 V |
| Nominal input voltage (VDC) | 24-72 V |
| Output current | 1000 mA |
| Power | 9 W |
| Manufacturer warranty | 3 years |
