About the product

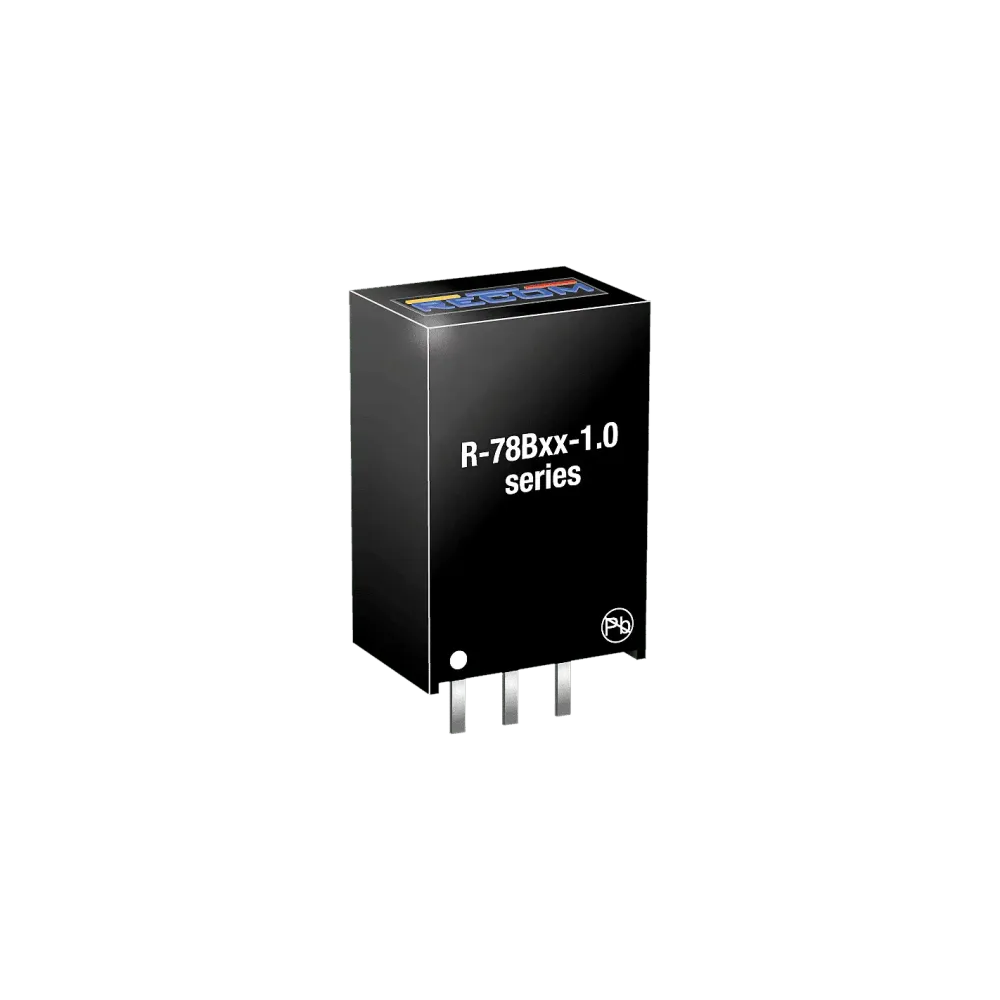

The highly efficient switching regulators of the R-78Bxx-1.0 series are ideal as a replacement for the 78xx linear regulators and are pin-compatible. The efficiency of up to 97% means that very little energy is wasted in the form of heat, so there is no need for heat sinks with their additional space and mounting costs. The L version with 90° pins allows direct replacement of lay-flat regulators where height is an important consideration. Low ripple and noise values and a short-circuit input current of typically only 10mA round off the specifications of this versatile converter series.
Technical data
- Efficiency of up to 97%, no heat sinks required
- Pin-out compatible with LM78XX lines
- Low profile (L/W/H=11.5 x 8.5 x 17.5mm)
- Large entrance area
- Short-circuit protection, thermal shutdown
- Low ripple and noise
- "L" version with 90° pins
Product specifications
| Manufacturer | Recom |
| I/O isolation | not isolated |
| Width | 8.5 mm |
| Length | 11.5 mm |
| Nominal input voltage (VDC) | 15-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Height | 17.5 mm |
| Output voltage (VDC) | 9 V |
| Power | 9 W |
| Output current | 1000 mA |
| Design | SIP3 |
Data sheets
