About the product

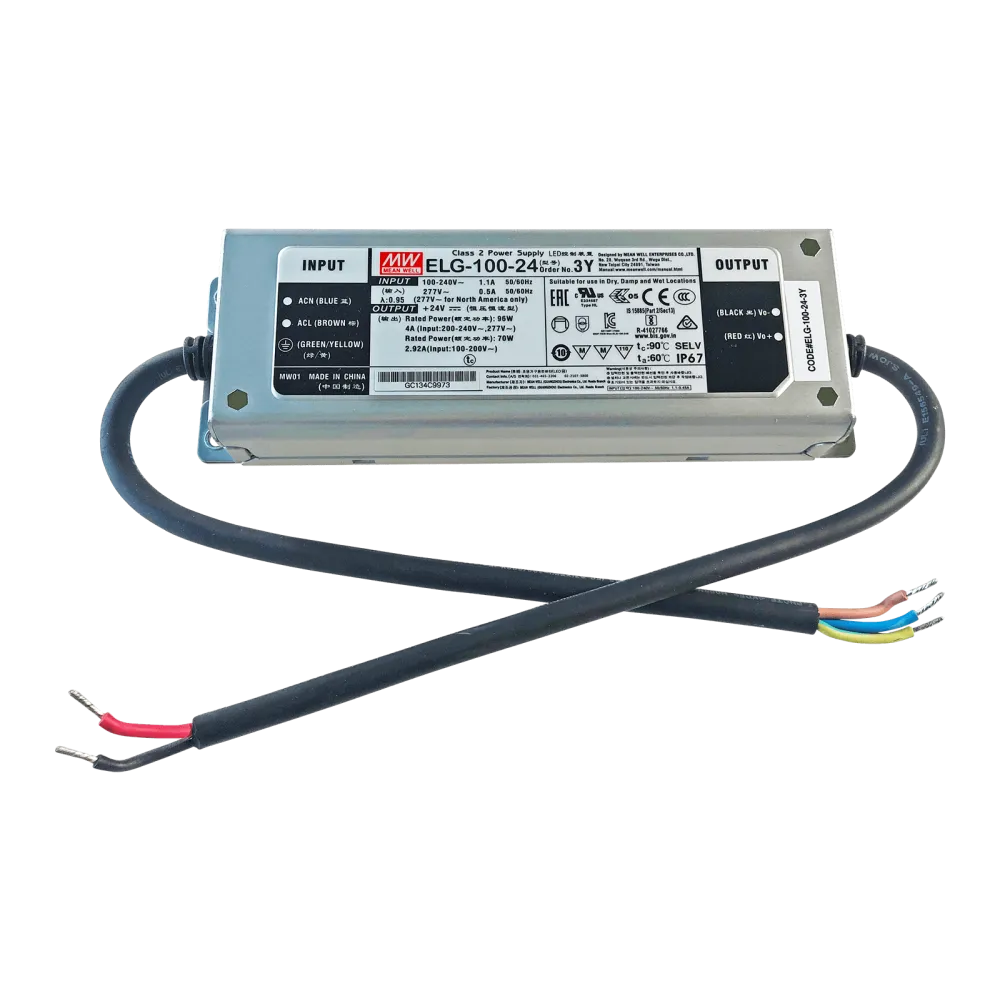

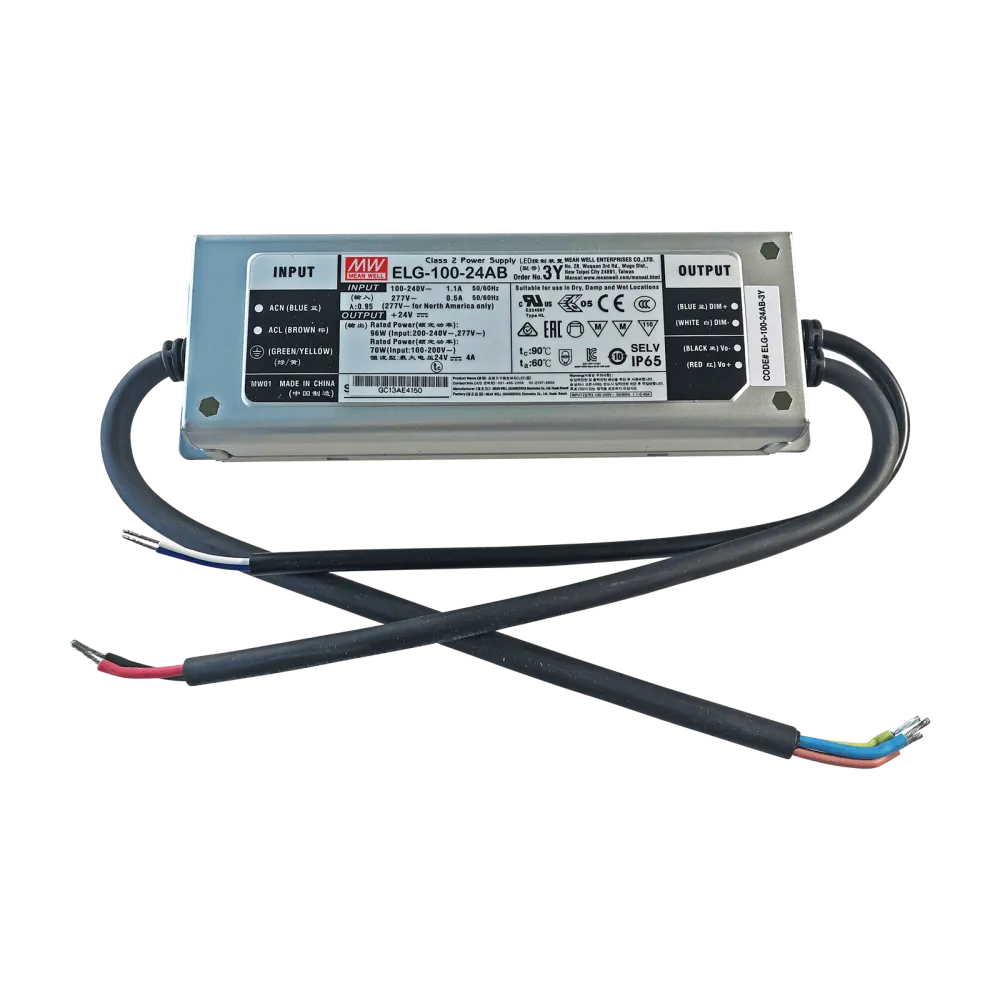

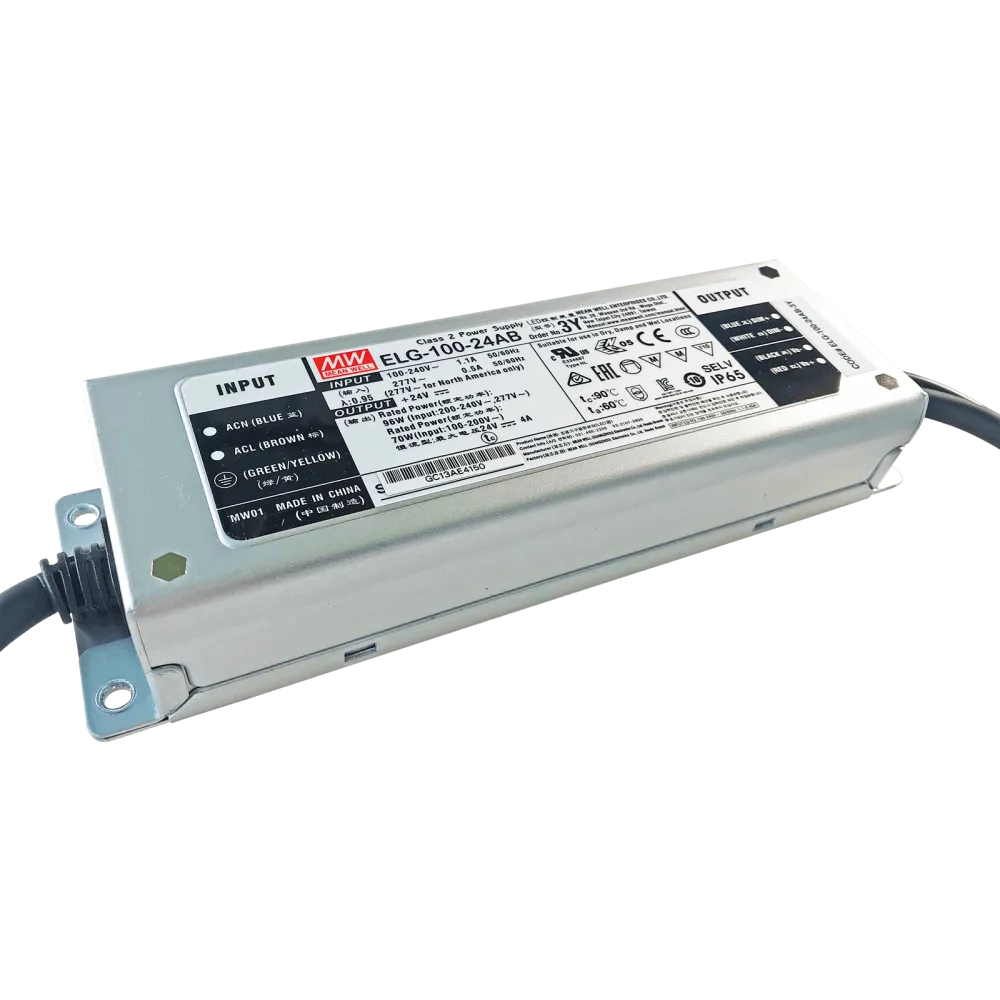

ELG-100-24AB-3Y series is a combination of "A" and "B" type. Current and voltage is adjustable through built-in potentiometer and for external dimming the current level can be adjusted by built-in 3in1 dimming function
Technical data
- 100-305 Vac Input Range (De-rating may be needed under low input voltages)
- Built-in active PFC Function

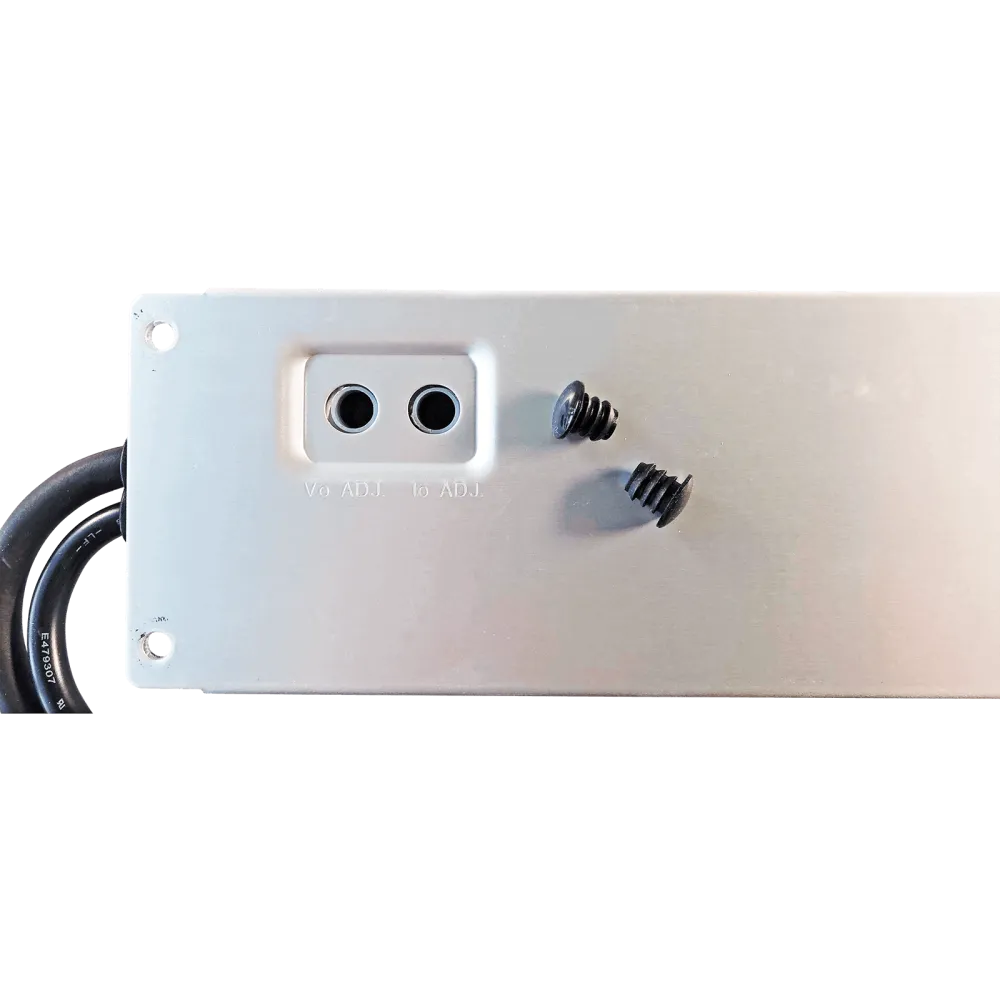

- Output voltage and constant current level can be adjusted through internal potentiometer
- Constant current level can be adjusted through 0-10Vdc / PWM signal or Resistance
- IP65 Design
- Meet 6kV Surge Immunity Level (IEC61000-4-5)
- Fully encapsulated metal housing
- Typical Lifetime 50’000h
- Working Temperature -40°C to +70°C
- Dimensions 199 x 63 x 35.5mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | ELG |
| Input voltage range (VAC) | 110-277 V |
| Additional functions | Current/voltage setting on unit |
| Connection | Cable |
| IP protection | IP65 |
| Height | 35.5 mm |
| Width | 63 mm |
| Length | 199 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Control | Resistor, 0-10V, 1-10V, PWM control signal |
| Channels | 1 |
| Output current | 4 mA |
| Power | 96 W |
| Manufacturer | MEAN WELL |
