About the product

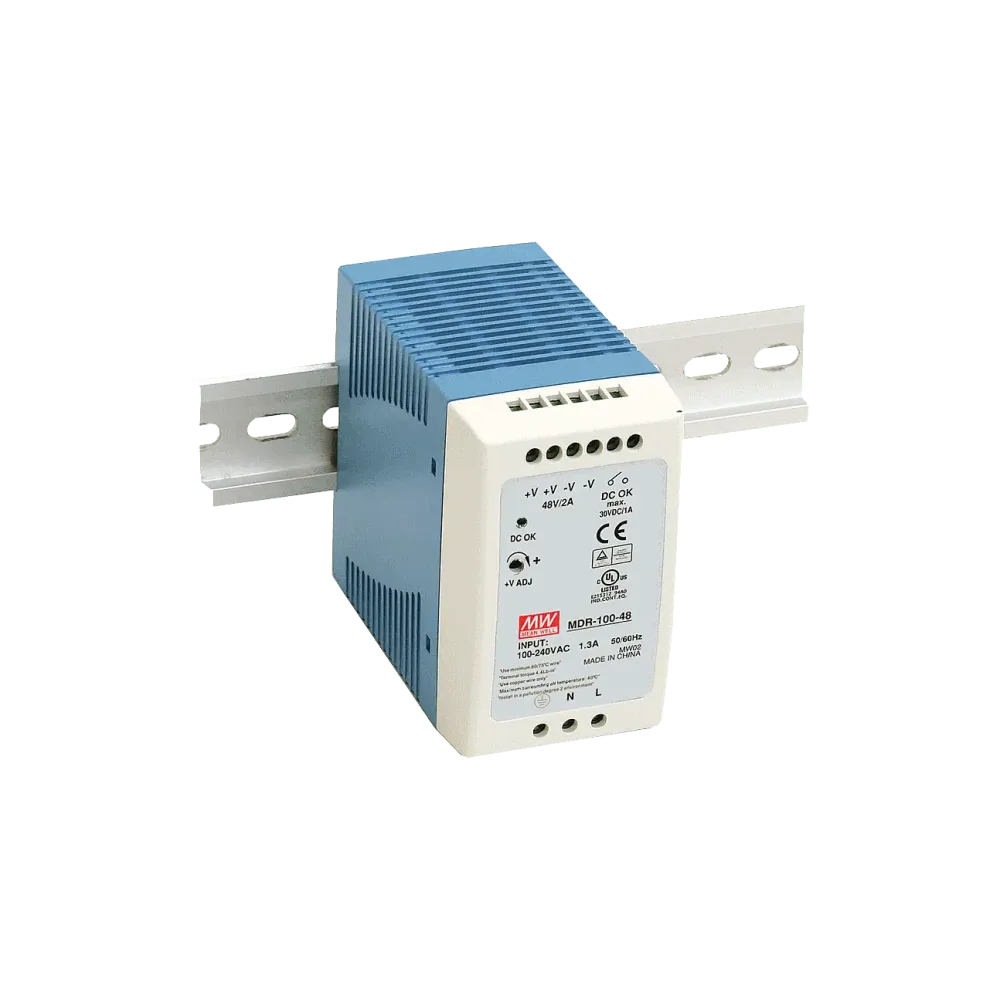

The compact MEAN WELL MDR-100-48 DIN rail power supply unit in a plastic housing saves space in the control cabinet. A DC-OK relay contact is installed for remote monitoring.
Technical data
- No load power consumption 1.0W
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- LED display for DC OK
- DC OK relay contact
- Dimensions 55 x 90 x 100mm (W x H x D)
Product specifications
| Manufacturer | MEAN WELL |
| Overload behaviour | Constant current limiting |
| Product series | MDR |
| Depth | 100 mm |
| Height | 90 mm |
| Status signals | DC OK relay contact |
| Width | 55 mm |
| Output current | 2 mA |
| Power | 96 W |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Certificates | EN62368-1, CNS14336-1, EAC TP TC 004, UL508 |
