About the product

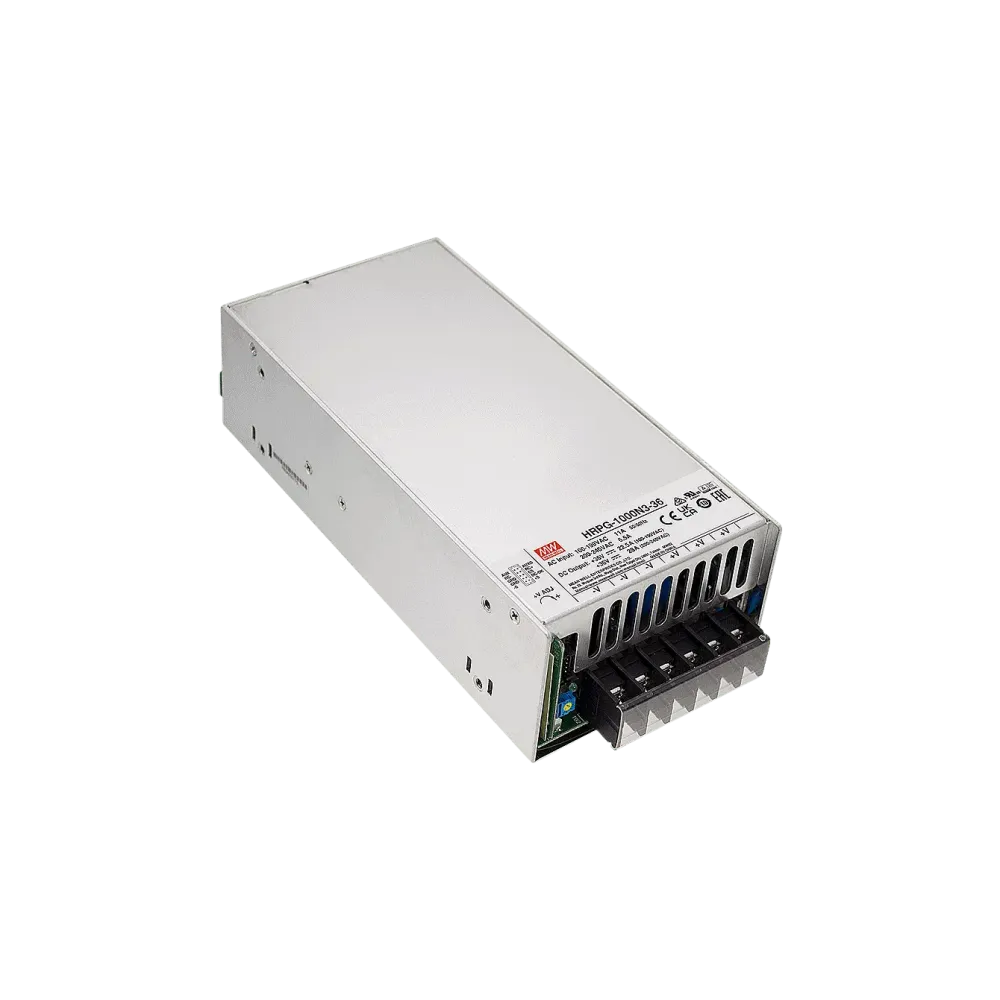

HRPG-1000N3-12 is a 1000W power supply unit in a housing for industrial applications. The power supply delivers up to 2880W of power in the short term, making it easier to start up critical loads with high starting currents, such as motors.

Technical data

Input voltage 90 to 264Vac
Delivers up to 320% peak power in the short term
Remote On/Off
Standby 5V@0.3A
Remote Sense function
Power consumption at no load 0.85W
Current sharing up to 4000W (3+1)
Air cooling with integrated fan
Operating temperature range from -40°C to +70°C
Withstands surge voltages up to 300Vac for up to 5 seconds
Dimensions 218 x 105 x 63.5mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Maximum VDC setting range	14 V
Minimum VDC setting range	11 V
Control signals	Remote ON/OFF, Remote Sense
Length	218 mm
Width	105 mm
Power	960 W
Status signals	DC OK signal
Protection class	Class I
Application	ITE/AV
Height	61.5 mm
Input voltage range (VAC)	90-264 V
Output voltage (VDC)	12 V
Additional functions	5VDC auxiliary output, parallel switchable, peak power
