About the product

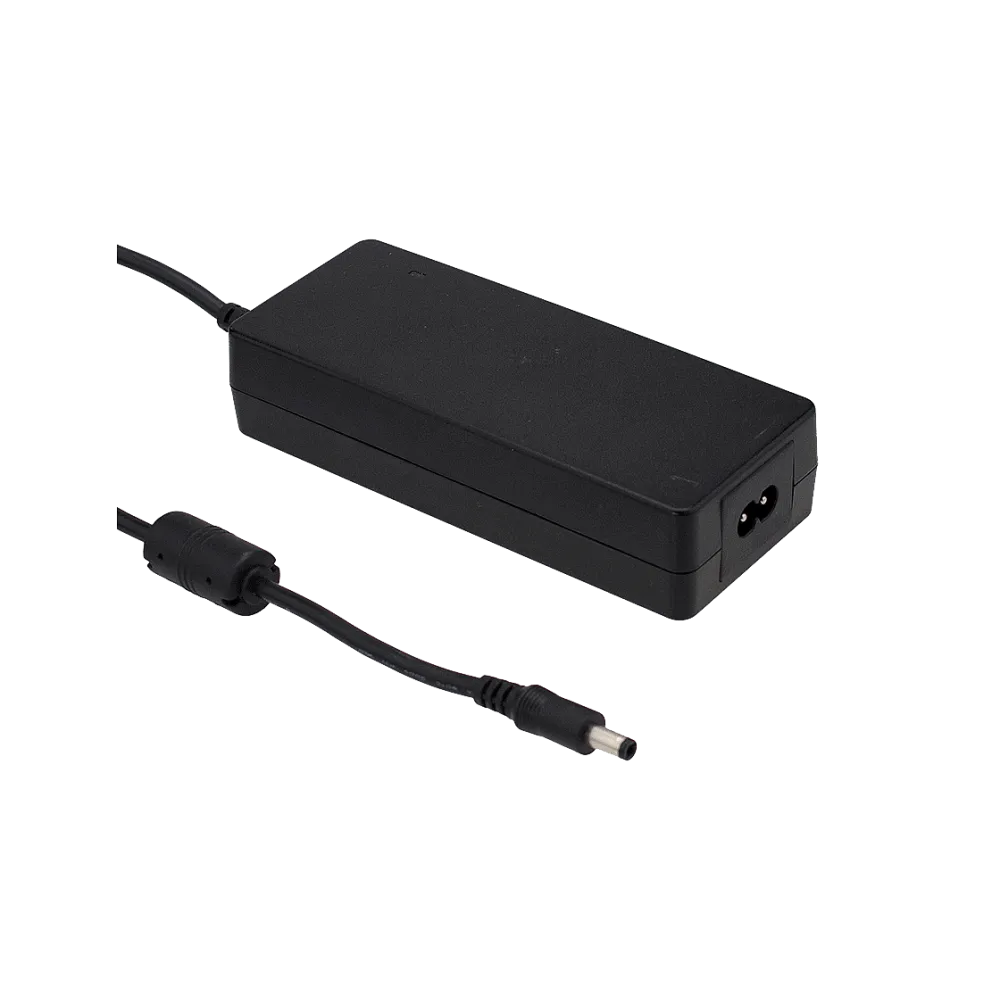

90W Medical Desktop Adaptor 15V/6A
Technical data
- Universal AC input 80 to 264Vac
- 2 pole AC inlet IEC320-C8
- DC plug 2.5 x 5.5 x 11mm
- Medical Safety Approved (2xMOPP between primary to secondary)
- Leakage current <100µA
- Energy efficiency level VI
- No load power consumption <0.1W
- Class II power unit (without earth pin)
- Fanless design with -30° to +60°C working temperature
- Dimension 145 x 60 x 32mm (L x W x H)
Product specifications
| Output voltage (VDC) | 15 V |
| Power | 90 W |
| Application | Home Healthcare, Medical |
| Efficiency level | VI |
| DC connector | 2.5x5.5x11 mm |
| Protection class | Class II |
| Manufacturer | MEAN WELL |
Data sheets
