About the product

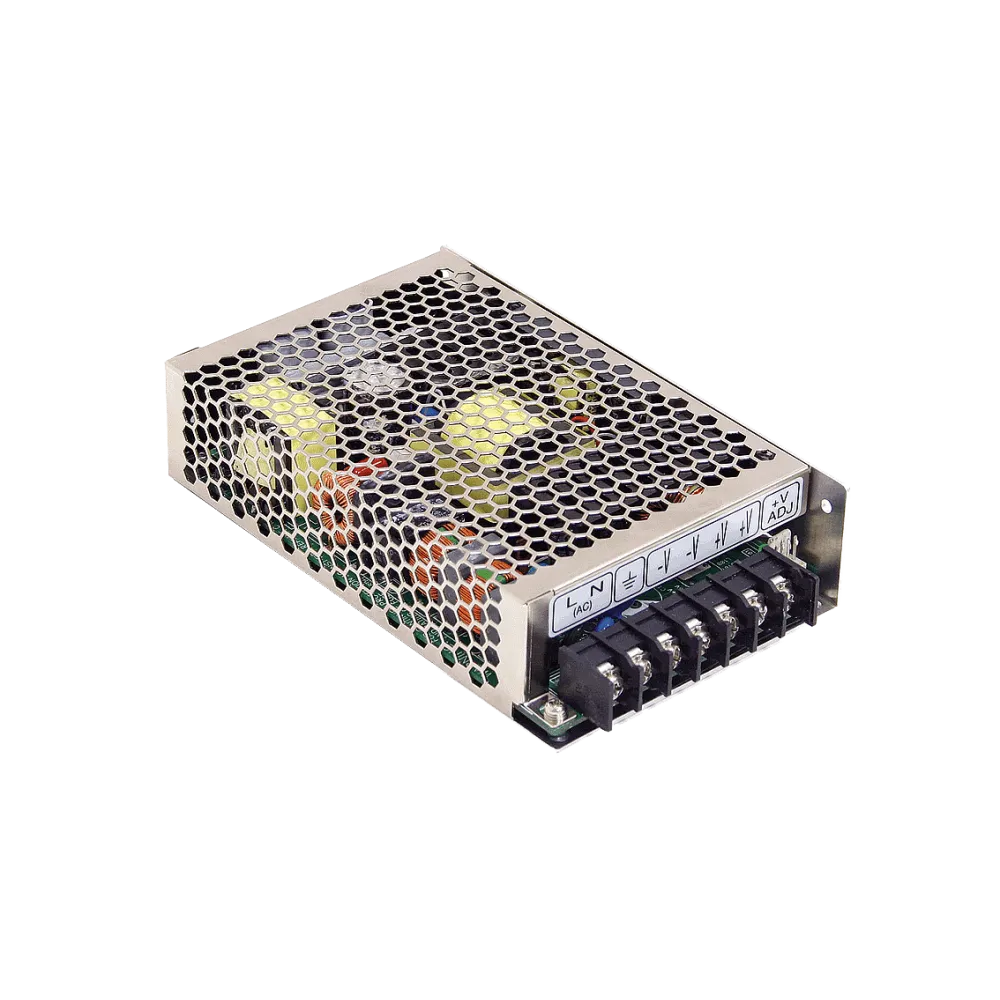

85W Enclosed Medical Power Supply 5V/17A
Technical data
- Universal AC input 85 to 264Vac
- Built-in active PFC function
- No load power consumption 0.5W
- Medical safety approved (MOOP level)
- Low leakage current ≤300µA
- Built-in Remote On/Off function
- Working temperature range -40°C to +60°C
- Withstand 300Vac surge input for 5 sec.
- Dimension 159 x 97 x 38mm (L x W x H)
- 5 Years Warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 5 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF |
| Application | Medical |
| Voltage setting range | 4.75-5.8 VDC |
| Height | 38 mm |
| Width | 97 mm |
| Length | 159 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 85 W |
| Efficiency | 83.00% |
