About the product

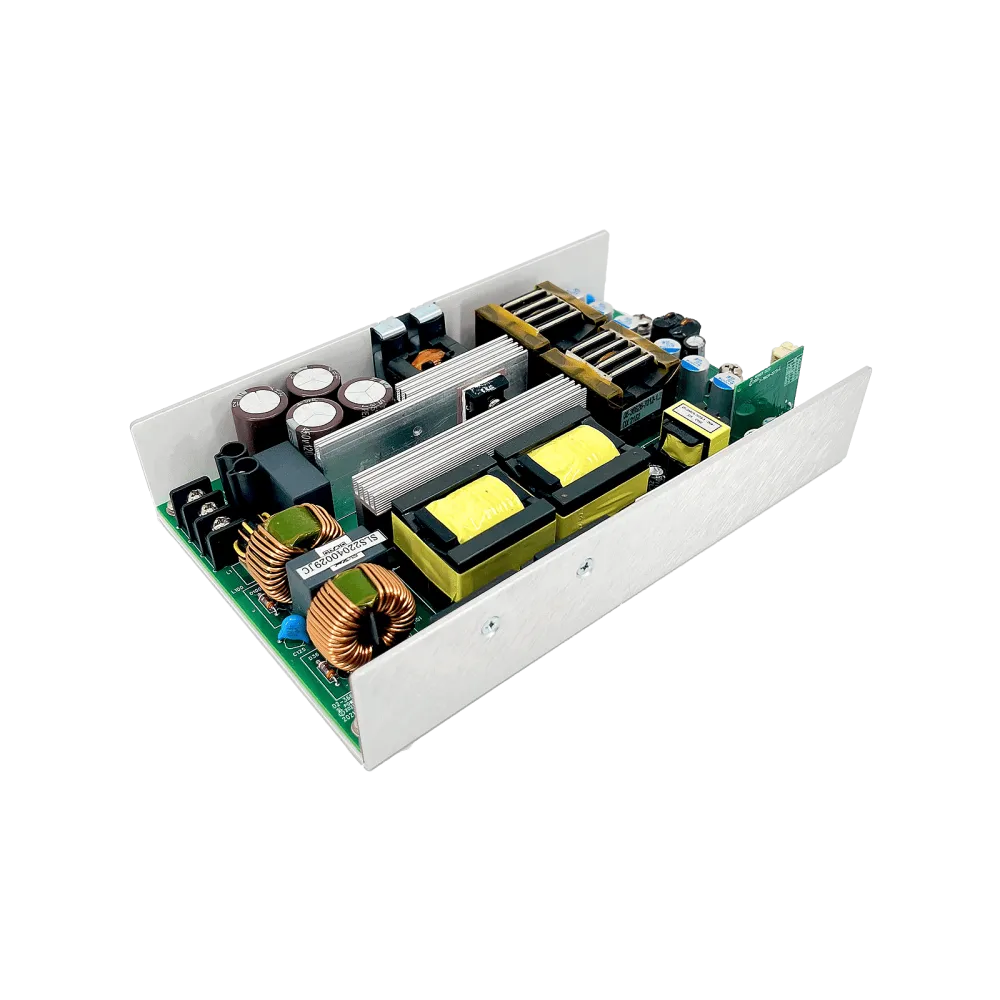

The NGB800 series from SL Power is a powerful family of AC/DC power supplies for next generation medical and industrial applications. One of the most important aspects of medical power supplies is safety approval.
Technical data
- 800Watt Output Power with airflow
- 650Watt Convection Cooled
- UL/CSA/IEC/IEC60601-1, IEC62368-1 Approved
- -20°C…+80°C Operating Temperature Range
- 5"x 8" x 1.6" Size
- Meets 4th Edition/Heavy Industrial EMC
- <100uA Leakage Current
- Universal 85V…264Vac Input Range
- Class I and Class II Input versions available
- Meets Class B Emission Level
- 5000m o.s.l.
- 7 Years Electrolytic Capacitor Life
- 3 Years Warranty
- SL Power Brand
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | SL Power |
| Manufacturer warranty | 3 years |
| Height | 40.64 mm |
| Width | 127 mm |
| Length | 203.2 mm |
| Protection class | Class I |
| Application | ITE/AV, Medical |
| Power | 800 W |
| Efficiency | 90.00% |
Data sheets
