About the product

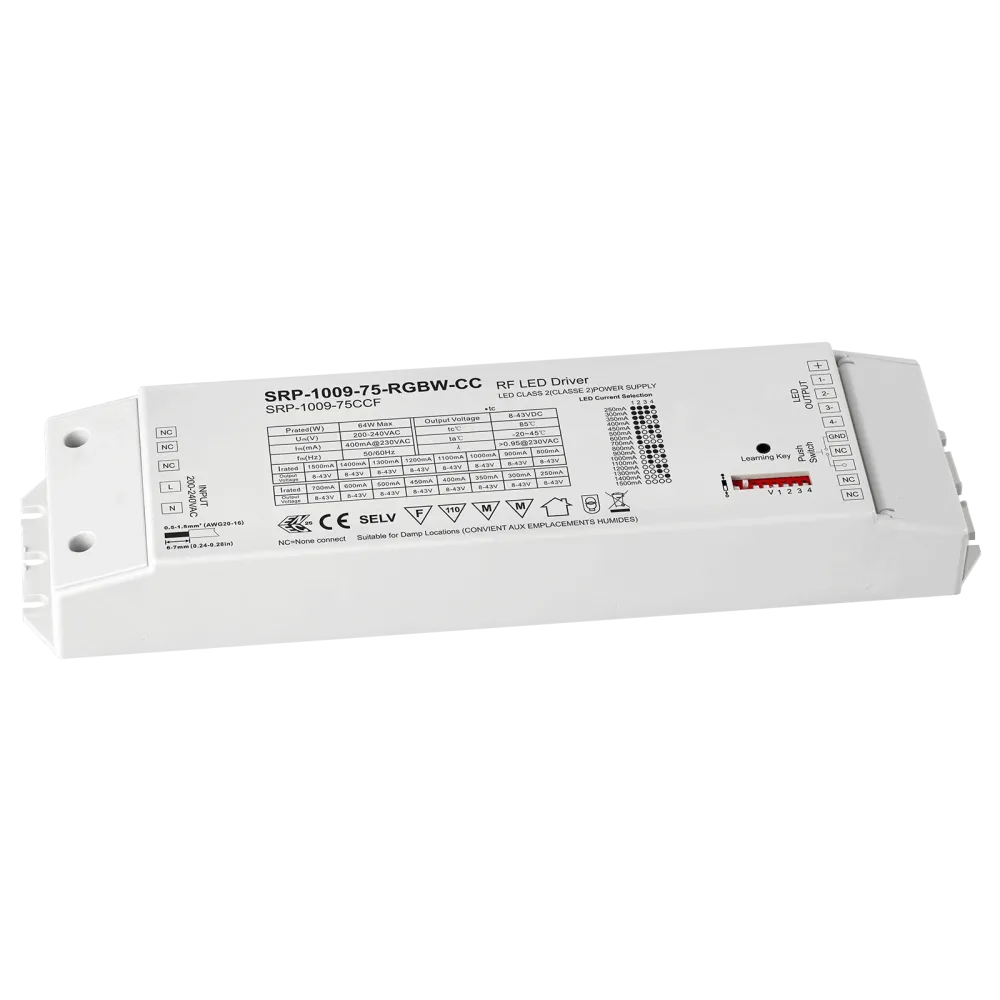

SRP-1009-75-RGBW-CC is a flexible, dimmable RGBW LED converter with constant current output. The power supply can be controlled by radio (RF Wireless).
Control
- RF Wireless, LV Push
Application
- RGBW, TW, Single Colour, RGB
Dimming range
The load-independent dimming range is 0% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Radio (RF) dimmable 4-channel TW power supply unit
- 200-240VAC wide input voltage range
- 4-channel constant current output (total output power up to 75W)
- Output current from 250mA to 1500mA selectable via DIP switches
- Class 2 power supply, completely insulated plastic housing
- Can be used as Single Color, Dual Color (TW) RGB or RGBW power supply unit
- Compatible with all SC-1009 series remote controls
- Push dimming function possible (if connected)
- IP20 protection class, suitable for indoor lighting projects
- Dimensions: 244 x 64 x 32mm
- 5 years warranty
Product specifications
| Power | 75 W |
| Output voltage range (VDC) | 8-43 V |
| Output current | 250-1500 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal, Screw terminal |
| IP protection | IP20 |
| Height | 32 mm |
| Width | 64 mm |
| Length | 244 mm |
| Application | RGB, RGBW, Single color, Tunable white |
| Dimming method | PWM |
| Current setting | DIP switch |
| Channels | 4 |
| Control | RF Wireless, Low Voltage Push |
| Product series | SRP-1009 |
