About the product

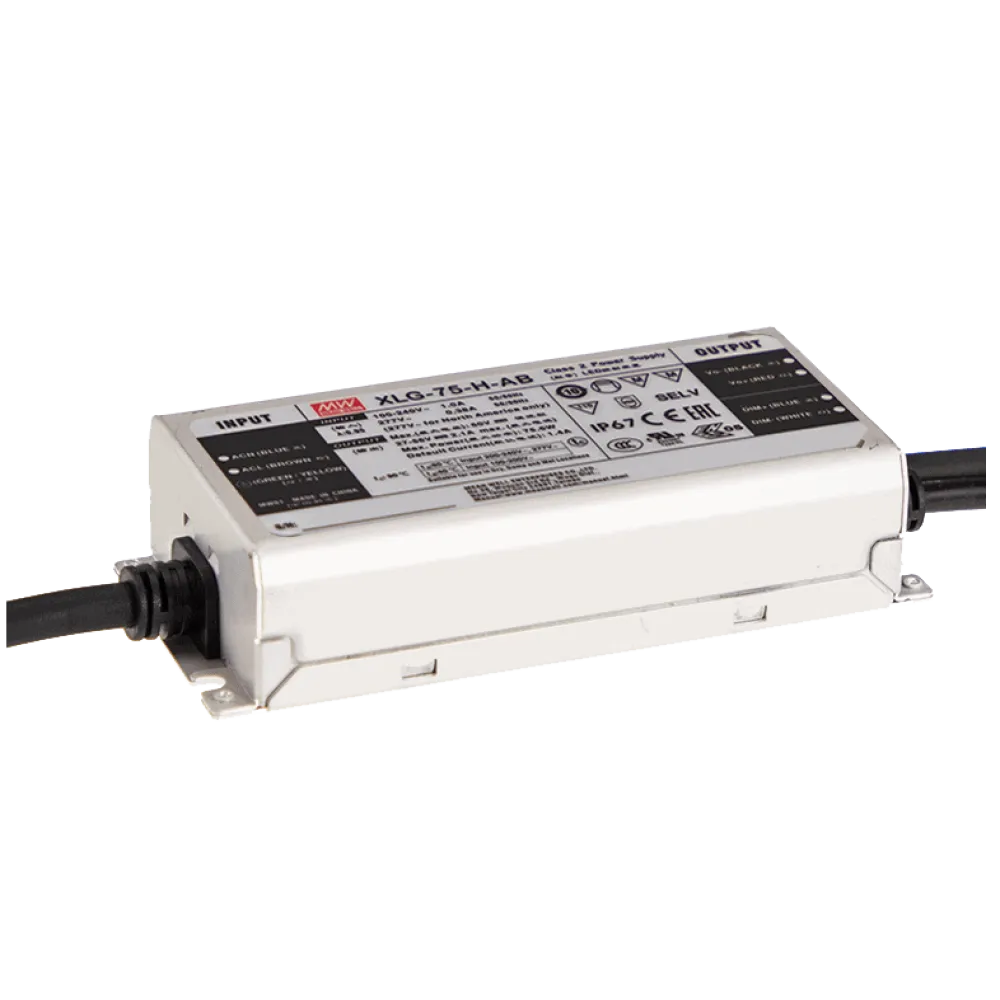

XLG-75 series is a 75W LED AC/DC Driver featuring the constant power mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
Technical data
- Universal AC Input 90 to 305Vac
- Constant Power Design

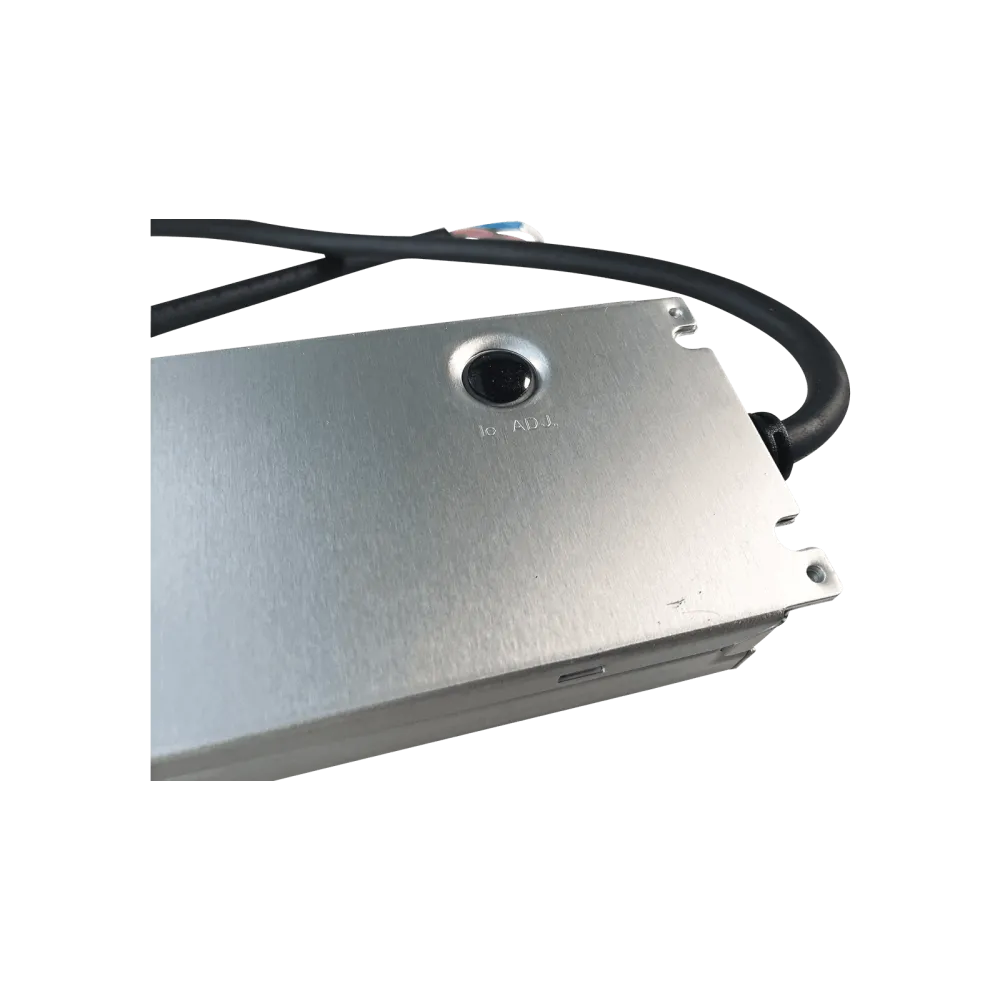

- Current adjustable via built-in potentiometer
- Output Voltage Region 27 – 56Vdc
- Current adjustable range 650 – 2100mA (factory setting 1400mA)
- Full power range 1300 – 2100mA
- Dimension 140 x 63 x 32mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 75 W |
| Output voltage range (VDC) | 27-56 V |
| Output current | 650-2100 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 63 mm |
| Length | 140 mm |
| Application | Single color |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Non-dimmable |
| Product series | XLG |
Data sheets
