About the product

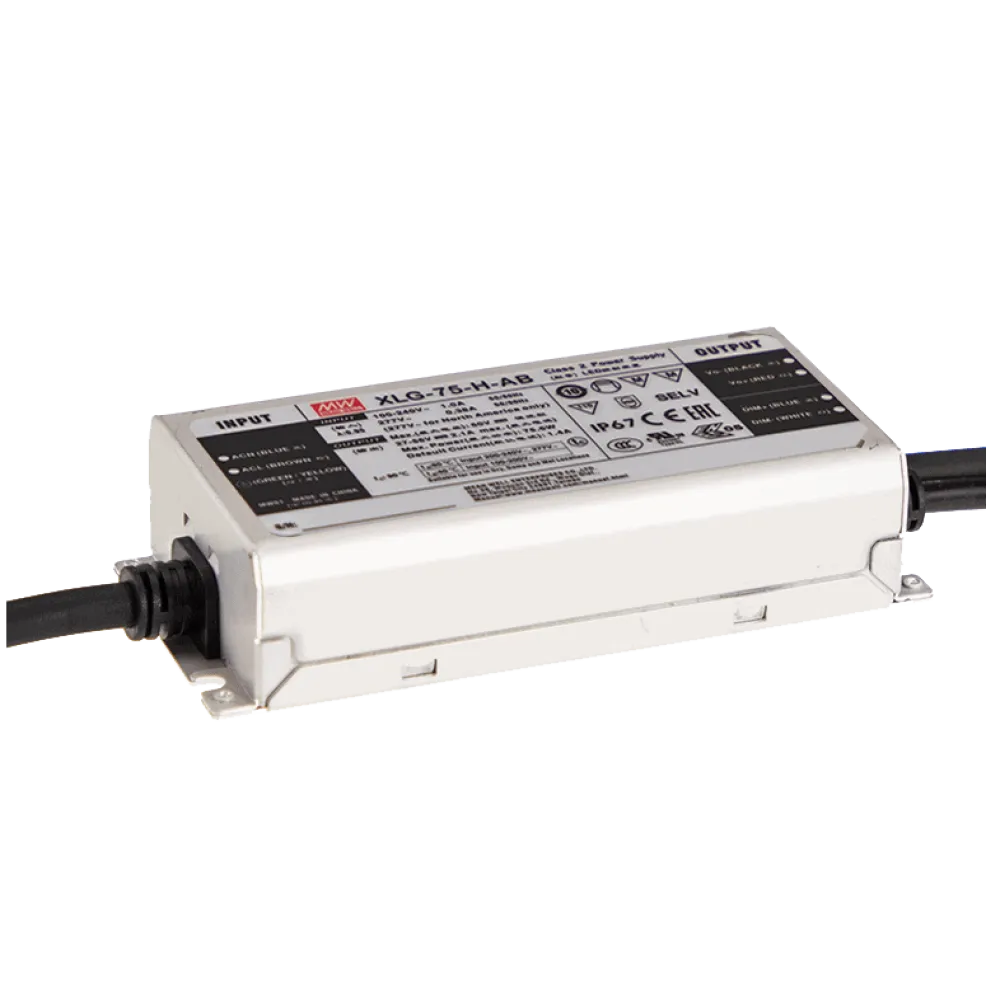

XLG-75 series is a 75W LED AC/DC Driver featuring the constant power mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. DA2 type with DALI 2.0 dimming interface.
Technical data
- Universal AC Input 90 to 305Vac
- Constant Power Design

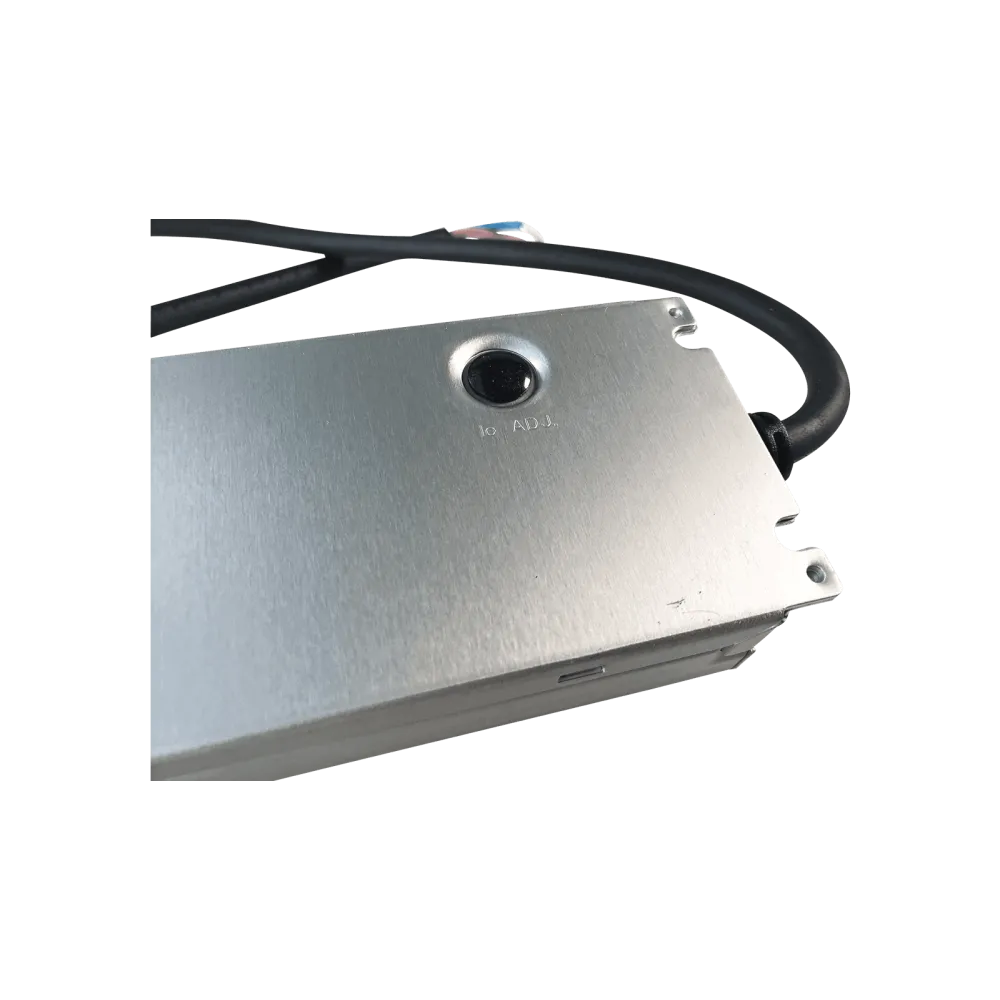

- Current adjustable via built-in potentiometer
- Output Voltage Region 27 – 56Vdc
- Current adjustable range 650 – 2100mA (factory setting 1400mA)
- Full power range 1300 – 2100mA
- Built-in DALI dimming function
- Dimension 140 x 63 x 32mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 75 W |
| Output current | 650-2100 mA |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 63 mm |
| Length | 140 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | DALI2, DALI |
| Output voltage range (VDC) | 27-56 V |
