About the product

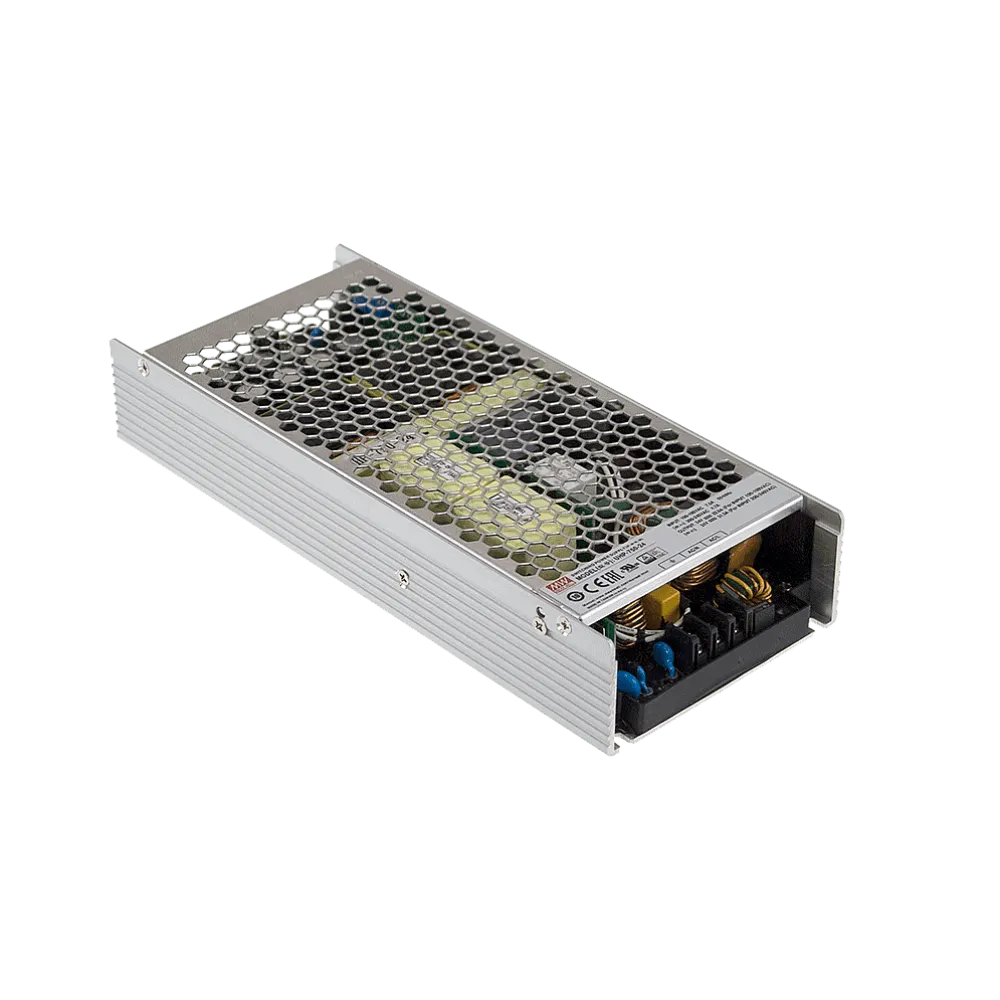

UHP-750 series is a single-output slim type power supply with 41mm of low profile design. In addition tot he high efficiency of up to 95% the whole series operates from -30°C to +70°C under air convection without fan.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Fanless design with 750W convection
- Slim and Low profile (41mm)
- DC OK relay contact
- Working temperature range -30°C to +70°C
- Withstand 300Vac surge input for 5 sec.
- Operating altitude up to 5000 meter
- Dimension 237 x 100 x 41mm (L x W x H)
Product specifications
| Output voltage (VDC) | 48 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Status signals | DC OK relay contact |
| Application | Household, ITE/AV |
| Voltage setting range | 48.0-57.6 VDC |
| Height | 41 mm |
| Width | 100 mm |
| Length | 237 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 753 W |
| Efficiency | 95.00% |
