About the product

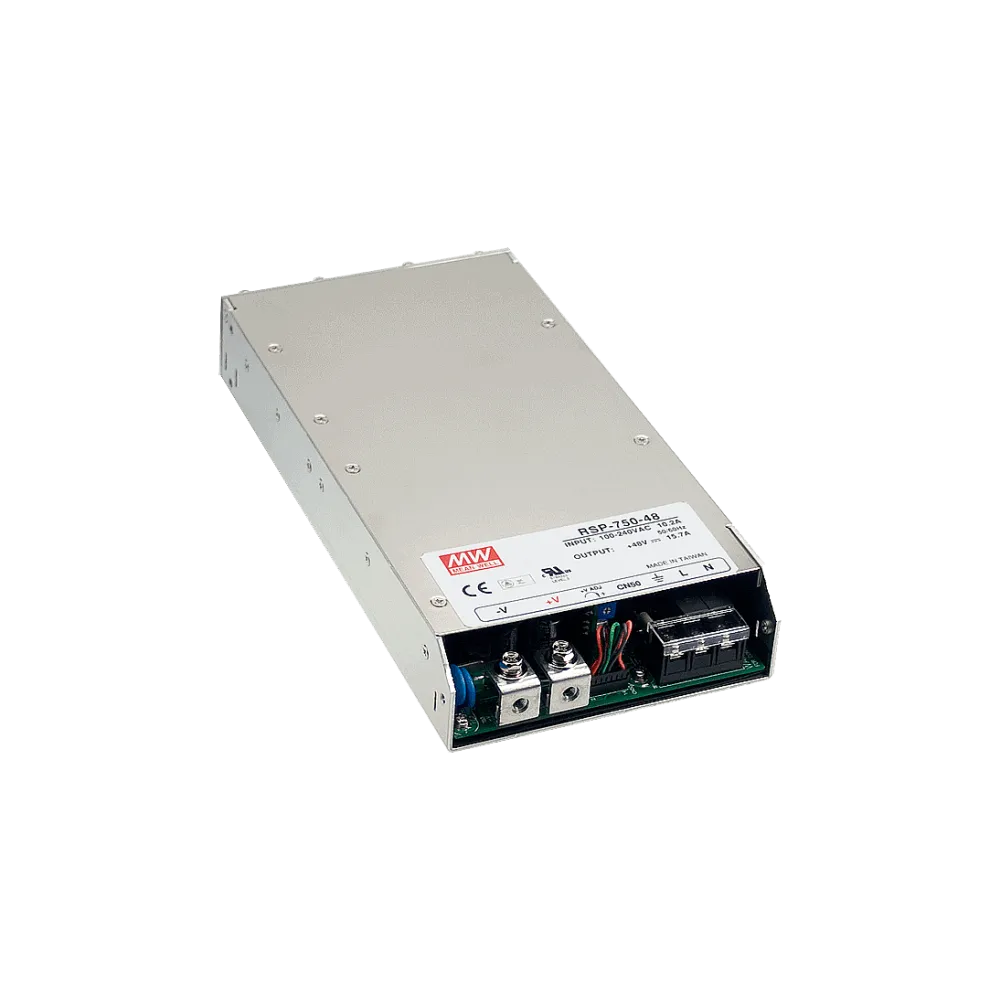

750W Enclosed Power Supply 48V/15.7A
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Built-in remote sense and remote On/Off control
- Built-in 12V/0.1A auxiliary power
- Output voltage and output current can be trimmed between 40
- 110% by 2 – 5.5Vdc external control signals
- DC OK signal
- forced air cooling by built-in DC fan with fan speed control
- Working temperature range -30°C to +70°C
- Dimension 250 x 127 x 41mm (L x W x H)
- 3 Years Warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 48 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Programmable output current, Programmable output voltage, Remote ON/OFF, Remote sense |
| Status signals | DC OK signal |
| Additional functions | 12 V DC auxiliary output |
| Application | ITE/AV |
| Voltage setting range | 43.0-55.0 VDC |
| Height | 41 mm |
| Width | 127 mm |
| Length | 250 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 753 W |
| Efficiency | 92.00% |
