About the product

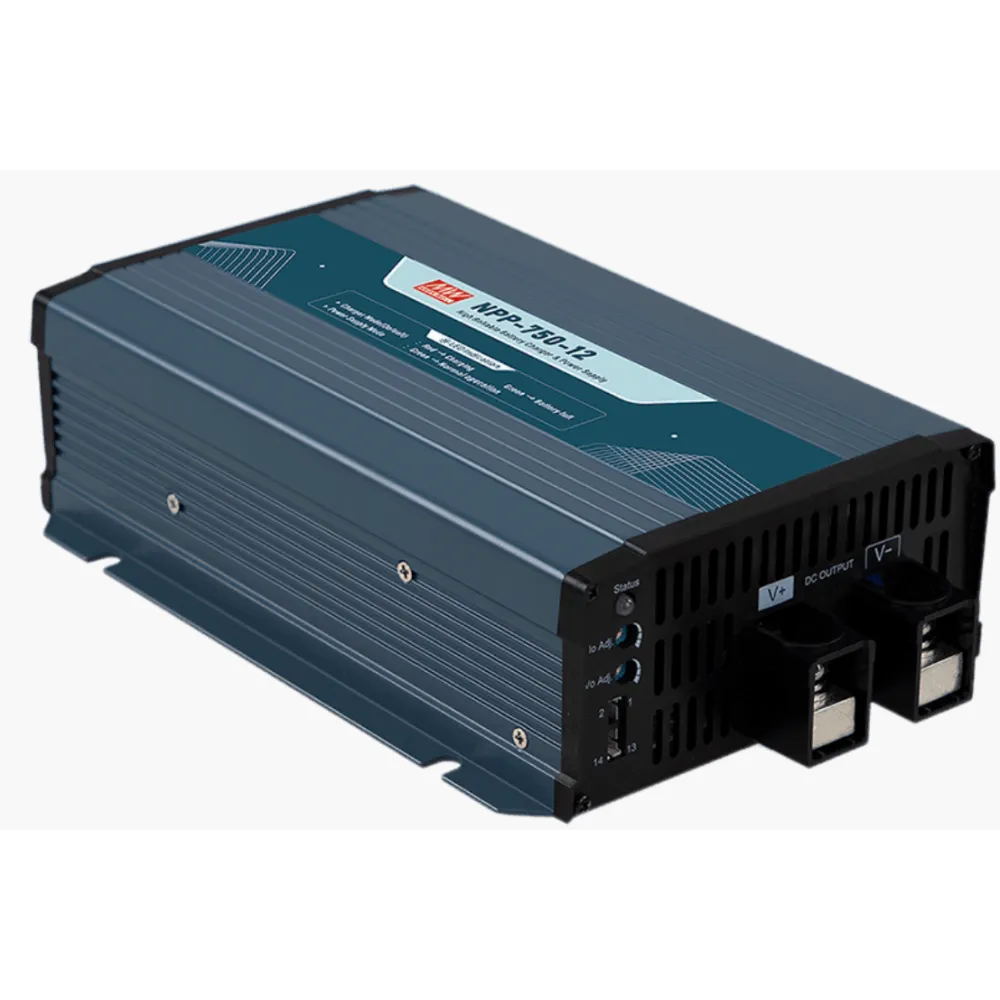

NPP-750 can be used as a charger for lead batteries or as a power supply unit with voltage output. The operating mode can be selected by setting a jumper on the front panel. The units are factory set as chargers.
The extremely wide voltage range from 42 to 80Vdc can be adjusted on the unit with a potentiometer.
Technical data
- Voltage output 42 to 80Vdc
- Can be used as a charger or as a power supply unit
- 3-stage charging characteristic for charging lead-acid batteries
- Remote ON-OFF
- Temperature-controlled fan for noise reduction and increased service life
Product specifications
| Output voltage (VDC) | 57.6 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF |
| Status signals | DC OK signal |
| Additional functions | Charger |
| Application | ITE/AV |
| Voltage setting range | 42.0-80.0 VDC |
| Height | 67 mm |
| Width | 158 mm |
| Length | 230 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 750 W |
| Efficiency | 93.00% |
