About the product

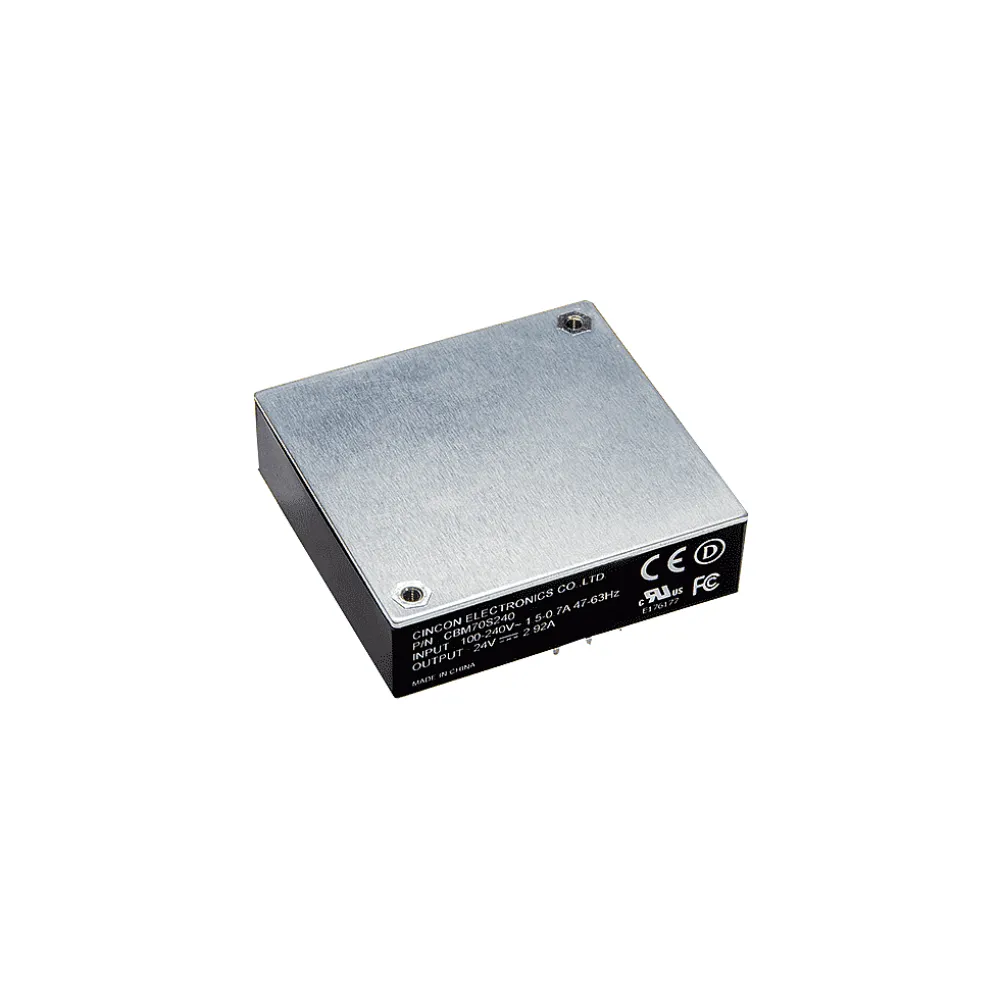

CBM70S series is Cincon’s new 70W, innovative high-density, class I, AC/DC power module in an industrial standard Half-Brick size (61.0×57.9×17.0mm) dimension. It has safety approvals for IEC/UL/EN 62368-1, and with no external components required, the AC/DC power supply module provide EMC compliance to meet EN55032 Level B for conducted, and radiated emissions as well as offer immunity to meet EN61000-4.
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer warranty | 3 years |
| Manufacturer | Cincon |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Input voltage range (VAC) | 90-264 V |
| Height | 17 mm |
| Width | 57.9 mm |
| Length | 61 mm |
| Application | ITE/AV |
| Power | 70 W |
| Efficiency | 89.00% |
