About the product

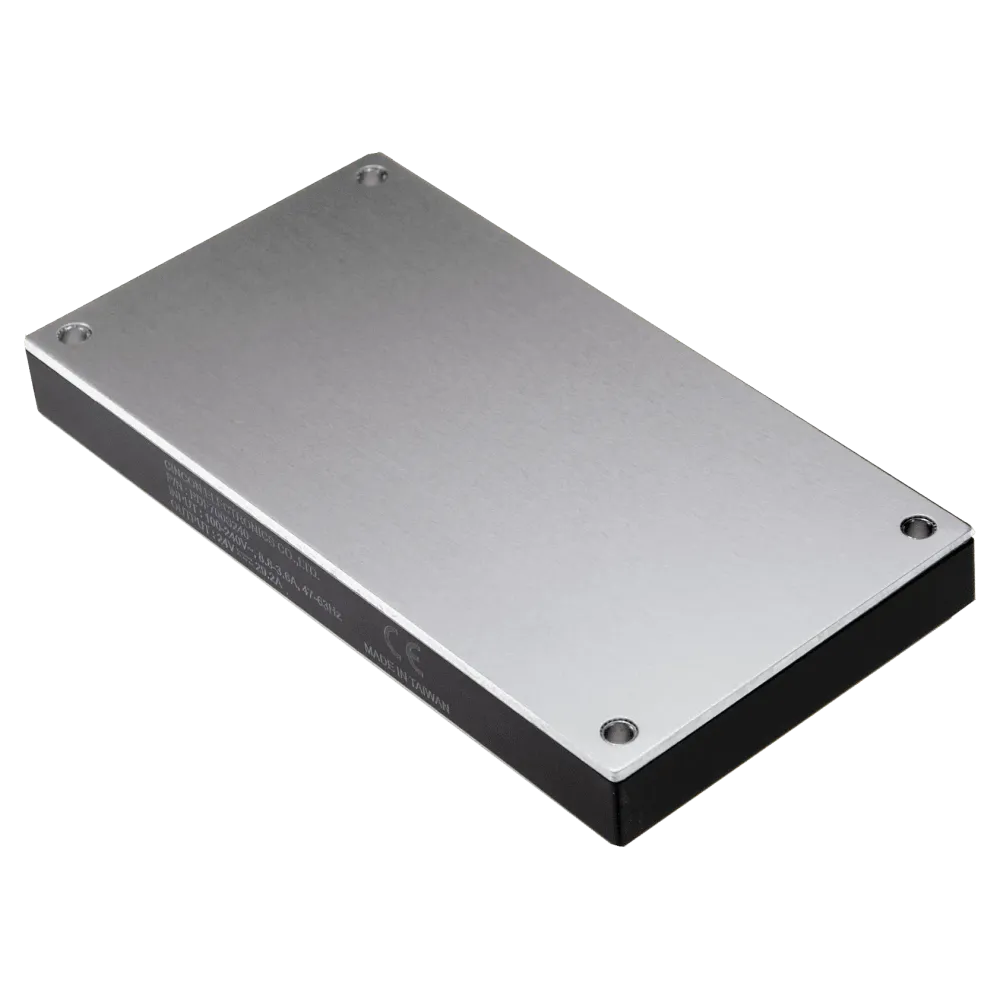

PDF700S120 series from Cincon is an innovative 700W AC-DC power module with high Class I power density in industry standard full brick format (116.8 x 61.0 x 12.7 mm). It has safety approvals to IEC/UL/EN 62368-1 and offers EMC compliance to EN55032 Level A for conducted and radiated emissions and immunity to EN55035.
Technical data
- Input voltage 90 to 264Vac
- Power Factor Correction (PFC)
- Very wide operating temperature range from -40°C to +100°C
- 5000m operating altitude
- Full-brick housing with a height of only 12.7 mm
- Remote ON/OFF, Remote Sense
- Safety approval according to IEC/UL/EN 62368-1
- Overvoltage protection (OVP), overtemperature protection (OTP) and continuous short-circuit protection
Product specifications
| Output voltage (VDC) | 12 V |
| Input voltage range (VAC) | 90-264 V |
| Width | 61 mm |
| Manufacturer | Cincon |
| Application | ITE/AV |
| Length | 116.8 mm |
| Power | 700 W |
| Height | 12.7 mm |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE, IEC62368-1 / ITE |
