About the product

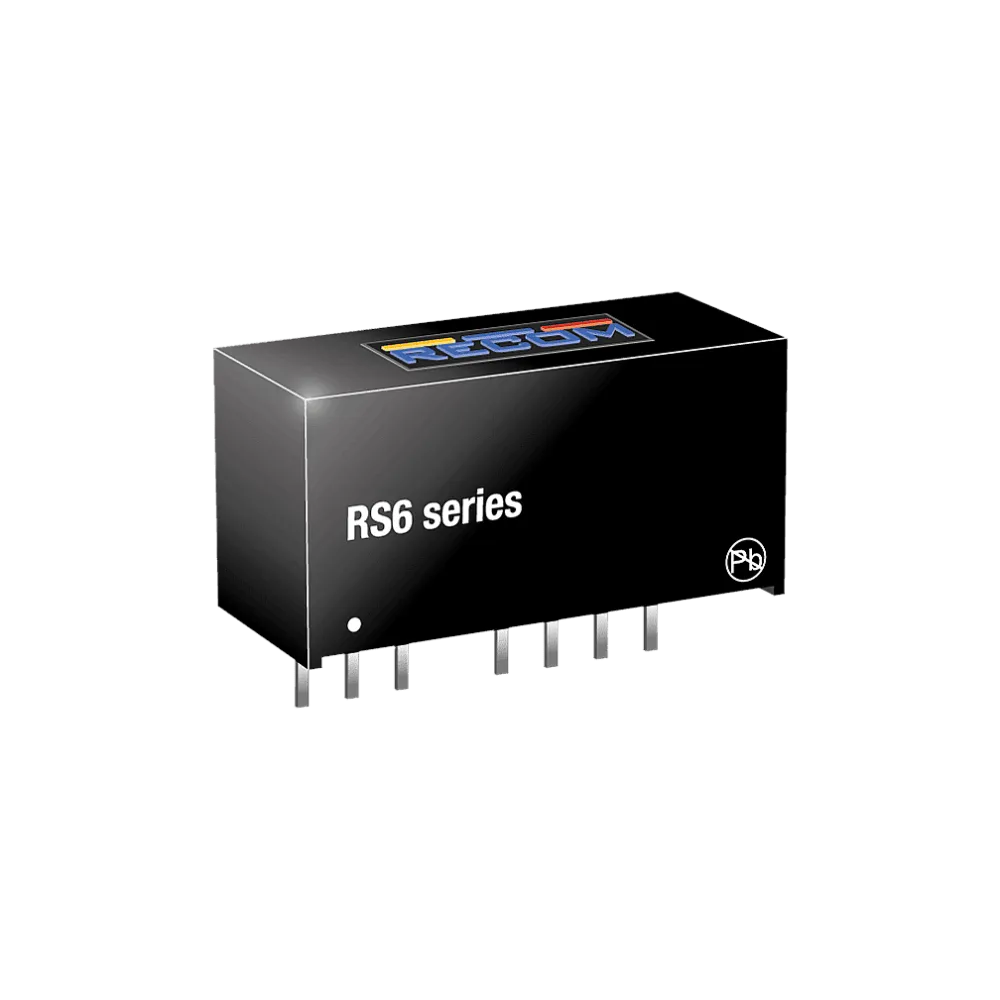

The RS6 series offer very high power density (2.7W/cm³), wide input voltage range and an industrial operating temperature range of -40°C to +75°C without derating. High efficiency, tight regulation, 2kVDC isolation and remote on/off are just some of the characteristics of this advanced SIP8 6W converter which is ideal for high density power supply designs in demanding industrial applications.
Technical data
- Highest power density in SIP8 package
- 1.6kVDC/1 minute isolation
- Efficiency up to 88%
- -40°C to +75°C operating temperature range @ full load
- EN60950 and IEC/EN62368-1 certified
- Industry standard pinout
Product specifications
| Output voltage (VDC) | 13.5-16.5 V |
| Efficiency | 87.00% |
| Manufacturer | Recom |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Length | 21.8 mm |
| Package / case | SIP8 |
| Regulation | Regulated |
| I/O isolation | 2000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 18-36 V |
| Nominal input voltage (VDC) | 24 V |
| Output current | 400000 mA |
| Power | 6 W |
| Temperature range | -40°C to 75°C |
