About the product

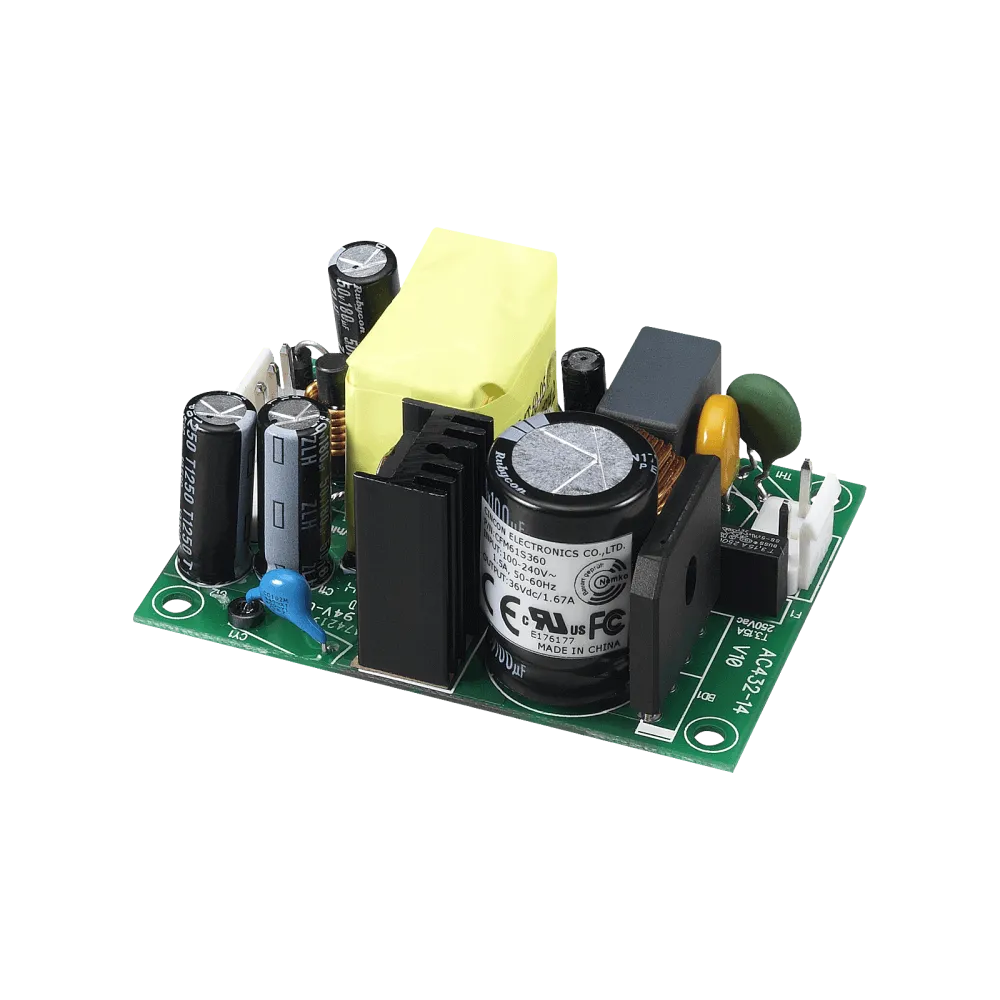

60W Open frame Power Supply 12V/5A
Technical data
- Universal Input 90…264Vac
- High Efficiency up to 90%
- Meets EN55032 Class B and CIRSS/FCC Class B
- Approved IEC62368-1, UL62368-1, EN62368-1
- Protections : Continuous Short Circuit and Over Voltage
- *Peak Load 2 times of rated current
- Class II
- Manufacturer: Cincon
*Peak load @110Vac: Lasting time < 10sec. with a maximum 10% duty cycle and must add external 100uF/400V Capacitor (BC+ & BC-).Peak Power @230Vac no component requested.
Product specifications
| Output voltage (VDC) | 12 V |
| Product series | CFM |
| Manufacturer | Cincon |
| Manufacturer warranty | 3 years |
| Height | 32.8 mm |
| Width | 50.8 mm |
| Length | 68.6 mm |
| Protection class | Class II |
| Application | ITE/AV |
| Power | 60 W |
| Efficiency | 88.00% |
Data sheets
