About the product

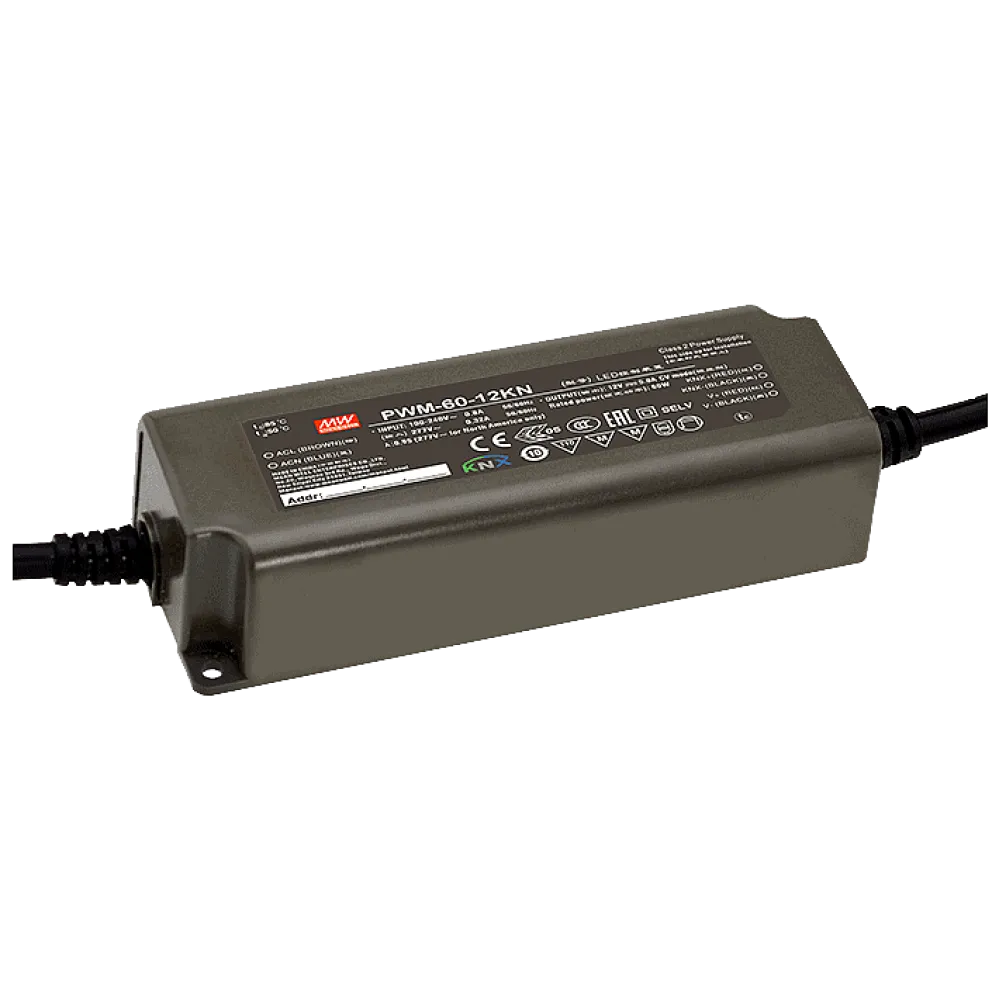

PWM-60 series is a 60W AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogenity when driving all kinds of LED strips. PWM-60KN featuring the KNX control so that the integration into a KNX building automation system is greatly simplified.
Technical data
- Universal AC input 90 to 305Vac
- Constant voltage output
- Built-in KNX Interface
- ETS Functions: Manual dim, operation hours, power consumption feedback, log/linear dimming curve selection, PWM frequency setting etc.
- PWM style dimming with frequency 4kHz
- No load power consumption 0.5W
- Class II power unit, without FG
- Dimension 150 x 53 x 35mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | PWM |
| Input voltage range (VAC) | 100-277 V |
| Additional functions | Constant lumen output, Corridor function, PWM frequency adjustable |
| Connection | Cable |
| IP protection | IP20 |
| Height | 35 mm |
| Width | 53 mm |
| Length | 150 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | KNX |
| Channels | 1 |
| Output current | 2.5 A |
| Power | 60 W |
| Manufacturer | MEAN WELL |
