About the product

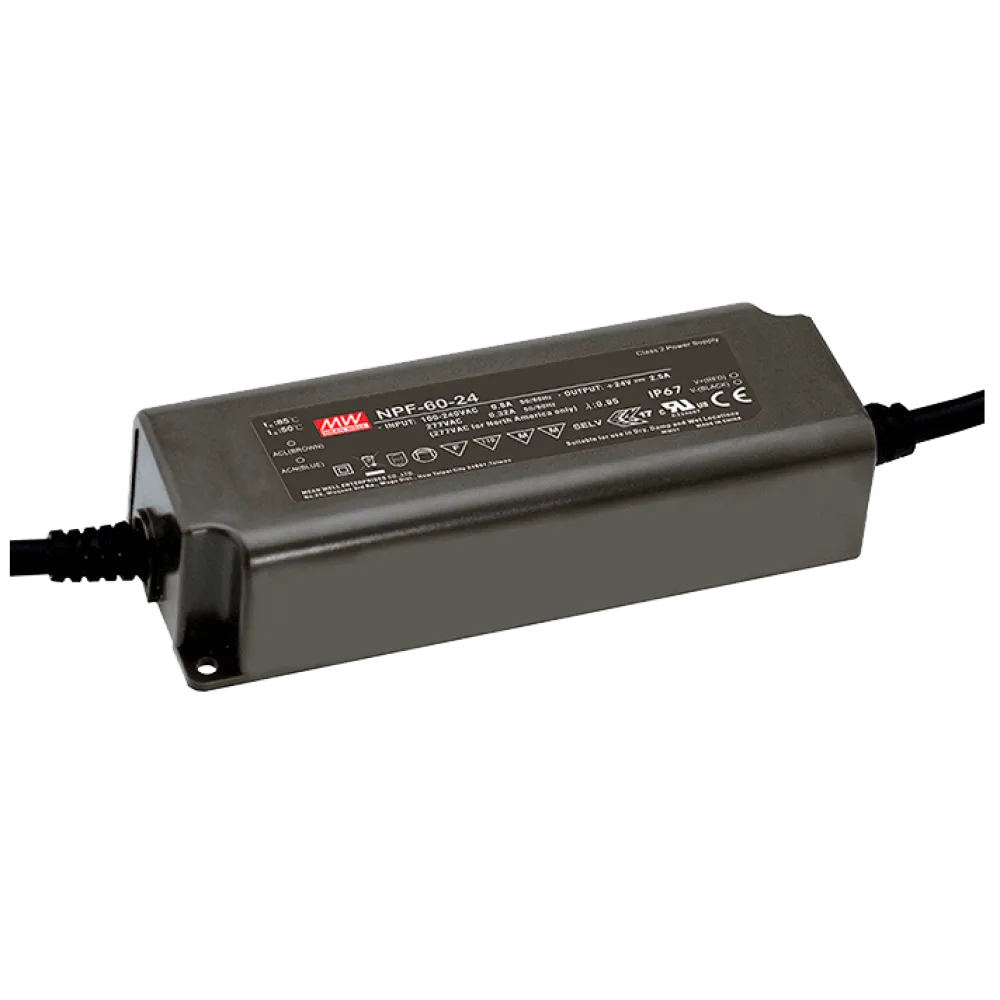

60W LED Driver CV+CC 30V/1.34A , 3in1 Dimming
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- Constant current level can be adjusted through 0-10Vdc / PWM signal or Resistance
- Dimming by current reduction, No PWM output
- No load power consumption <0.5W
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 150 x 53 x 35mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 30 V |
| Manufacturer warranty | 5 years |
| Product series | NPF |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 35 mm |
| Width | 53 mm |
| Length | 150 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Control | Resistor, 0-10V, 1-10V, PWM control signal |
| Channels | 1 |
| Output current | 2 mA |
| Power | 60 W |
| Manufacturer | MEAN WELL |
