About the product

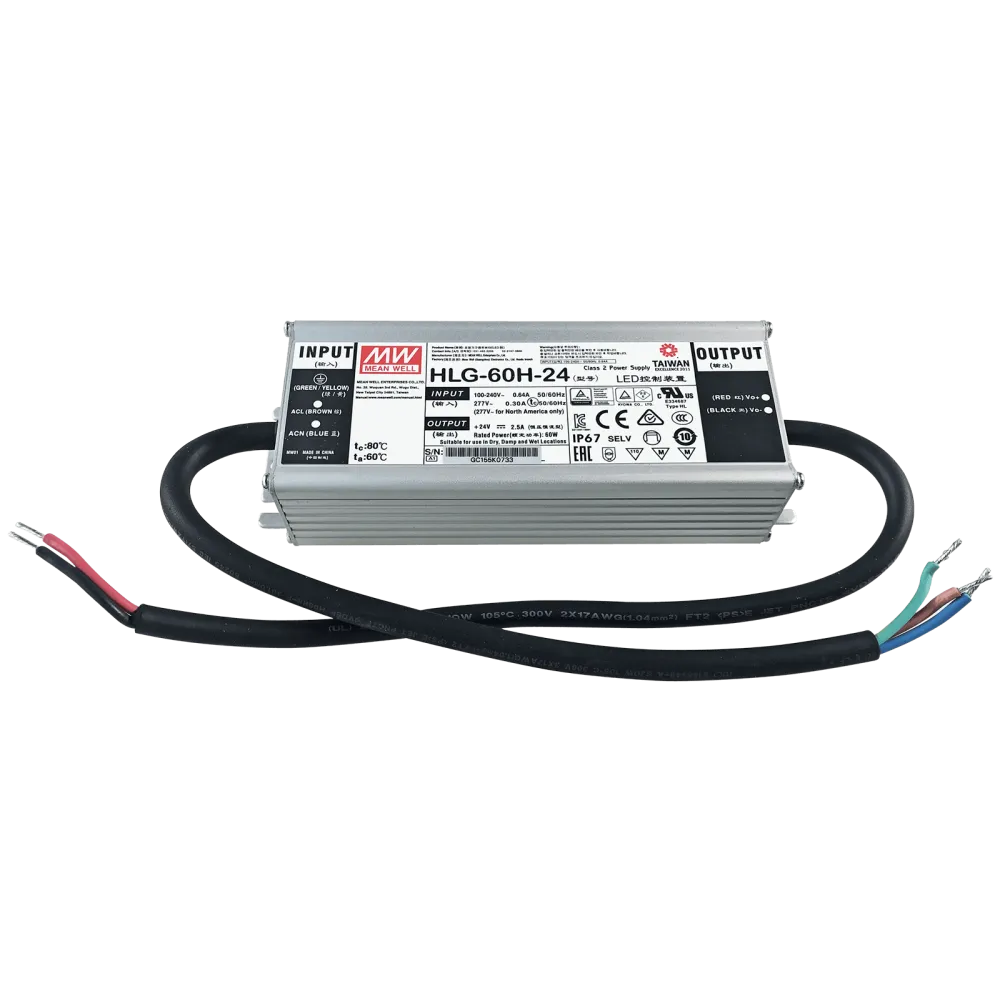

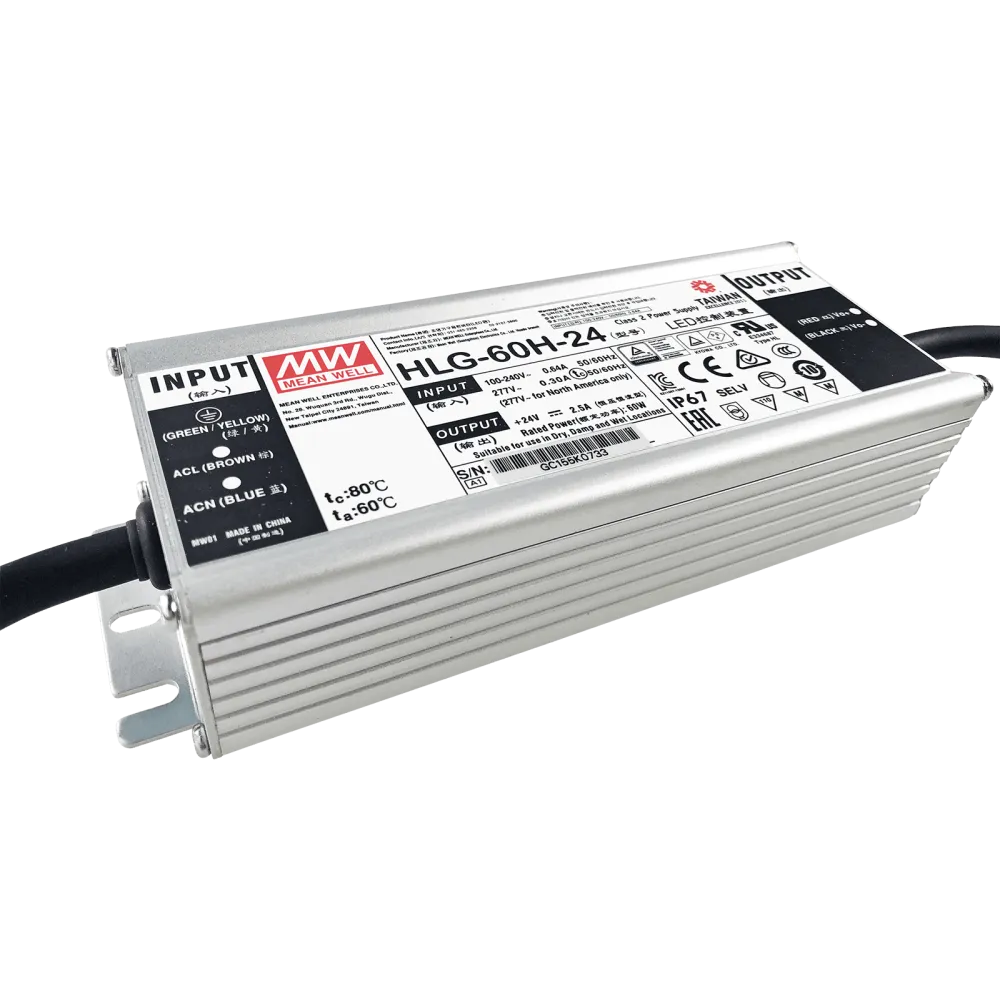

60W LED Driver CV+CC 24V/2.5A
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- IP67 for indoor and outdoor installations
- High reliable driver with long lifetime
- Fully encapsulated metal housing
- Suitable for dry, damp, and wet location
- Type HL LED driver for use in class I, division 2 hazardous location luminaires
- Meet 4kV surge immunity level (IEC61000-4-5)
- Dimension 171 x 61.5 x 36.8mm (L x W x H)
- 7 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 7 years |
| Product series | HLG |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 36.8 mm |
| Width | 61.5 mm |
| Length | 171 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 2.5 A |
| Power | 60 W |
| Manufacturer | MEAN WELL |
Data sheets
