About the product

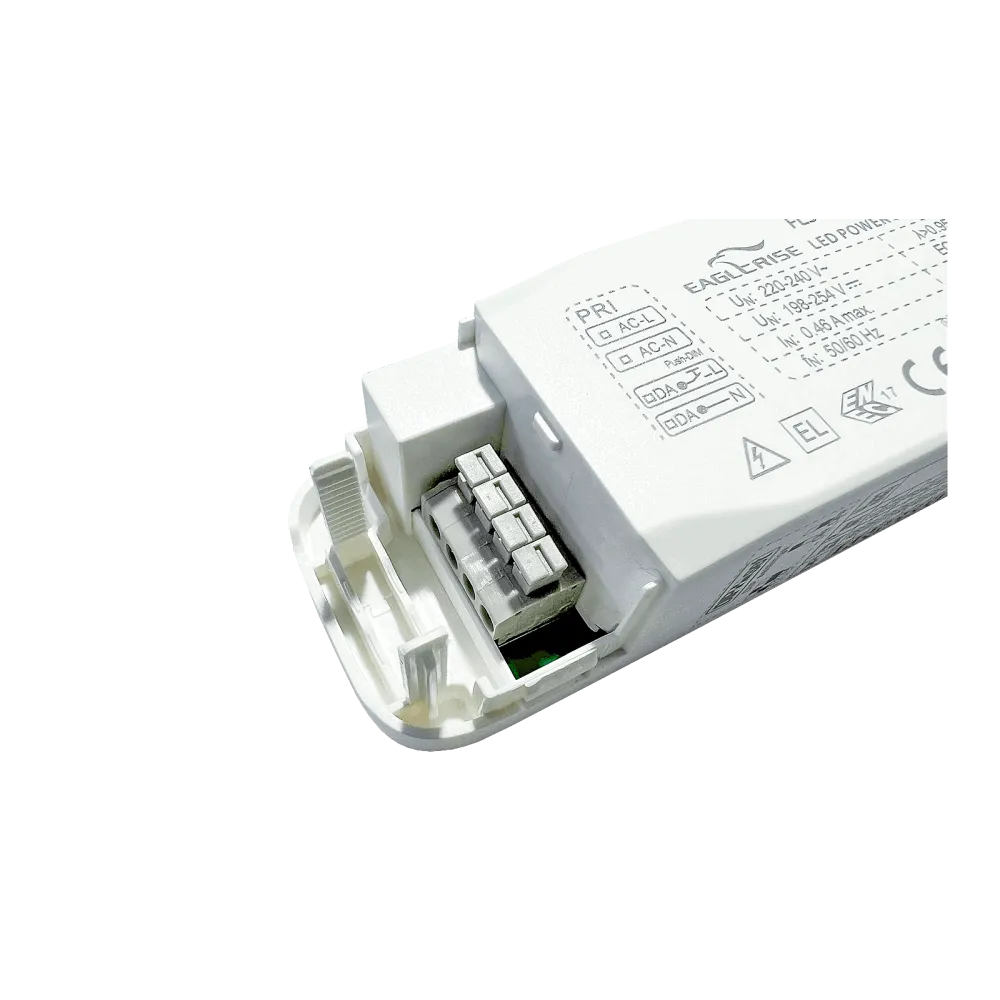

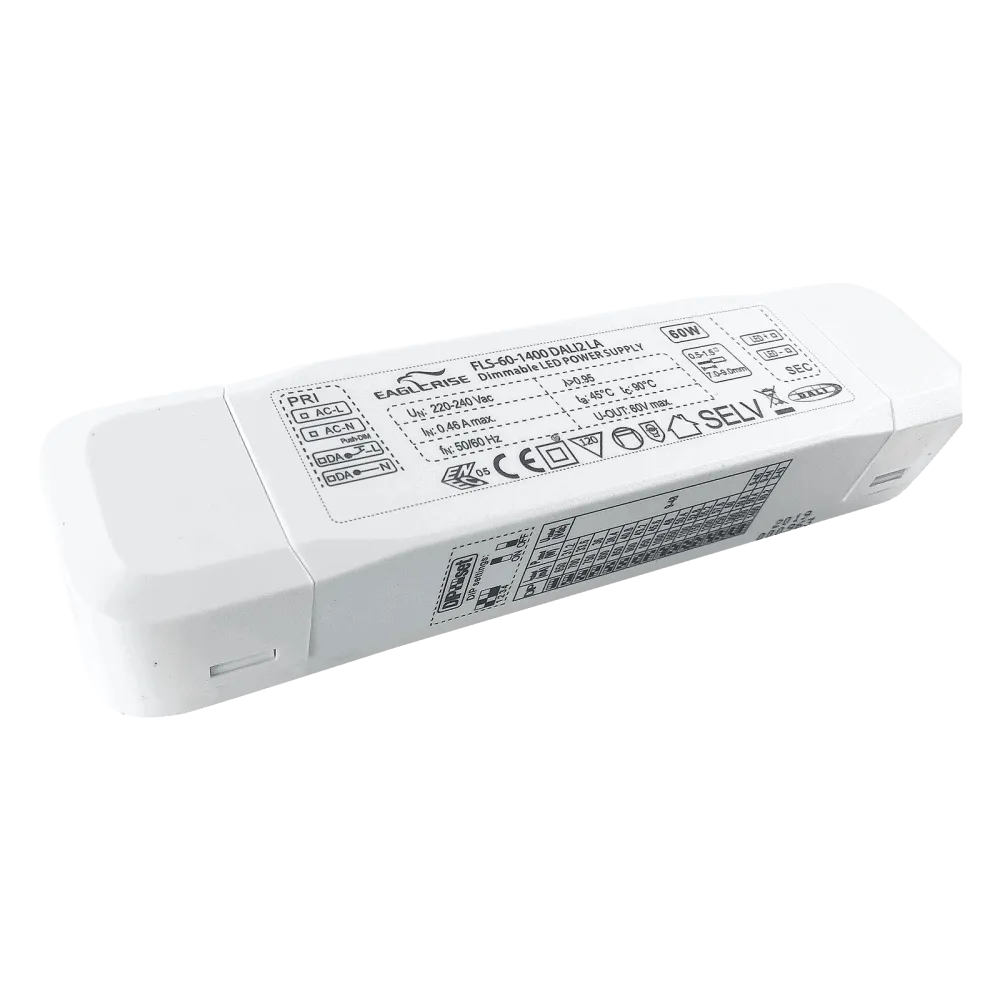

FLS-60-1400 DALI2 LA1 is a 60W constant current LED driver with 650 to 1400mA output current and a forward voltage range from 9 to 48Vdc. The output current is selectable by DIP Switch. With it’s compact dimensions from 187 x 45 x 30mm and the integrated DALI2 and Push dimming function it is easy to integrate in LED Panel and downlight products.
Technical data
- Input voltage 198 to 264Vac / 198 to 280Vdc
- DALI2 and AC Push control
- Linear dimming
- 1-100% dimming range

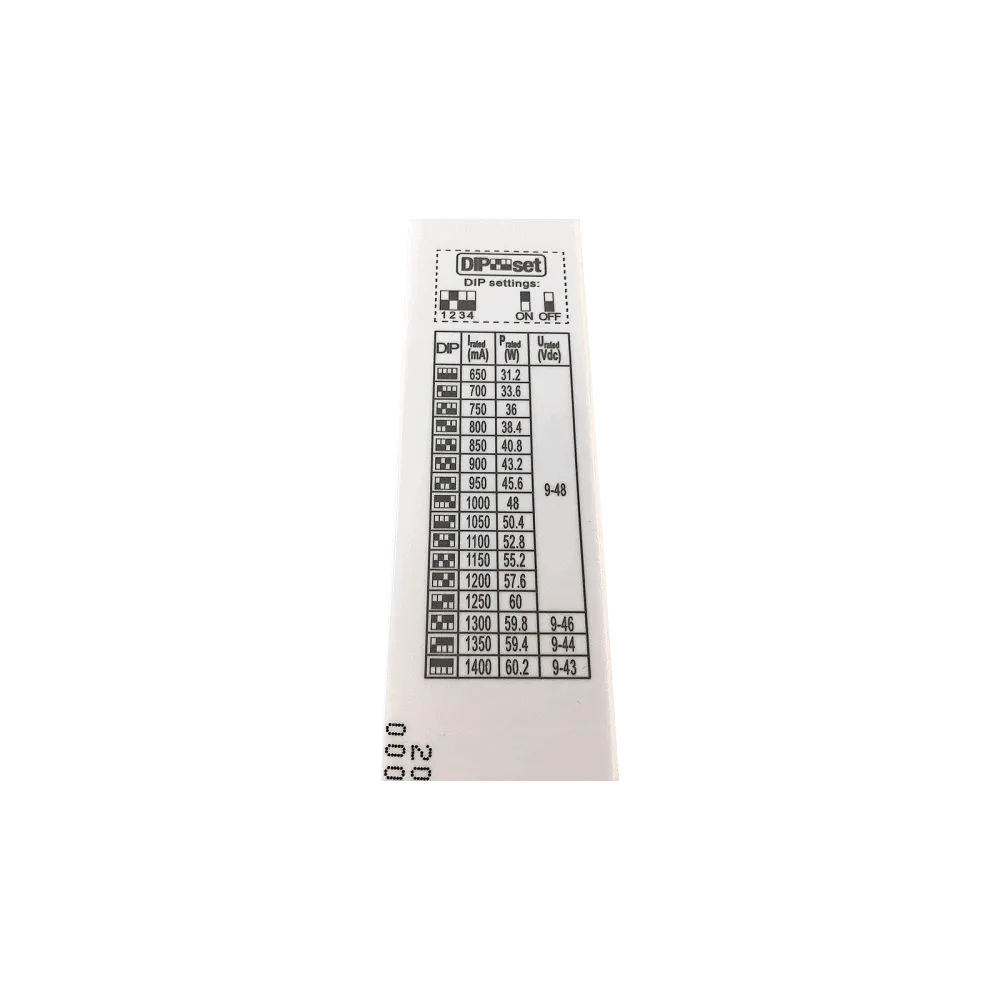

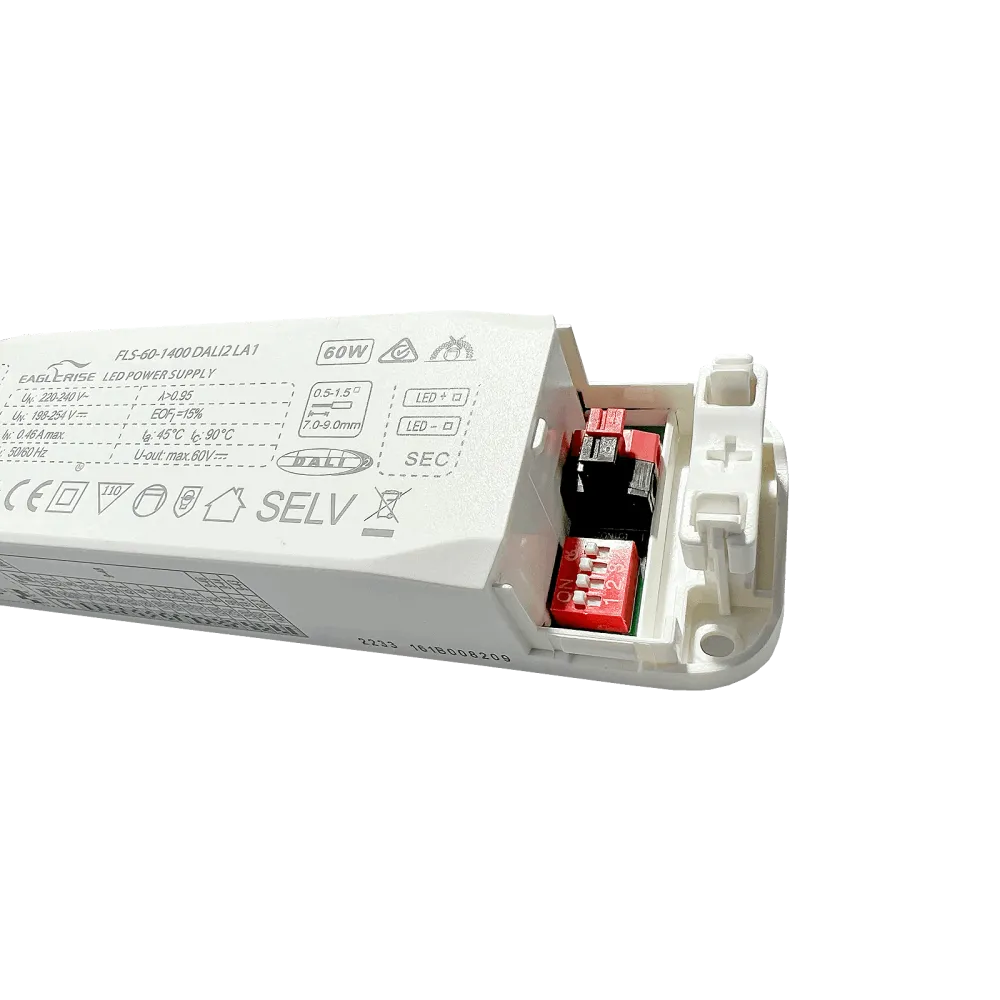

- Output current 650 / 700 / 750 / 800 / 850 / 900 / 950 / 1000 / 1050 / 1100 / 1150 / 1200 / 1250 / 1300 / 1350 / 1400mA selectable by DIP switch
- Vf range 9 to 48Vdc
- Dimensions 187 x 45 x 30mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Power | 60 W |
| Output voltage range (VDC) | 9-48 V |
| Input voltage range (VAC) | 200-240 V |
| Output current | 650-1400 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Additional functions | Corridor function |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 30.5 mm |
| Width | 45 mm |
| Length | 187 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI2, DALI, AC Push Dimming |
| Product series | FLS |
