About the product

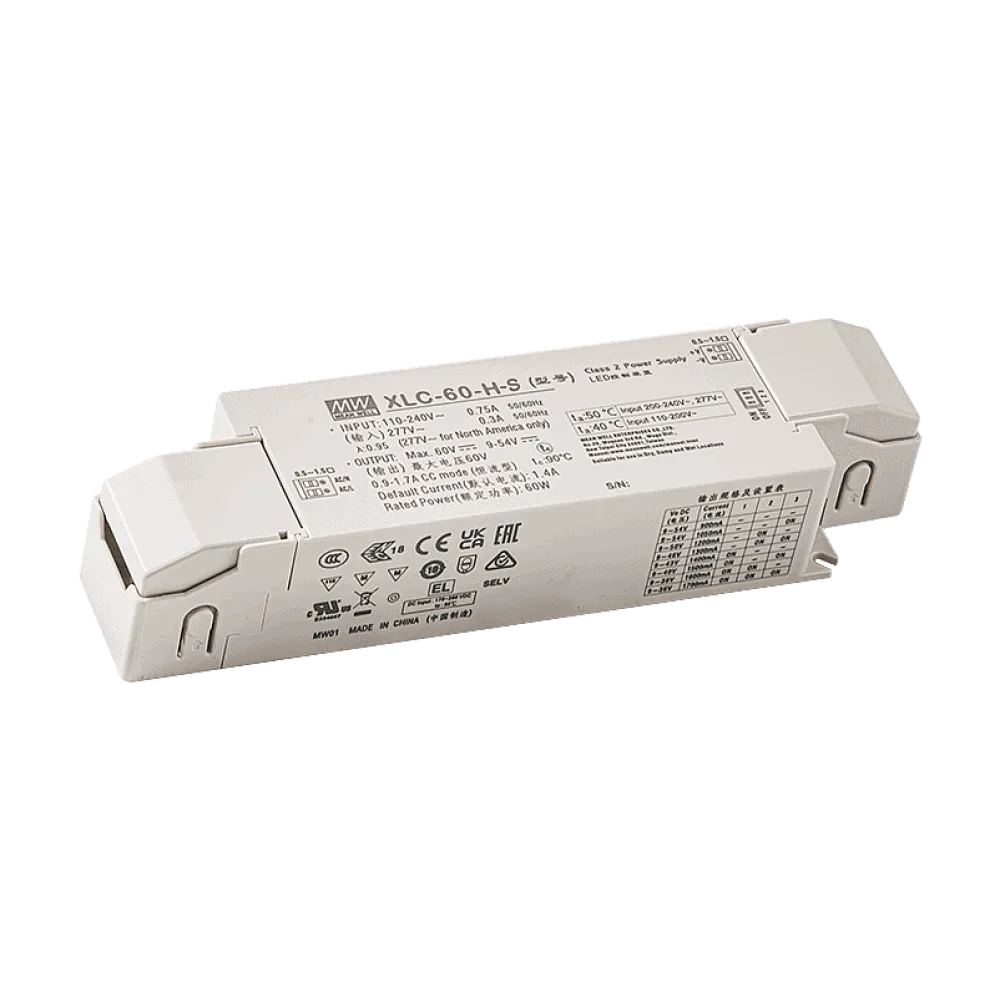

XLC-60 Series is a 60W constant current LED driver. It can operate from 110 to 305Vac and 176 to 280Vdc. Thanks to high efficiency up to 88%, it is able to operate for -25°C to 90°C case temperature under free air convection. XLC-60 is designed based on latest safety regulations. The output current is selectable via NFC which provides design flexibility for LED Lighting applications.
Independent type
Technical data
- Constant power mode output
- Multiple output current, selectable via NFC
- Plastic housing with class II/2 and PFC design
- Flicker free, complying with IEEE1789/ErP
- Standby power consumption <0.5W
- Meet emergency lighting (EL) application
- 5 years warranty
Product specifications
| Power | 60 W |
| Output voltage range (VDC) | 9-54 V |
| Output current | 900-1700 mA |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power, EL mark |
| Connection | Push-in terminal |
| Height | 32 mm |
| Width | 45 mm |
| Length | 176 mm |
| Application | Single color |
| Current setting | NFC |
| Channels | 1 |
| Control | Non-dimmable |
| Efficiency | 90.00% |
