60W LED driver 900mA to 1700mA/9V...54V, KNX, Built-in

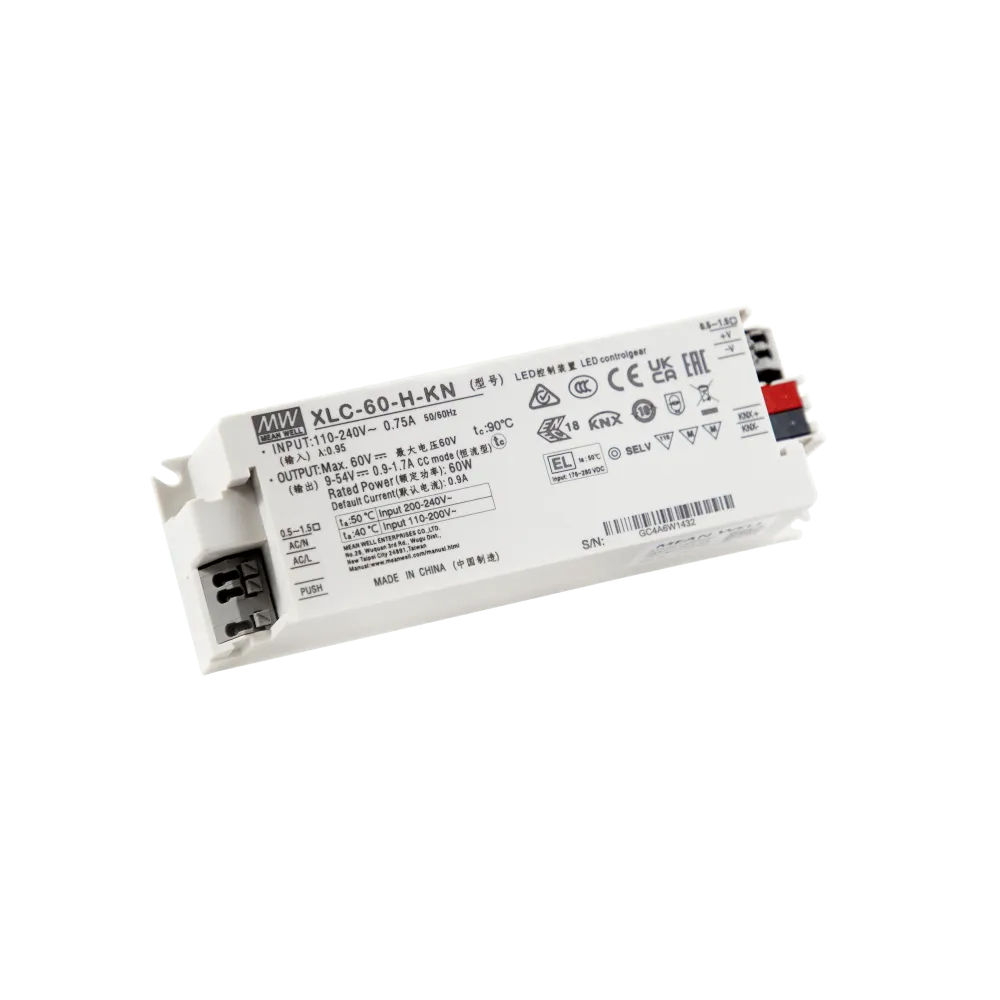

XLC-60-H-KN is a flexible LED driver with constant current output for direct operation of LED lighting applications in the KNX system. Dimmable via AC Push or KNX.

Highlights

• The output current can be programmed via ETS
• Wide voltage range of 9-54Vdc also enables the operation of smaller loads
• Dimmable via AC Push or KNX (direct, without gateway)
• Dimming is flicker-free with current control, no PWM at the output

Control

• KNX
• AC Push (KNX connection required)

Dimming range

The dimming range is 0.1% to 100% of the selected output current.

KNX functions

CLO

The luminous flux of LEDs decreases over time as the diodes age. The CLO function (Constant Light Output) is used to continuously compensate for the
. continuously compensate for the drop in luminous flux of the luminaire. Once set in the ETS, compensation takes place automatically

Staircase function

Times, brightness values and alarm functions can be programmed in the ETS

Scenes

Scenes can be combined with other KNX products such as actuators, KNX sockets, etc. This allows comprehensive scenes to be realized at the touch of a button

KNX push-button Function

With the integrated push-button function, an inexpensive 230Vac push-button can be used for control.

Operating hours meter, consumption meter

Get total control over the LED power supplies used in the building. Find out how long the individual LED converters have been in operation and how much power the individual luminaires have consumed.

Technical data

• Plastic housing
• Protection class II without earth connection
• Flicker-free according to IEEE1789/ErP
• EL certified for emergency lighting operation
