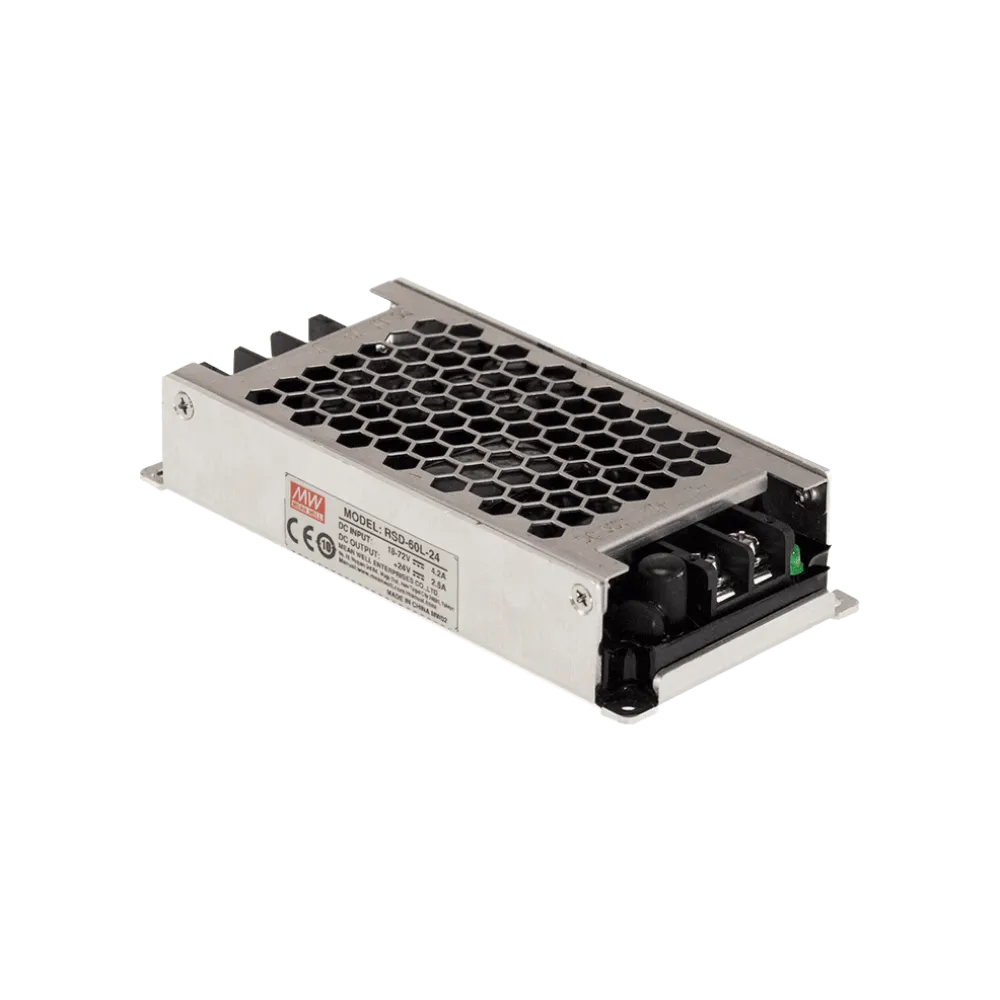

60W DC/DC Converter, Input 40…160V, Output 12V/5A

RSD-60 is a enclosed type DC-DC reliable railway converter. This series has the capability of working under -40°C to +70°C, low ripple and noise, supreme EMC characteristics, 4KVDC I/P-OP, low enclosure profile 25mm and an interior with semi-potted silicone. It does not only well fits the in-car systems or the facilities by rails for railway, trams and buses but also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature.

Technical data

• 4:1 wide input range
• 4000Vdc I/O Isolation
• Cooling by free air convection
• Half encapsulated
• Built-in Constant Current Limiting
• Compliance to EN50155 and EN45545-2 railway standard
• All using 105°C long life electrolytic capacitors
• Dimension 128 x 60 x 25mm (L x B x H)
• 3 years warranty
• Manufacturer: MEAN WELL
