About the product

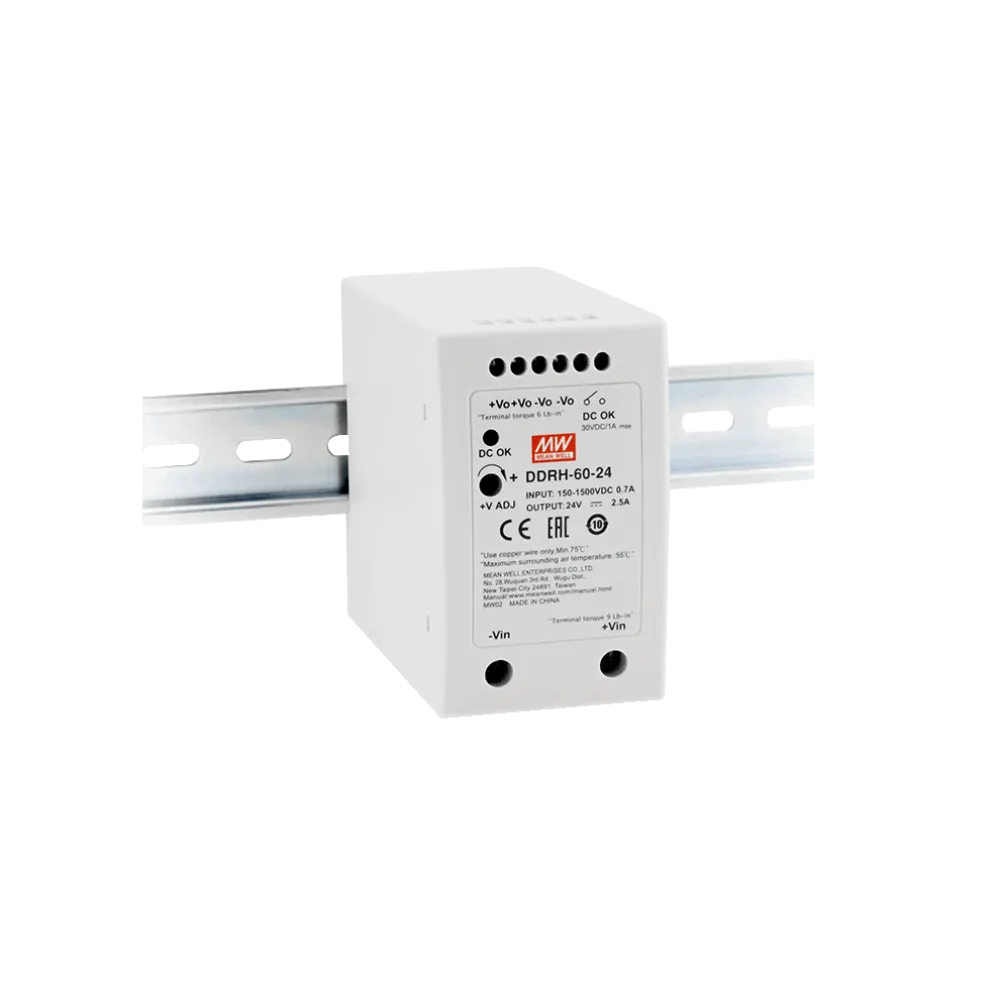

DDRH-60 series is a 150 to 1500VDC ultra high input DIN rail DC-DC Converter.
Technical data
- 150 to 1500Vdc 10:1 ultra wide input range
- 4KVac I/O isolation
- Can be installed on DIN Rail TS-35/7.5/15
- -30°C to +80°C operating temperature (>+55°C derating)
- Over Voltage Category II
- DC OK relay contact
- Dimension 57 x 93.5 x 105mm (W x H x D)
- 3 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Depth | 105 mm |
| Manufacturer | MEAN WELL |
| Application | Photovoltaic |
| Height | 93.5 mm |
| Width | 57 mm |
| Additional functions | DC OK signal |
| I/O isolation | 4000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 150-1500 V |
| Nominal input voltage (VDC) | 800 V |
| Output current | 2500 mA |
| Power | 60 W |
| Manufacturer warranty | 3 years |
