About the product

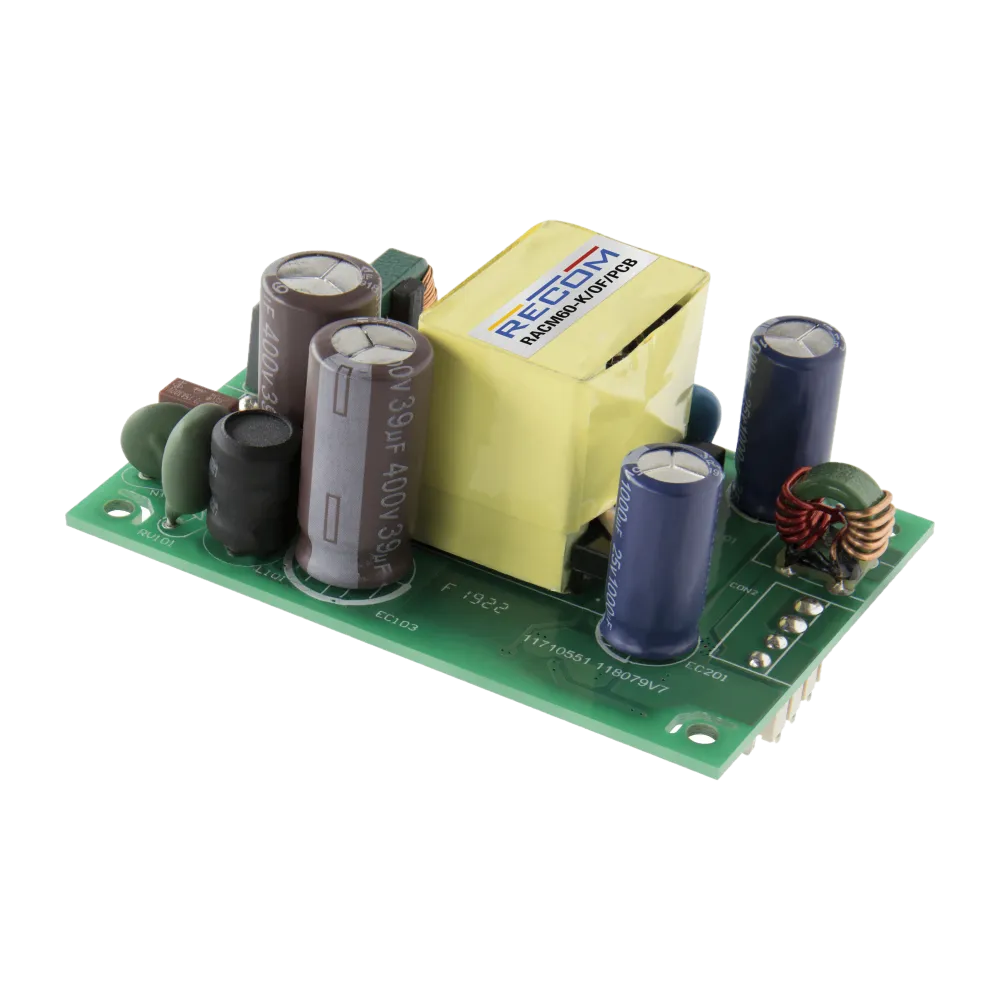

The multi-purpose, industrial + household + medical grade AC/DC converter series RACM60-K/OF delivers 60 Watts of output power from -40°C to +55°C with natural air convection only, and up to +85°C with derating or forced cooling. With a clear focus on extended thermal performance for systems where space is limited, these 2" x 3" compact modules are designed to gain highest overall efficiency levels over the full output load range from universal AC inputs. The RACM60-K/OF has ANSI/AAMI/IEC 60601-1 medical safety and EN 60601-1-2 medical EMC certifications and offers 4kVAC/1 min isolation, 2MOPP and designed to meet B and BF requirements. It is additionally certified to IEC/EN62368-1(CB Report) and IEC61558-1/-2-16 for industrial applications and IEC/EN60335-1 for household appliances. The robust built-in Class B EMC filter has sufficient margin to allow both Installation Class II or Class I PELV with grounded output. A range of mechanical fixing options makes the RACM60 suitable for many different mounting conditions: the standard chassis mount part mates with Molex connectors and the /PCB option permits direct installation in printed circuit boards. Additionally, a 2" x 4" footprint for backwards-compatibility with legacy designs is available on request.
Technical data
- Input Range: 80-264VAC or 80-305VAC
- Temperature range: -40 to +85°C with derating
- Over voltage category OVC III
- 2MOPP medical certified B and BF compliant
- Class B EMC filter built-in
- 4000m/5000m (medical/ITE) operating altitude
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Recom |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, OVC III, UL60601-1 / Medical |
| Input voltage range (VAC) | 80-264 V |
| Height | 35.4 mm |
| Width | 53 mm |
| Length | 78.4 mm |
| Application | ITE/AV, Medical |
| Power | 60 W |
| Efficiency | 90.00% |
