About the product

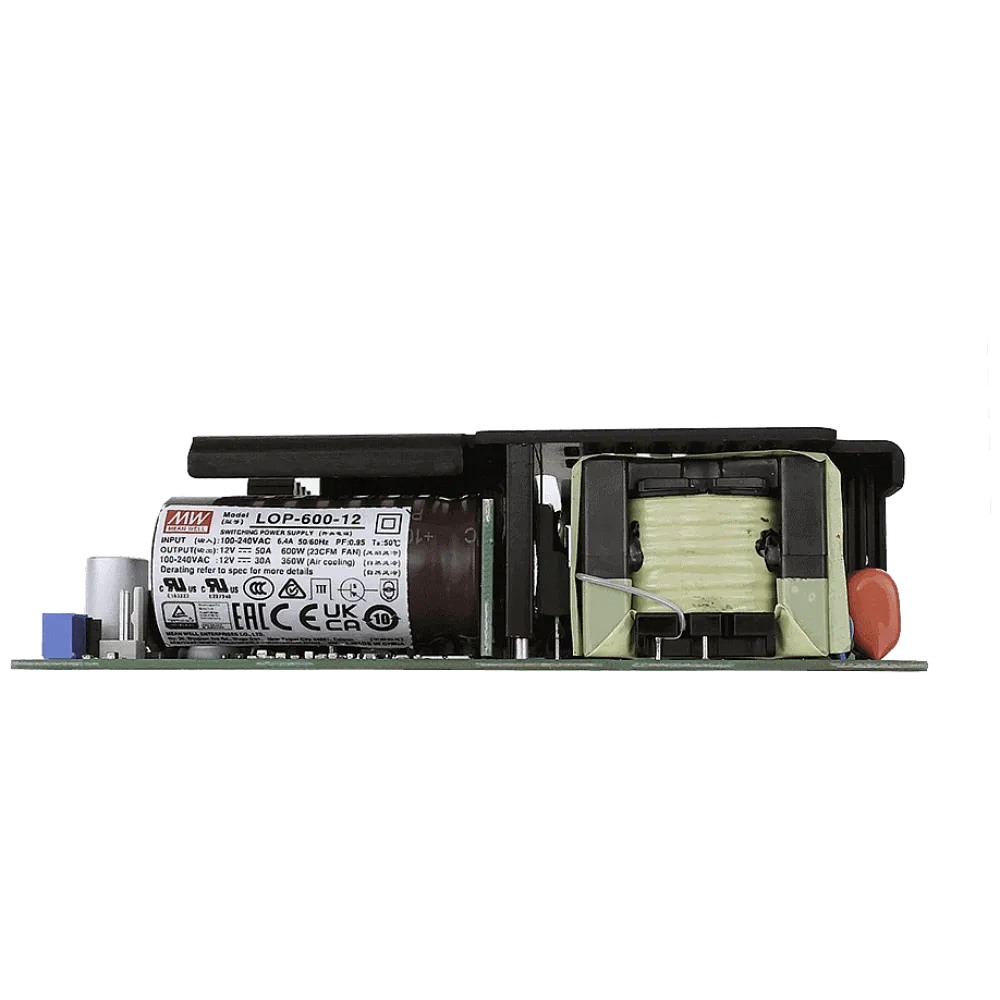

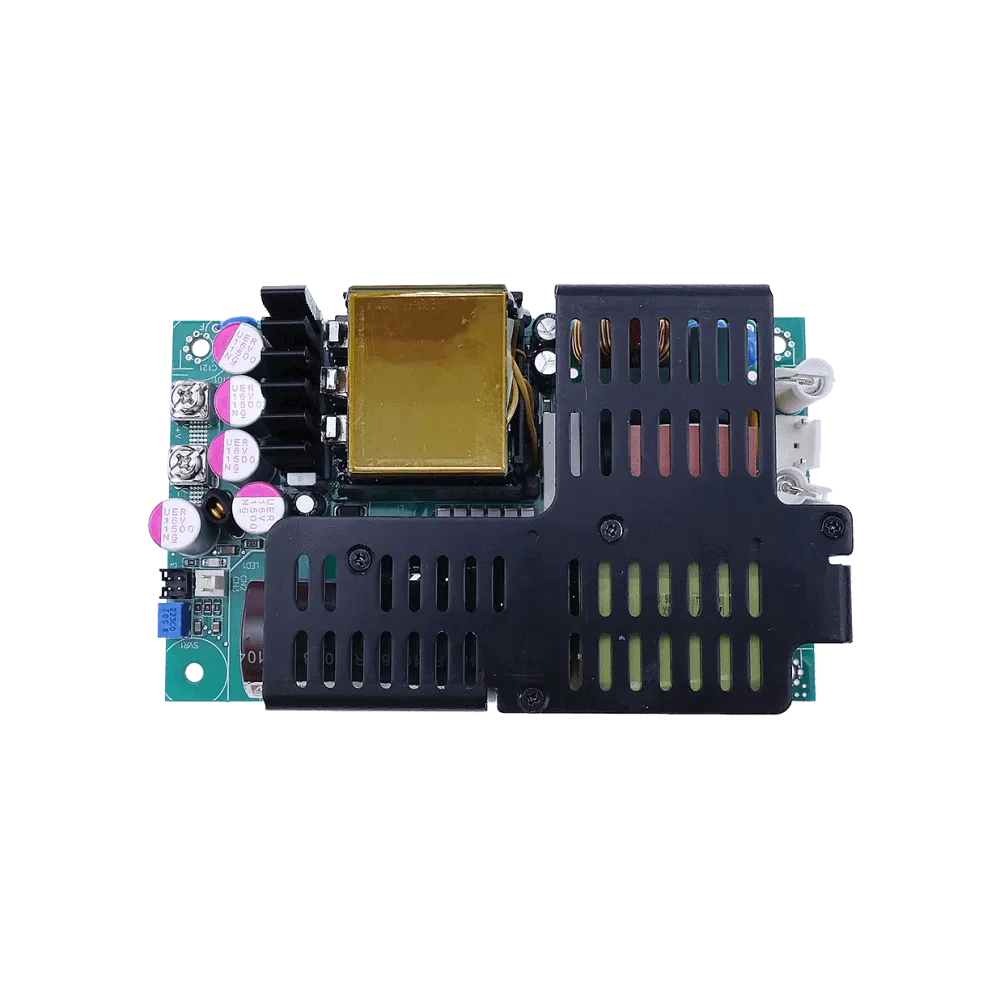

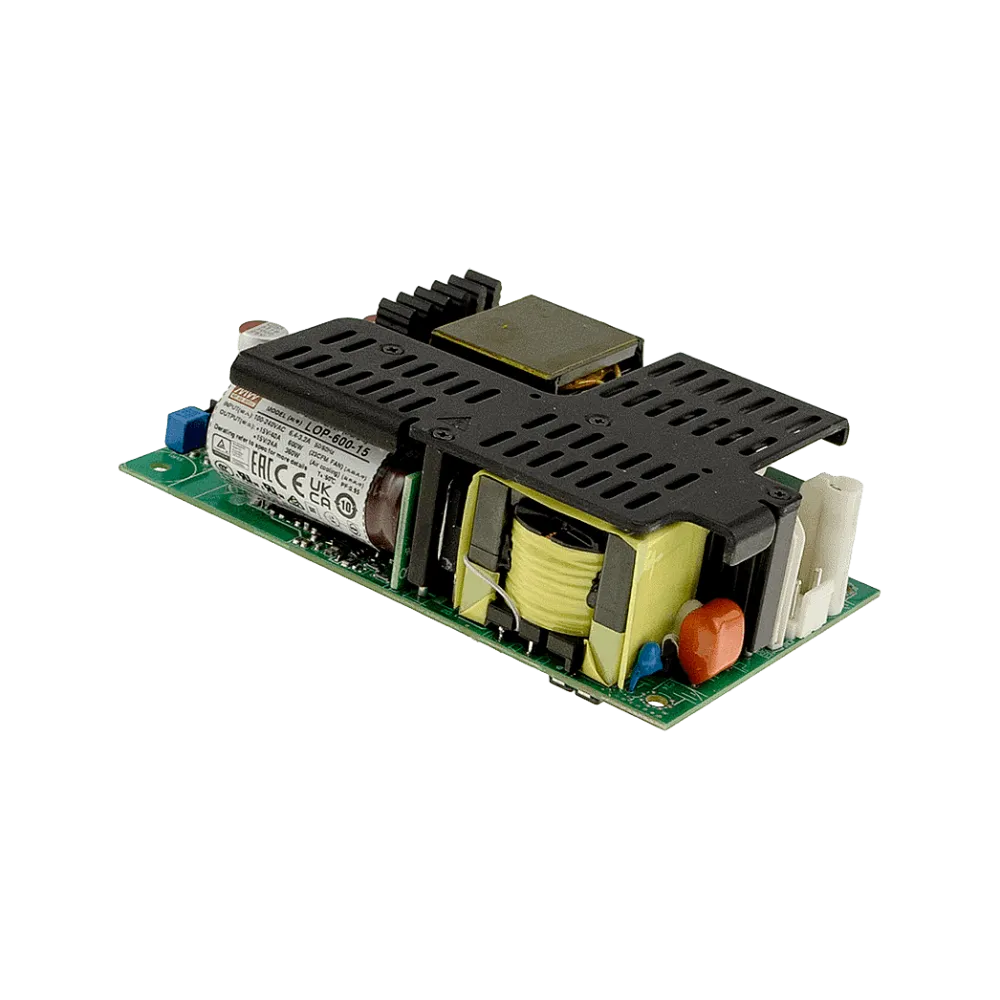

LOP-600 is a 5 "x3" 600W open frame power supply with low height and high power density. The power supply can be used in both Class I and Class II applications. Comprehensive safety approvals for ITE, household and medical applications make the LOP-600 a high-performance power supply unit for a wide range of applications.
Technical data
- 5 "x3" Power supply with only 33.5mm height
- 80-264Vac wide input range with PFC
- Global certifications for ITE, household and medical applications
- 150% peak load for 3 seconds
- 140W convection cooled, 200W with forced ventilation
- Overvoltage category III (OVC III)
- -40 to +80°C Operating temperature range
- Leakage current < 500uA
- Approved operating altitude 5000M
Product specifications
| Output voltage (VDC) | 54 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | 12V DC auxiliary output, Peak Power |
| Control signals | Remote sense |
| Height | 33.5 mm |
| Width | 76.2 mm |
| Length | 127 mm |
| Protection class | Class I, Class II |
| Standard size | 3 x 5 inches |
| Application | Household, ITE/AV, Medical |
| Power | 600 W |
| Efficiency | 95.00% |
