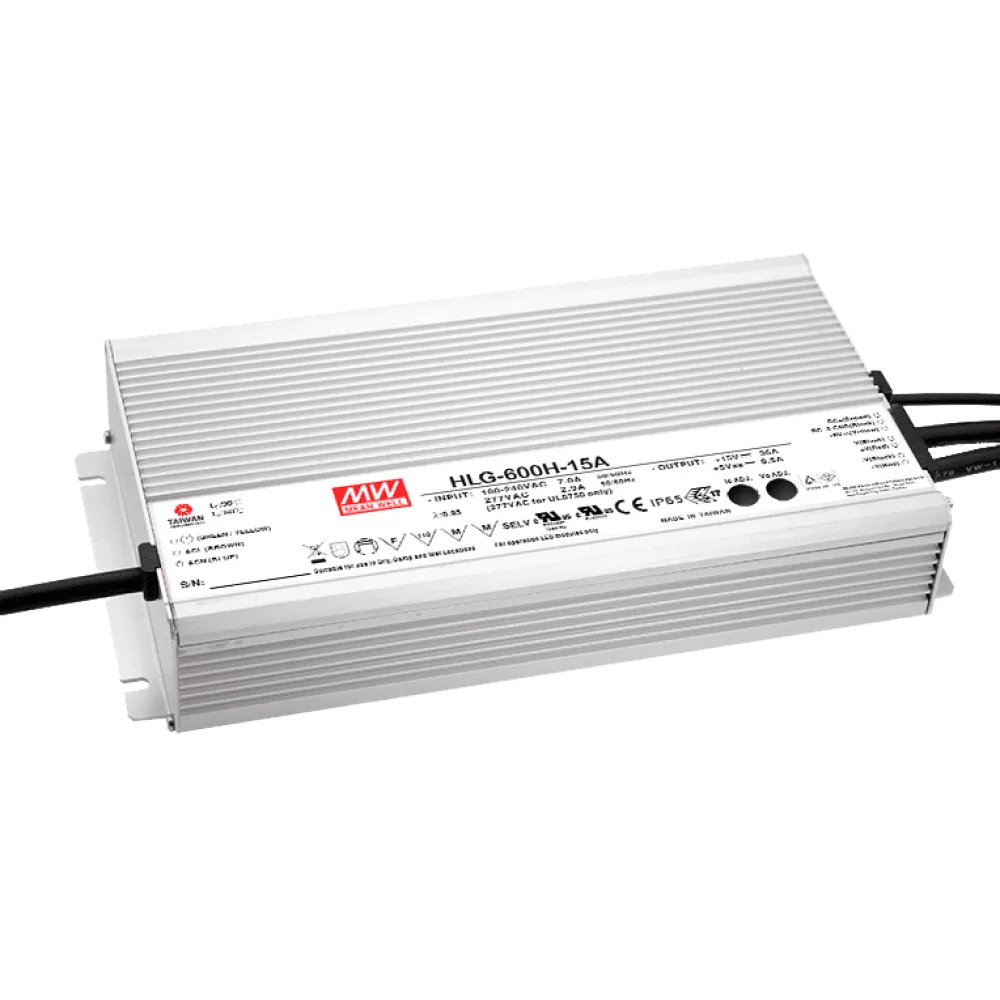

About the product
HLG-600H-AB series is a combination of "A" and "B" type. Current and voltage is adjustable through built-in potentiometer and for external dimming the current level can be adjusted by built-in 3in1 dimming function
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- Output voltage and constant current level can be adjusted through internal potentiometer
- Constant current level can be adjusted through 0-10Vdc / PWM signal or Resistance
- IP65 for indoor and outdoor installations
- High reliable driver with long lifetime
- Fully encapsulated metal housing
- Suitable for dry, damp, and wet location
- Type HL LED driver for use in class I, division 2 hazardous location luminaires
- Meet 4kV surge immunity level (IEC61000-4-5)
- Lifetime >62’000 hours
- Dimension 280 x 144 x 48.5mm (L x W x H)
- 7 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 7 years |
| Product series | HLG |
| Input voltage range (VAC) | 100-277 V |
| Additional functions | Current/voltage setting on unit |
| Connection | Cable |
| IP protection | IP65 |
| Height | 48.5 mm |
| Width | 144 mm |
| Length | 280 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Control | Resistor, 0-10V, 1-10V, PWM control signal |
| Channels | 1 |
| Output current | 25 A |
| Power | 600 W |
| Manufacturer | MEAN WELL |
