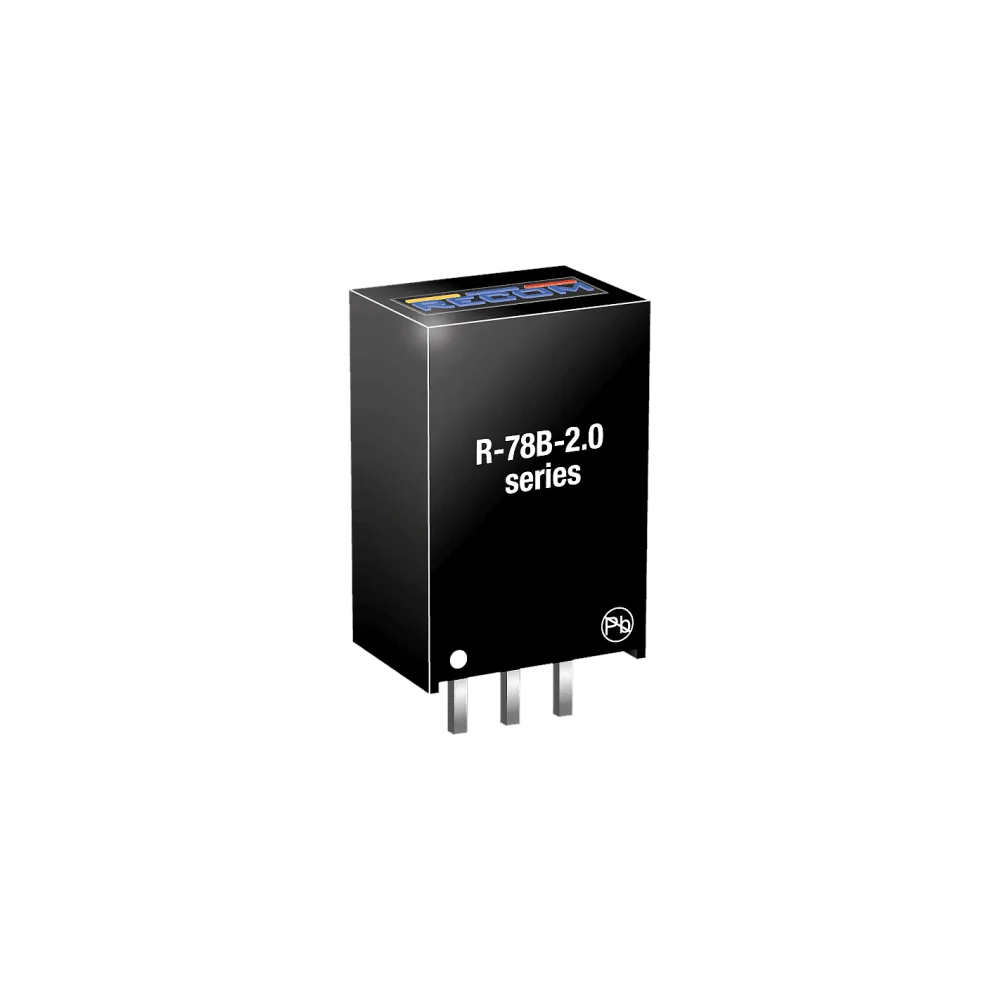

6.6W DC/DC-Converter, Input 4.75…32V, Output 3.3V/2000mA, SIP3

The R-78Bxx-2.0 series high efficiency switching regulators are ideally suited to replace 78xx linear regulators and are pin compatible. The efficiency of up to 96% means that very little energy is wasted as heat. Full power is available over a temperature range of -40°C up to 70°C without the need for heatsinks with their additional space and mounting costs. A high input voltage of up to 32VDC and output voltages from 1.2V up to 15V, low ripple and noise figures and a short circuit input current of typically only 50mA round off the specifications of this versatile converter series.

Technical data

• Efficiency up to 96%, no need for heatsinks
• 2A continuous output current
• Vin up to 32V
• Vout: 1.2V – 15V
• Wide operating temperature -40°C to +70°C at full load
• Continuous short circuit protection
• Pin compatible with TO220 linear regulators
• Positive to negative
