About the product

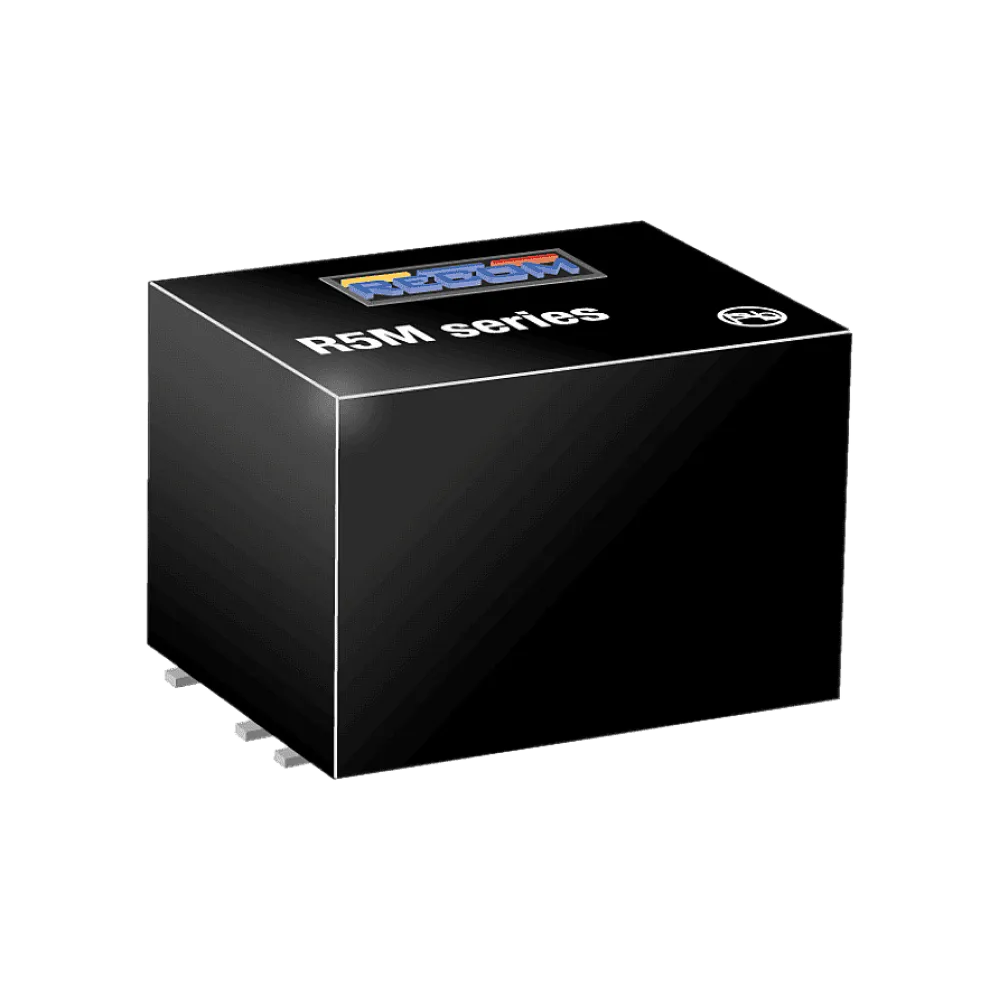

The R5M is an isolated 5W DC/DC converter in a compact SMD package available with 4:1 inputs covering 12, 24 and 48V rails providing single or dual regulated, short-circuit protected outputs. There is no minimum load requirement. Isolation is 1.6kVDC/1min, and the operating temperature is from -40°C up to +50°C without derating. Class A and Class B EMC conformity requires only a few external components.
Technical data
- 5W power in SMD package
- 4:1 Input voltage range
- Efficiency up to 86%
- 1.6kVDC/1min isolation
- Regulated output
- -40°C to +50°C at full load
- Continuous short circuit protected
Product specifications
| Output voltage (VDC) | 5 V |
| Temperature range | -40°C to 50°C |
| Manufacturer | Recom |
| Application | ITE/AV |
| Height | 10.2 mm |
| Width | 9.1 mm |
| Length | 14.2 mm |
| Package / case | SMD8 |
| Additional functions | Remote ON/OFF |
| Regulation | Regulated |
| I/O isolation | 1600 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 9-36 V |
| Nominal input voltage (VDC) | 12-24 V |
| Output current | 1000 mA |
| Power | 3 W |
| Efficiency | 81.00% |
