About the product

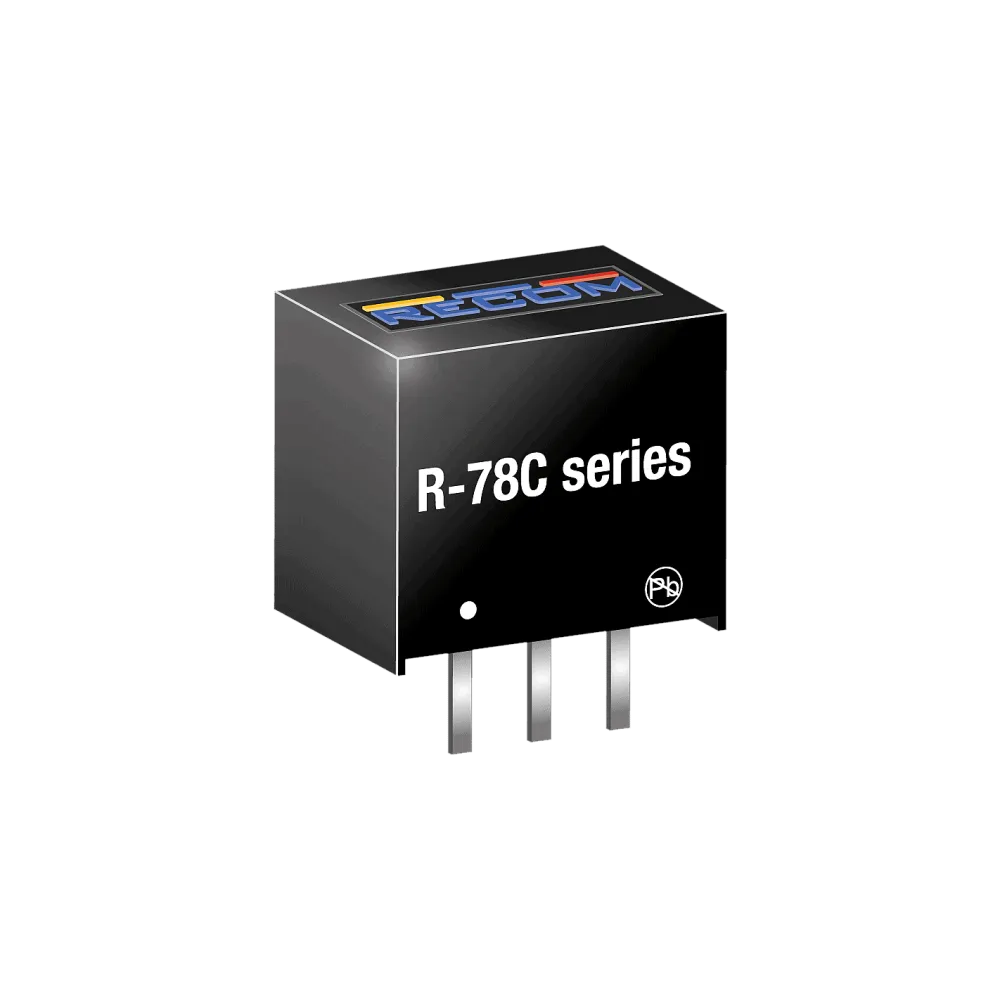

The R-78Cxx-1.0 series switching regulators are ideally suited to replace 1 Amp 78xx linear regulators and are pin compatible. Efficiencies of up to 96% means that very little energy is wasted as heat and the high input voltage is a useful feature.
Technical data
- Efficiency up to 96%, no need for heatsinks
- Pin-out compatible with LM78XX linears
- Low profile (L*W*H=11.6*8.5*10.4mm)
- Wide input range (5V – 42V)
- Short circuit protection, thermal shutdown
- Low ripple and noise
- IEC/EN60950 certified
Product specifications
| Output voltage (VDC) | 5 V |
| Temperature range | -40°C to 68°C |
| Manufacturer | Recom |
| Height | 10.4 mm |
| Width | 8.5 mm |
| Length | 11.5 mm |
| Package / case | SIP3 |
| Regulation | Regulated |
| I/O isolation | Non isolated |
| Input voltage range (VDC) | 8-42 V |
| Nominal input voltage (VDC) | 9-36 V |
| Output current | 1000 mA |
| Power | 5 W |
| Efficiency | 93.00% |
