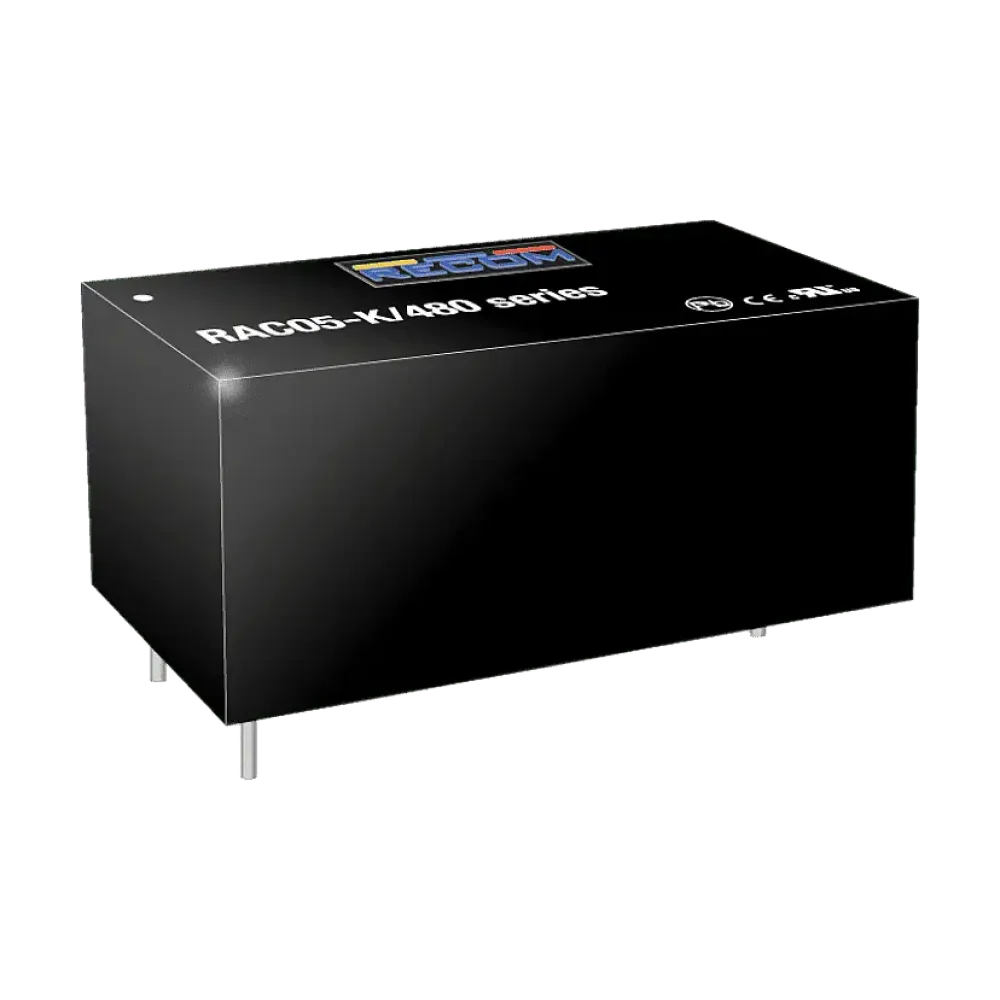

5W AC/DC power supply unit, PCB mounting, 12V/420mA

The RAC05-K/480 series 5 Watt AC/DC devices are specifically designed for harsh industrial and outdoor power conditions. These PCB-mounted power supplies are designed for OVC III conditions from 100-480VAC nominal input lines with phase-to-phase or single-phase operation without the need for external components. The modules support an operating temperature range of -40°C to +80°C and feature fully protected outputs and Class B EMC compliance. All these features make them an ideal solution for integration into smart grid, renewable energy, smart metering and IoT applications.

Technical data

• Ultra-wide input range 85-528VAC
• OVC III input power without additional fuses
• Operating temperature range: -40°C to +80°C
• Overvoltage and overcurrent protection
• Class II installations (without FG)
• EMC-compliant without external components
• Power consumption without load <0,5W
