About the product

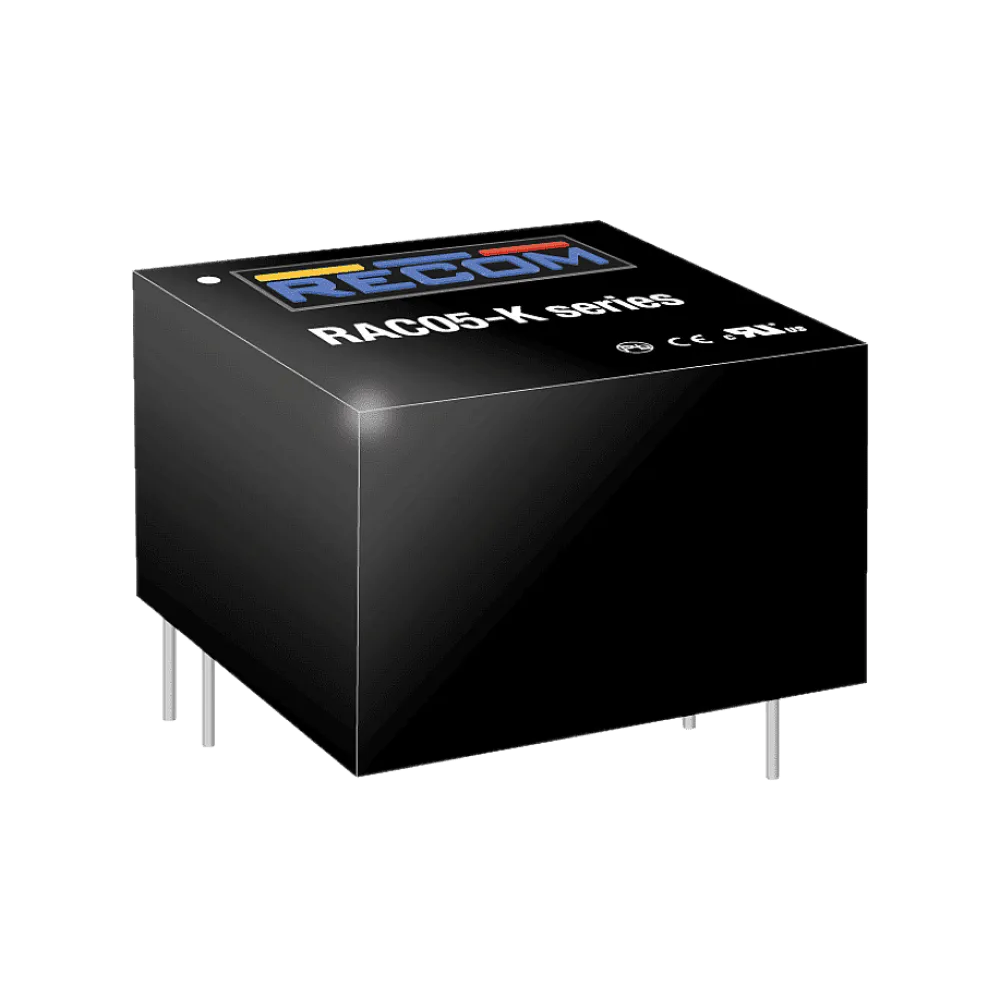

The RAC05-K series are ultra-compact AC/DC power supply modules in lightweight fully-encapsulated plastic casing. Beside safety approvals for industrial and IT solutions IEC60950-1 and UL62368-1, the units meet EN55032-"B" limits without any external components. Integrated fusing as well as electrical protections against short circuit and over voltage are on board. With their excellent efficiency over the entire load range including light load standby conditions, these power modules are especially suitable for IOT applications and control equipment.
Technical data
- High efficiency over entire load range
- Class II installations (without FG)
- 5W on 1" x 1" footprint
- Internal EMC class B filter
- No external components necessary
- Electrical Protection
Product specifications
| Output voltage (VDC) | 3.3 V |
| Manufacturer | Recom |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Input voltage range (VAC) | 85-264 V |
| Height | 16.5 mm |
| Width | 25.4 mm |
| Length | 25.4 mm |
| Application | ITE/AV |
| Power | 5 W |
| Efficiency | 76.00% |
