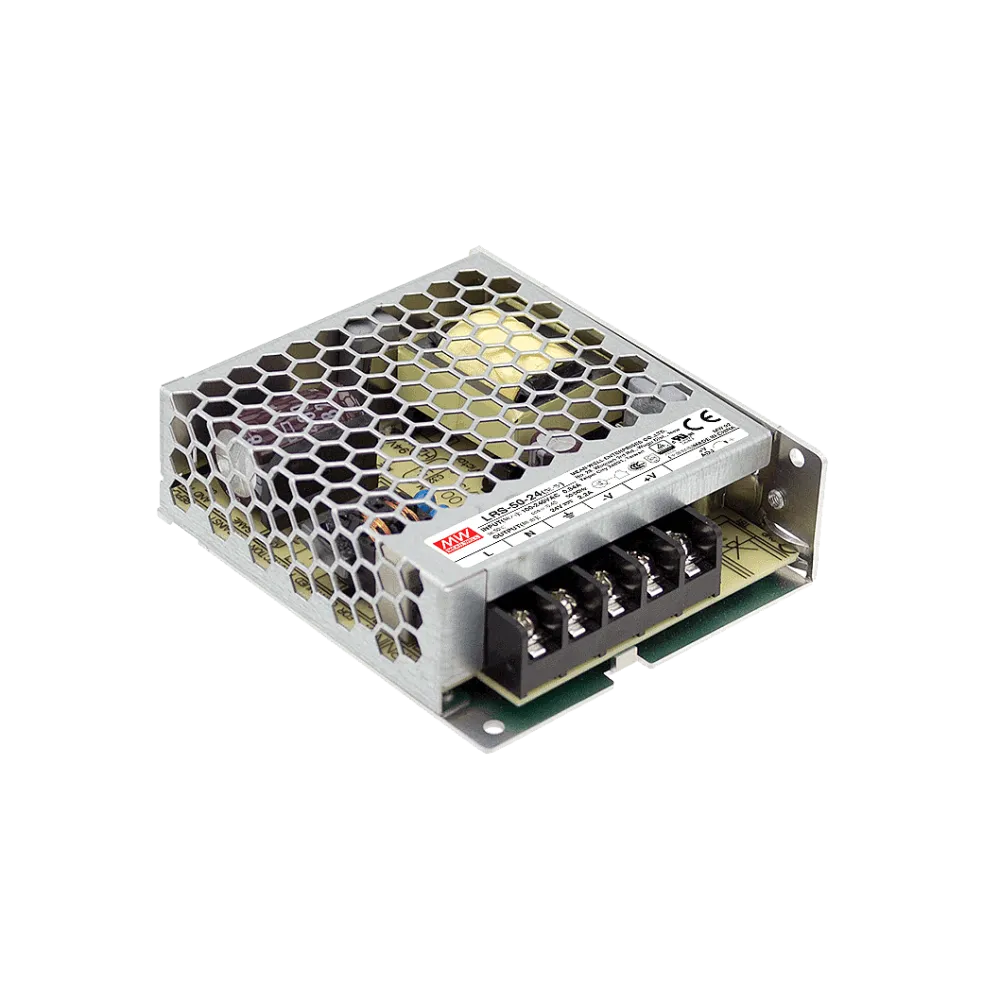

52W Enclosed Power Supply 36V/1.45A
Technical data
- Universal AC input 85 to 264Vac
- No load power consumption <0.2W
- Enclosed type
- Compliance to IEC/EN60335-1 and IEC/EN61558-1,-2-16 for household appliances
- Operating altitude up to 5000 meters
- Working temperature range -30°C to +70°C
- Withstand 300Vac surge input for 5 sec.
- Withstand 5G vibration test
- Dimension 99 x 82 x 30mm (L x W x H)
- 3 Years Warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Application | Household, ITE/AV |
| Voltage setting range | 32.4-39.6 VDC |
| Height | 30 mm |
| Width | 82 mm |
| Length | 99 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 52 W |
| Efficiency | 89.00% |
