About the product

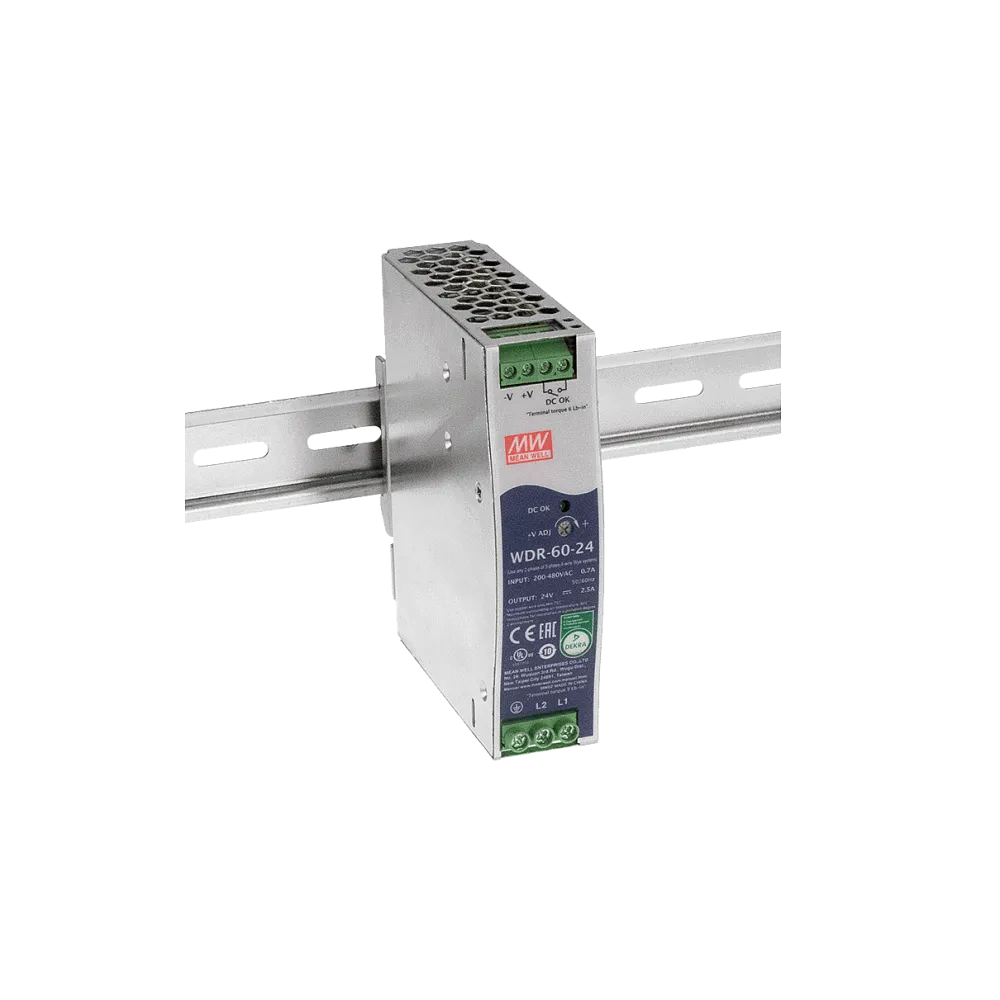

WDR-60 series is a DIN rail power supply with ultra-wide AC input range from 180 to 550Vac for single phase or 2-phase system.
Technical data
- 1+2 Phase wide input range 180 to 550Vac
- Can be installed on DIN Rail TS-35/7.5/15
- Operating temperature -30°C to +85°C
- Over voltage category III
- LED Indication for DC OK
- Built-in DC OK relay contact
- Dimension 32 x 125.2 x 102mm (W x H x D)
- 3 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 5 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Product series | WDR |
| Status signals | DC OK relay contact |
| Overload characteristics | Constant current limiting |
| Certificates | EN61558-2-16, UL61010 |
| Depth | 102 mm |
| Height | 125.2 mm |
| Width | 32 mm |
| Input voltage range (VAC) | 180-550 V |
| Output current | 10 mA |
| Power | 50 W |
| Efficiency | 83.00% |
