About the product

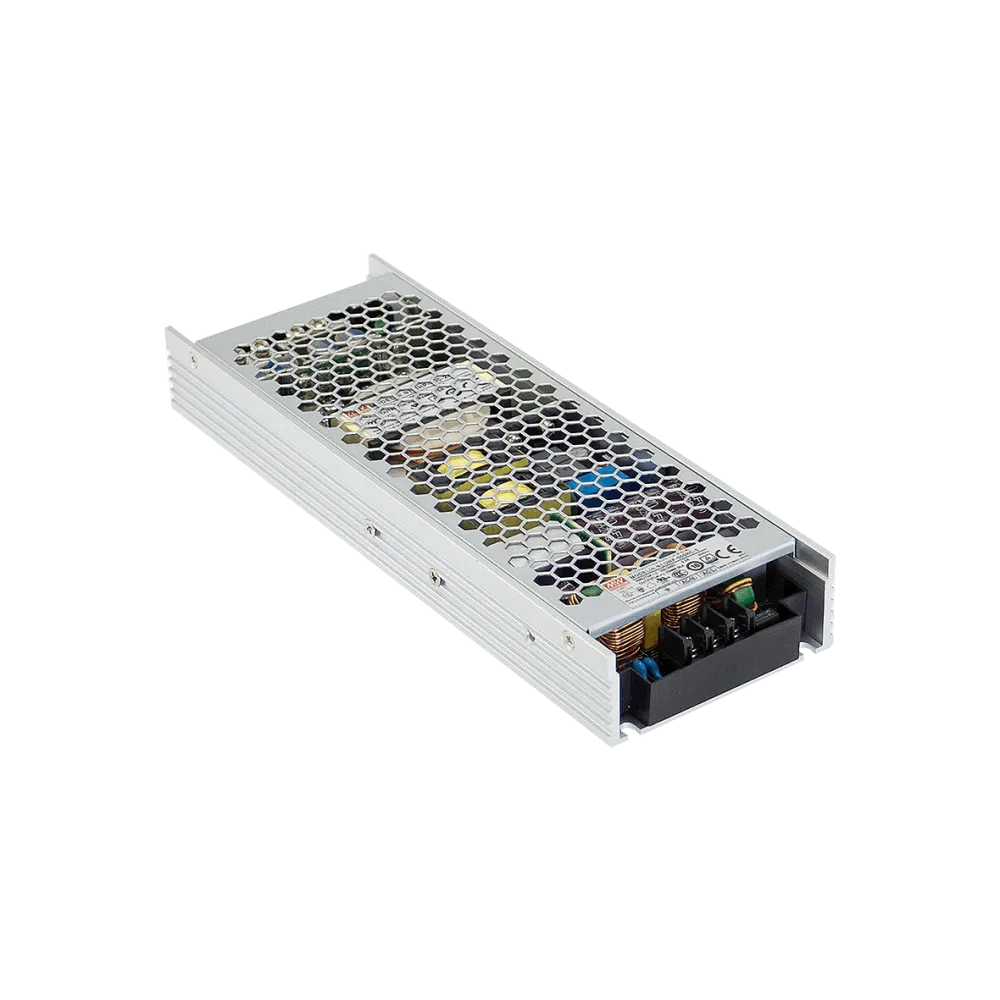

UHP-500-48 is a single-output slim type power supply with 31mm of low profile design. UHP-500 has the complete protection functions and 5G anti-vibration capability;It is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL62368-1 and GB4943. UHP-500 series serves as a high performance power supply solution for various industrial applications.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Fanless design with conduction cooling
- Slim and Low profile (31mm)
- Working temperature range -30°C to +70°C
- Withstand 300Vac surge input for 5 sec.
- Operating altitude up to 5000 meter
- Dimension 232 x 81 x 31mm (L x W x H)
Product specifications
| Output voltage (VDC) | 48 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Application | Household, ITE/AV |
| Voltage setting range | 45.6-50.4 VDC |
| Height | 31 mm |
| Width | 81 mm |
| Length | 232 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 501 W |
| Efficiency | 94.00% |
Data sheets
