About the product

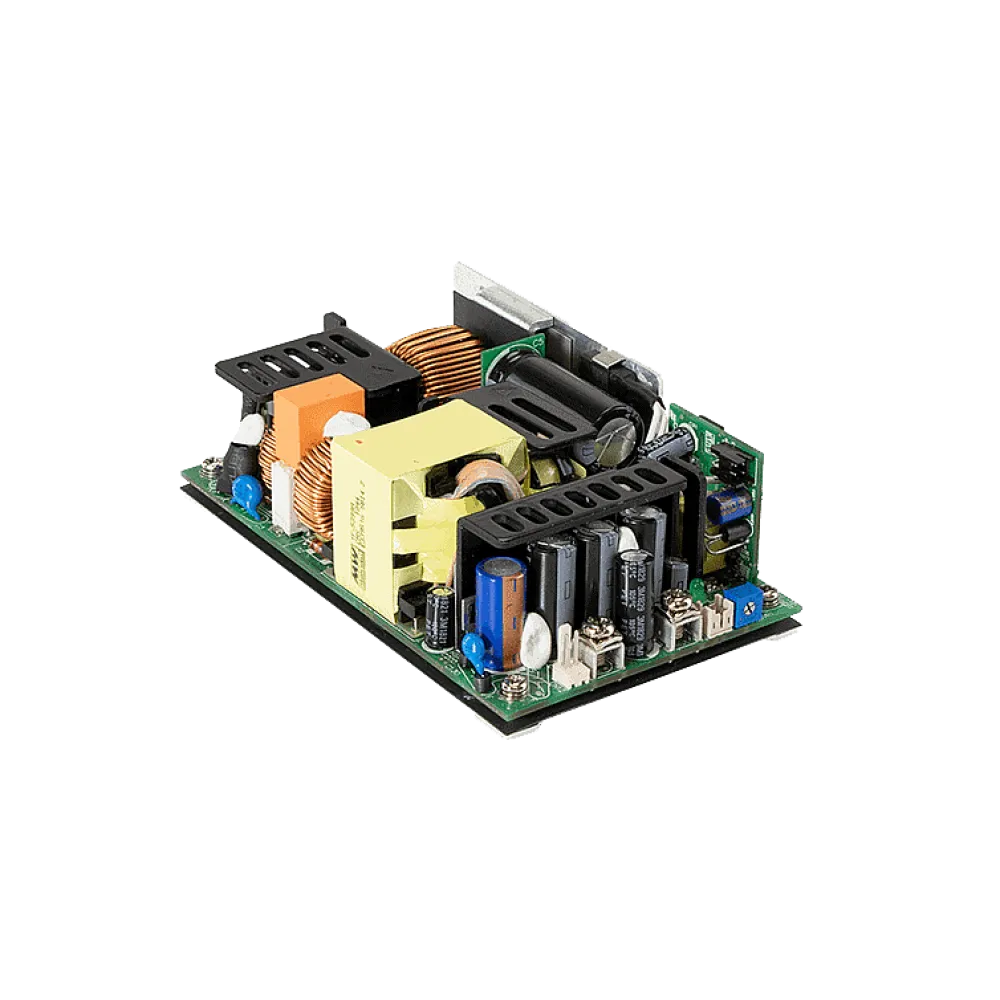

EPP-500 is a highly reliable green PCB type power supply with a high power density. It delivers up to 500W output power with external fan cooling.
Technical data
- Universal AC input 90 to 264Vac
- No load power consumption 0.5W
- 320W convection, 500W force air
- Power Good, Power Fail and remote sense
- Auxiliary output 12V/0.3A and 5V/0.6A
- Protection: short circuit, overload, overvoltage and overtemperature
- Dimension 127 x 76.2 x 35mm (L x W x D)
Product specifications
| Output voltage (VDC) | 54 V |
| Product series | EPP |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output, Peak Power |
| Status signals | Power good signal |
| Control signals | Remote ON/OFF, Remote sense |
| Height | 40 mm |
| Width | 76.2 mm |
| Length | 127 mm |
| Protection class | Class I, Class II |
| Standard size | 3 x 5 inches |
| Application | ITE/AV |
| Power | 500 W |
| Efficiency | 94.00% |
