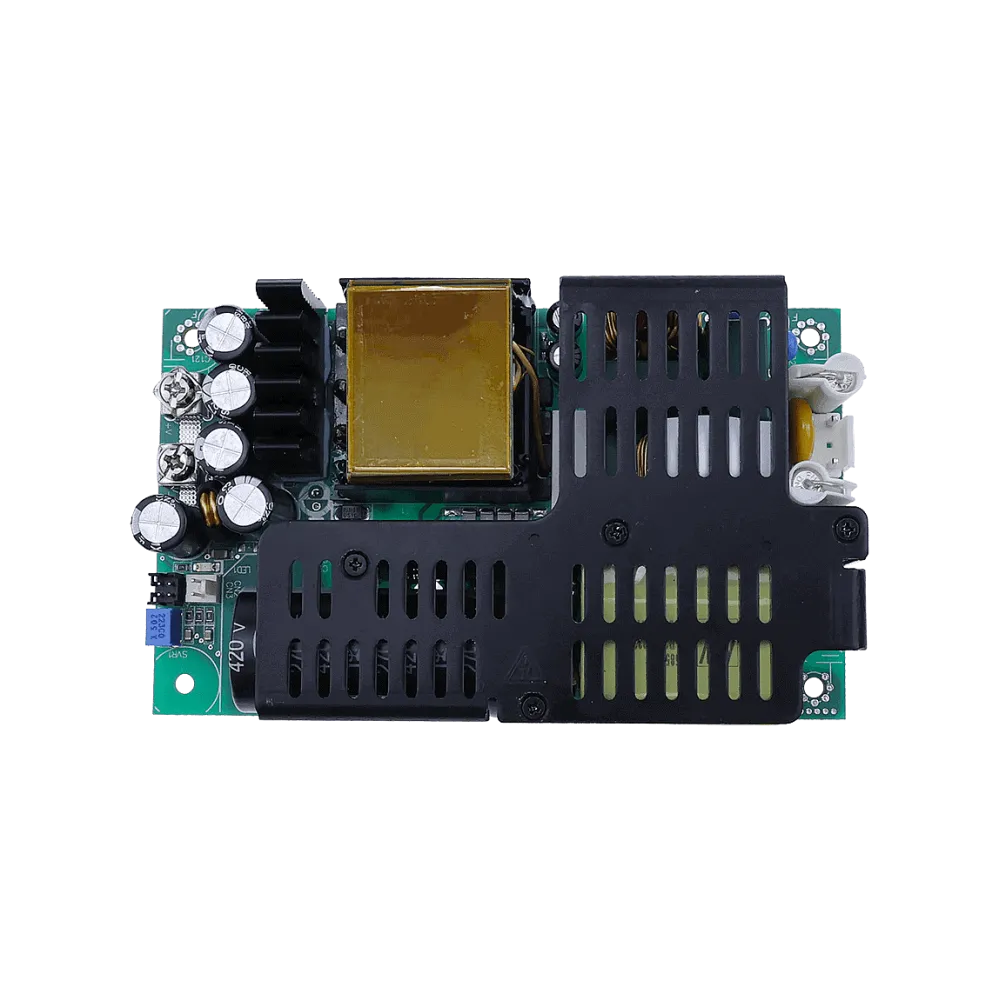

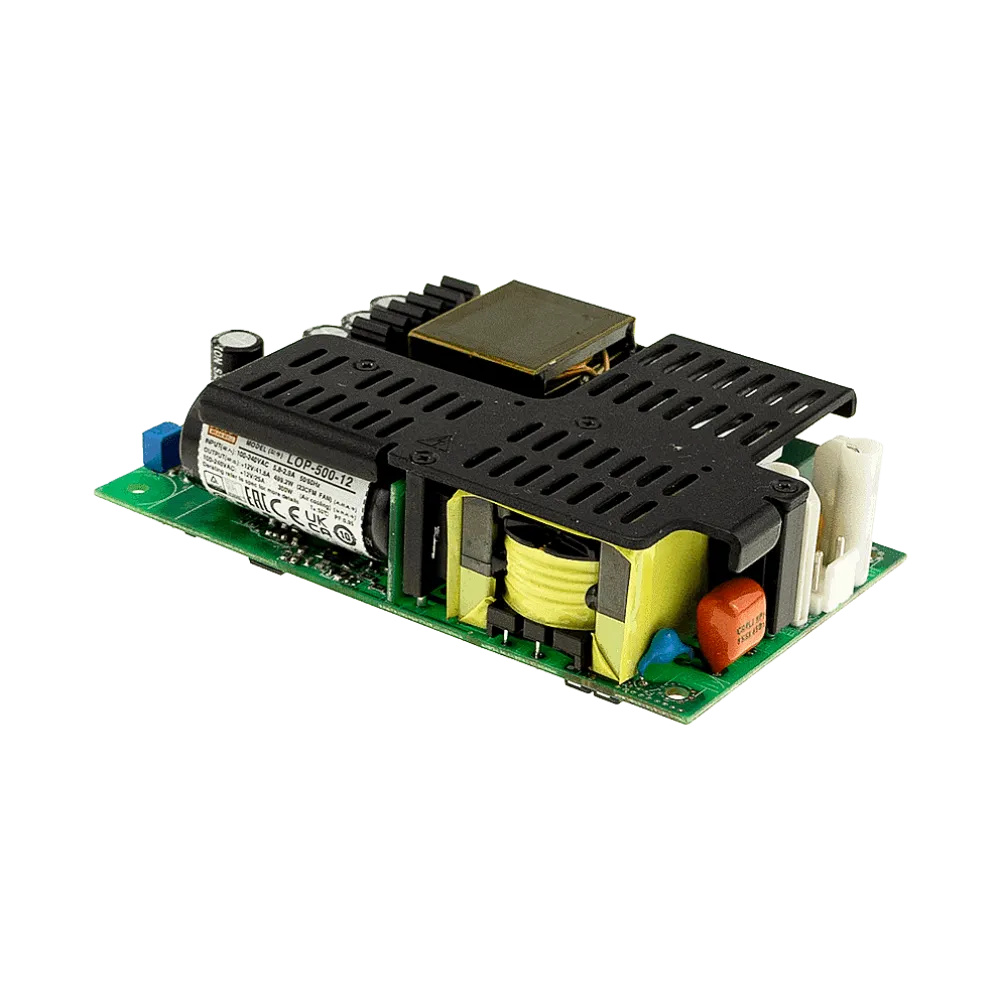

500W Open Frame Power Supply 48V/10.4A, ITE, Medical, Household

LOP-500 is a 5 "x3" 500W open frame power supply with low height and high power density. The power supply can be used in both Class I and Class II applications. Comprehensive safety approvals for ITE, household and medical applications make the LOP-500 a high-performance power supply unit for a wide range of applications.

Technical data

• 5 "x3" Power supply with only 30.5mm height
• 80-264Vac wide input range with PFC
• Global certifications for ITE, household and medical applications
• 150% peak load for 3 seconds
• 140W convection cooled, 200W with forced ventilation
• Overvoltage category III (OVC III)
• -40 to +80°C Operating temperature range
• Leakage current < 500uA
• Approved operating altitude 5000M
