About the product

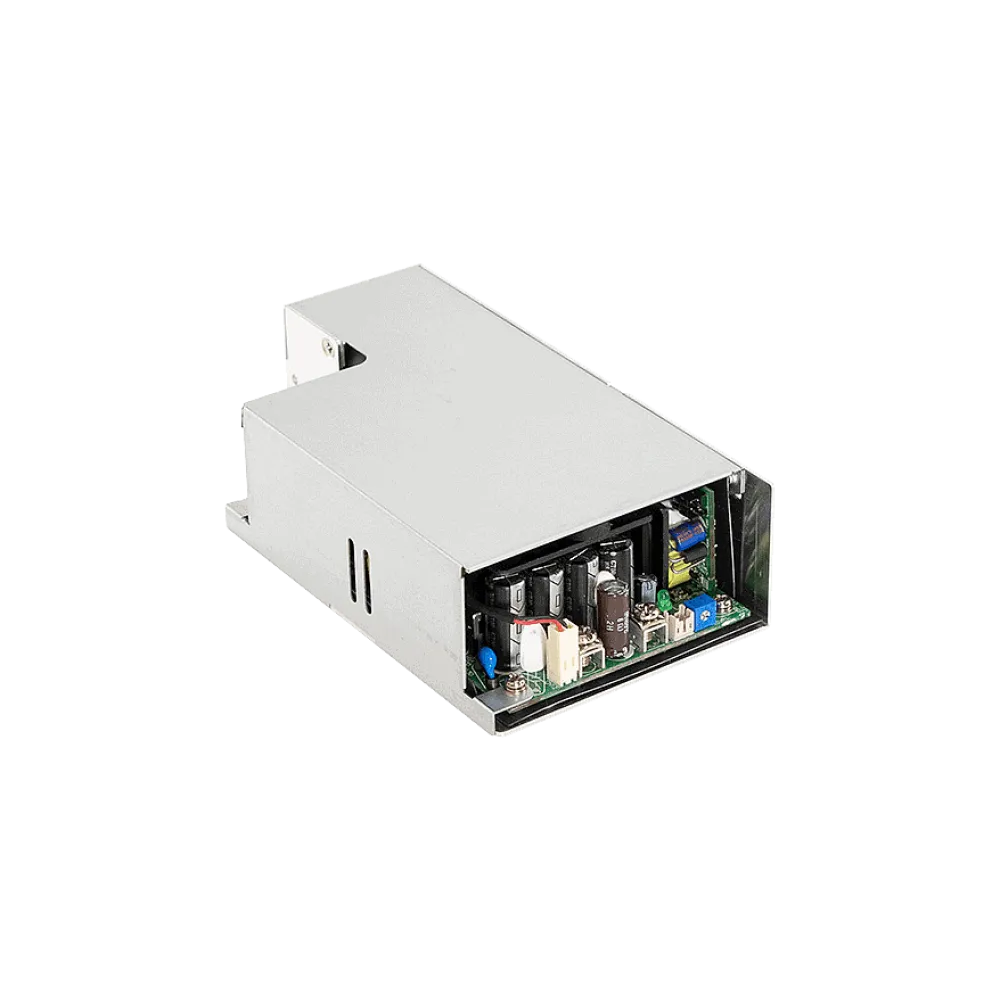

RPS-500-SF Series 500W High-Power Miniaturized 5"x3" Medical Grade Open Frame Power Supply. Enclosed type with fan on the side.
Technical data
- 5"x 3" high-power miniaturized design
- 2xMOPP isolation level, ultra-low leakage current 190μA, suitable for use in BF type medical applications
- Full range 80~264VAC input with built-in PFC function
- 500W with integrated fan, 550W peak load (3 seconds)
- Suitable for installation in Class I (with FG) systems
- No load power consumption 0.5W
- High efficiency up to 94%
- -30～+70℃ wide operating temperature range
- Operating altitude up to 4000 meters
- Protections: short circuit/overload/over voltage/over temperature
- Additional functions: 5Vsb and 12Vdc/0.5A auxiliary power, voltage compensation, P.G. and P.F. signals
- UL/cUL/TUV/EAC/CB/CE medical safety approved
- LED indicator for power on
- Dimensions (LxWxH): 160x86x43mm
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF, Remote sense |
| Status signals | DC OK signal |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Application | Household, Medical |
| Voltage setting range | 34.2-37.8 VDC |
| Height | 43 mm |
| Width | 86 mm |
| Length | 160 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 80-264 V |
| Power | 500 W |
| Efficiency | 94.00% |
