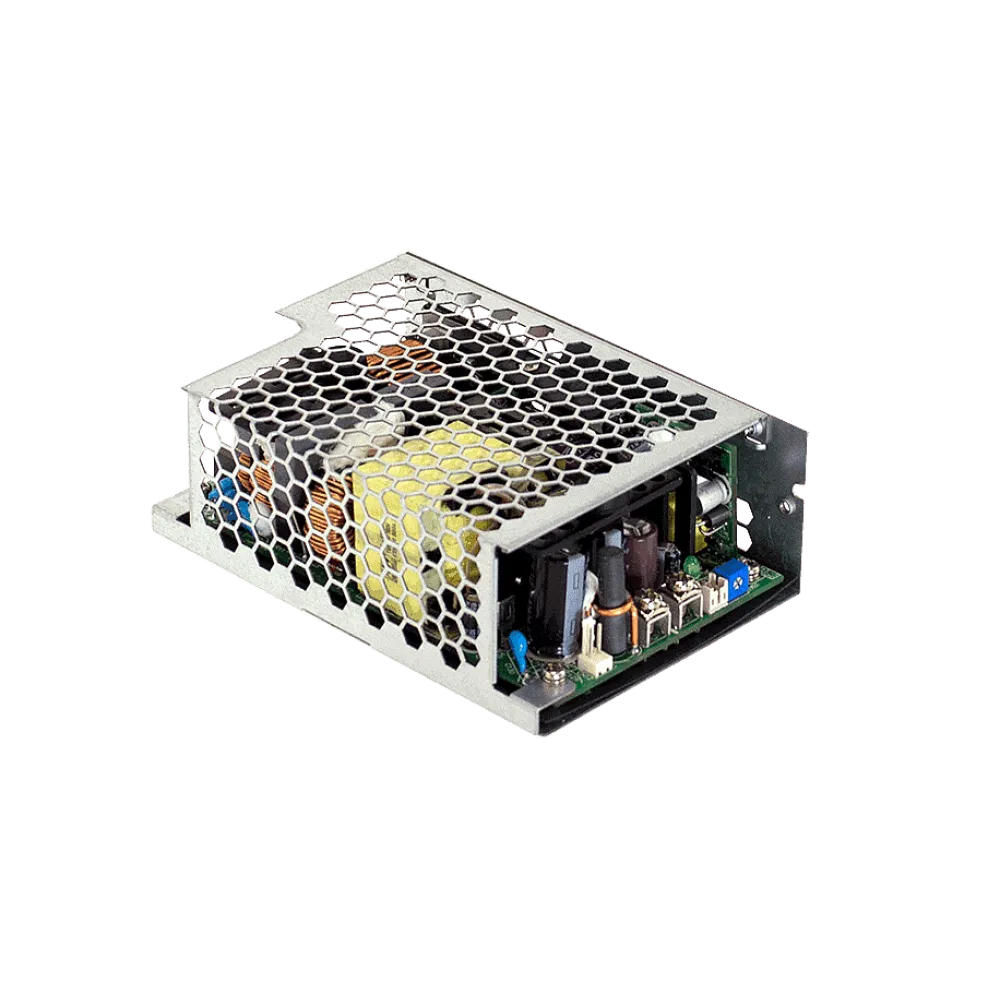

500W Medical Power Supply 18V/27.8A

RPS-500-C Series 500W High-Power Miniaturized 5"x3" Medical Grade Open Frame Power Supply. Enclosed casing type.

Technical data

• 5"x 3" high-power miniaturized design
• 2xMOPP isolation level, ultra-low leakage current 190μA, suitable for use in BF type medical applications
• Full range 80~264VAC input with built-in PFC function
• 310W with cooling by free air convection and 500W with 25CFM forced air, 550W peak load (3 seconds)
• Suitable for installation in Class I (with FG) systems
• No load power consumption 0.5W
• High efficiency up to 94%
• -30～+70℃ wide operating temperature range
• Operating altitude up to 4000 meters
• Protections: short circuit/overload/over voltage/over temperature
• Additional functions: 5Vsb and 12Vdc/0.5A auxiliary power, voltage compensation, P.G. and P.F. signals
• UL/cUL/TUV/EAC/CB/CE medical safety approved
• LED indicator for power on
• Dimensions (LxWxH): 130x86x43mm
