About the product

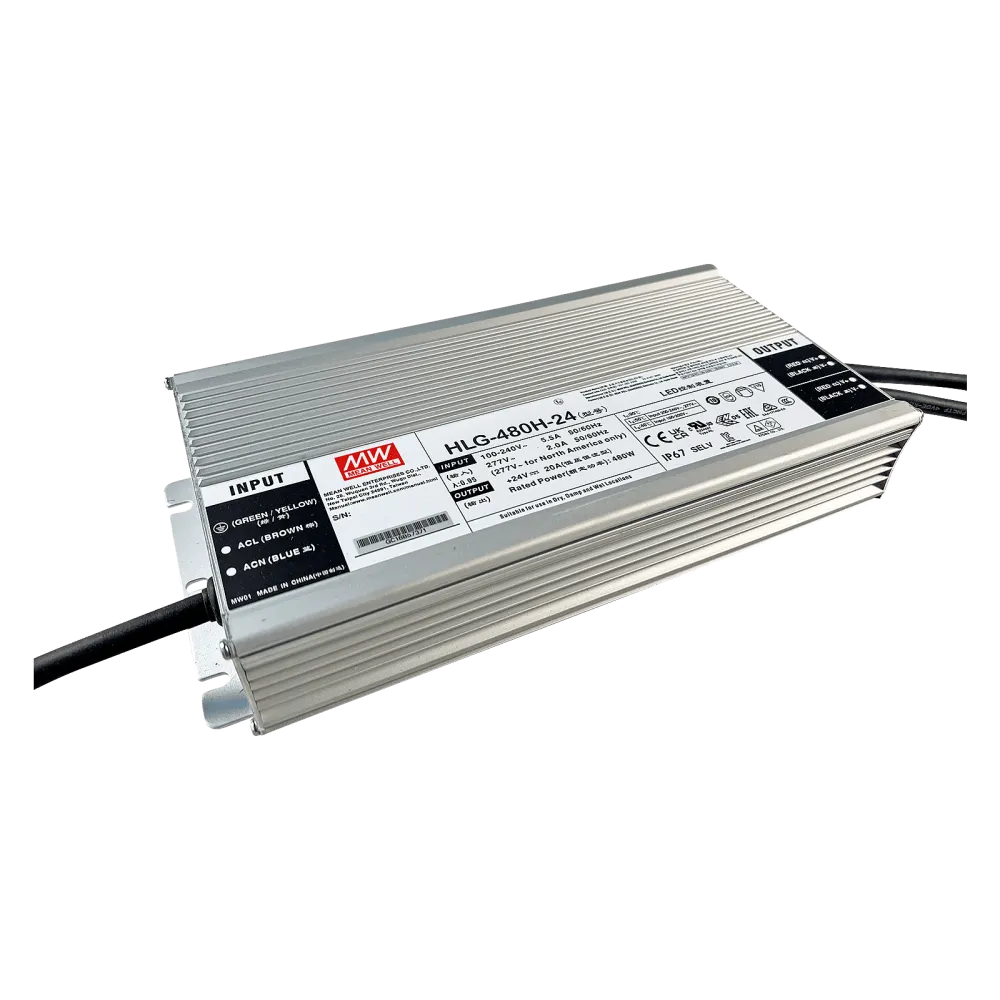

HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40°C to +90°C case temperature under free air convection.
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- IP67 for indoor and outdoor installations
- High reliable driver with long lifetime
- Fully encapsulated metal housing
- Suitable for dry, damp, and wet location
- Type HL LED driver for use in class I, division 2 hazardous location luminaires
- Meet 4kV surge immunity level (IEC61000-4-5)
- Dimension 262 x 125 x 43.8mm (L x W x H)
- Lifetime >62’000 hours
- 7 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 7 years |
| Product series | HLG |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 43.8 mm |
| Width | 125 mm |
| Length | 262 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 20 A |
| Power | 480 W |
| Manufacturer | MEAN WELL |
