About the product

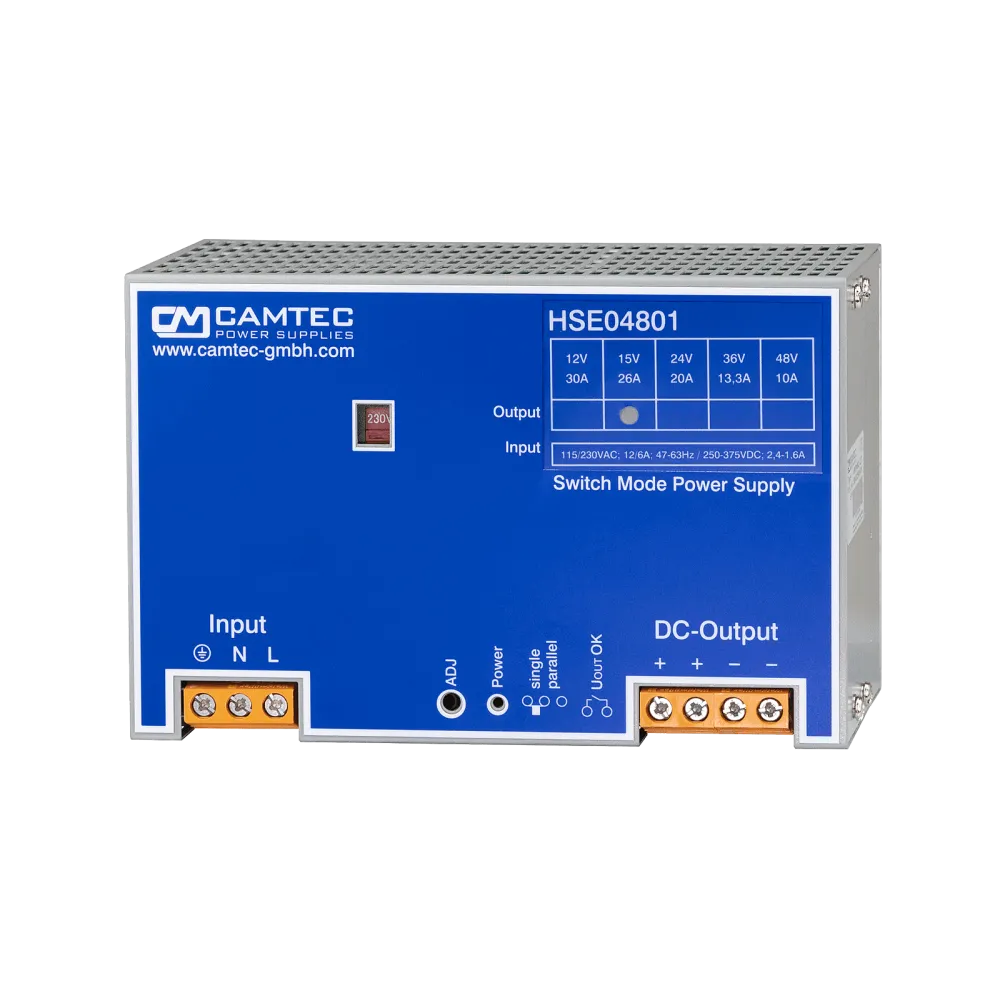

478W DIN Rail Power Supply 36V/13.3A
Technical data
- Universal AC input 90 to 132Vac / 184 to 264Vac via switcher
- Can be installed on DIN Rail TS-35
- Springterminal 0.5 to 12mm²
- Efficiency 91%
- Protection: zero load, short circuit, over- and undervoltage
- Operating temperature -20° to +60°C at full load
- Typical U/I-characteristic for complex loads like DC-Motors
- Serial und parallel operation
- Dimension 130 x 200 x 118mm (H x W x D)
- High reliable, shock- and vibration resistant
- 5 years warranty
- Fabricant: Camtec
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer | Camtec |
| Manufacturer warranty | 5 years |
| Product series | HSE |
| Status signals | AC OK relay contact, DC OK relay contact |
| Overload characteristics | Constant current limiting |
| Depth | 115 mm |
| Height | 130 mm |
| Width | 200 mm |
| Input voltage range (VAC) | 110/230 V |
| Output current | 13.3 A |
| Power | 480 W |
| Efficiency | 91.00% |
Data sheets
