About the product

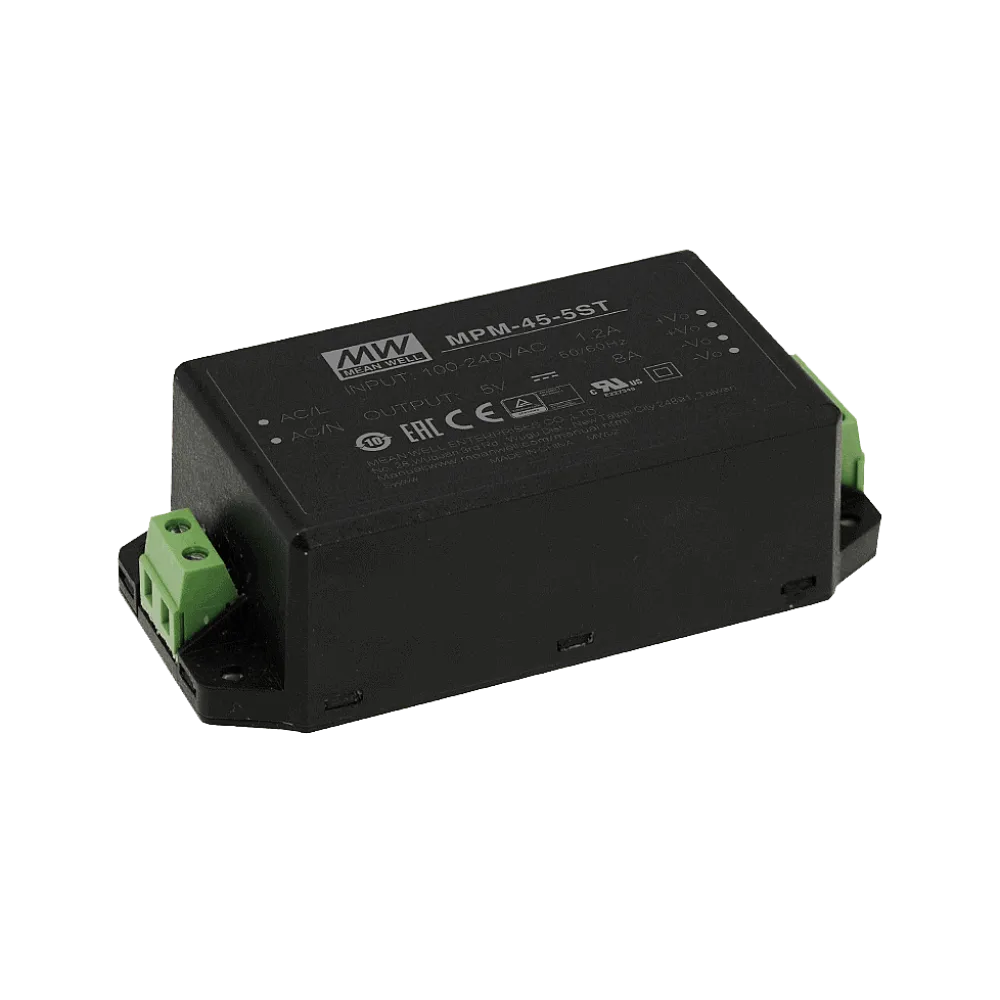

MPM-45 is an high density and small size AC/DC encapsulated type medical grade on board power supply series
Technical data
- Input voltage range 80 bis 264Vac
- No load power consumption 0.1W
- Extremely low leakage current (100µA)
- Class II unit without FG
- Wide operating temp. range -30 to +80°C
- 2x MOPP isolation
- Suitable for BF application with appropriate system consideration
- Operating altitude 4000 meters
- Medical safety approved according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Dimension 109 x 52 x 33.5mm (L x W x H)
- 3 years warranty
Product specifications
| Output voltage (VDC) | 15 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Application | Household, Medical |
| Height | 33.5 mm |
| Width | 52 mm |
| Length | 109 mm |
| Protection class | Class II |
| Input voltage range (VAC) | 80-264 V |
| Power | 45 W |
| Efficiency | 92.00% |
