About the product

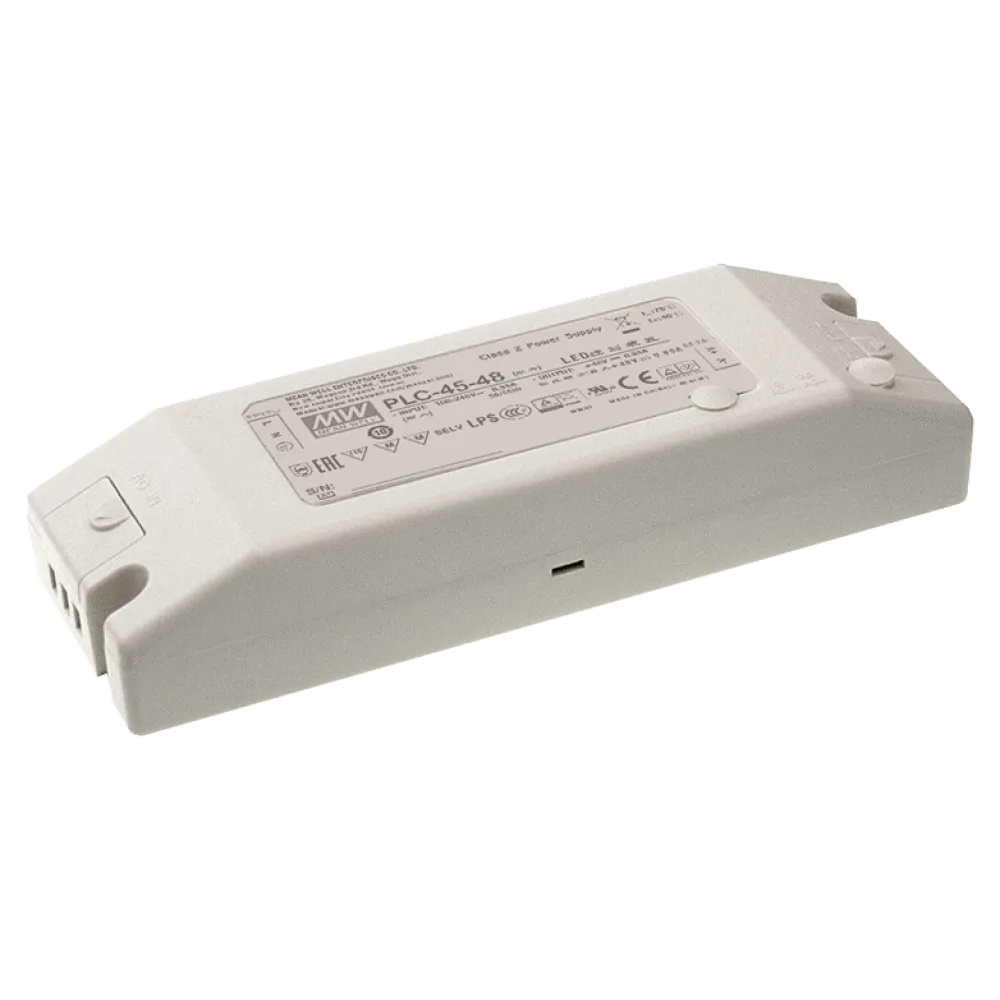

45W LED Driver CV+CC 12V/3.8A
Technical data
- Universal AC input 90 to 305Vac
- Easy installation with screw terminal block
- CC/CV circuit for constant voltage and constant current applications
- Class II power unit, without FG
- Dimension 181.5 x 62 x 35mm (L x W x H)
- 2 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 2 years |
| Product series | PLC |
| Input voltage range (VAC) | 100-240 V |
| Additional functions | Current/voltage setting on unit |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 35 mm |
| Width | 62 mm |
| Length | 181.5 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 3.8 A |
| Power | 45 W |
| Manufacturer | MEAN WELL |
